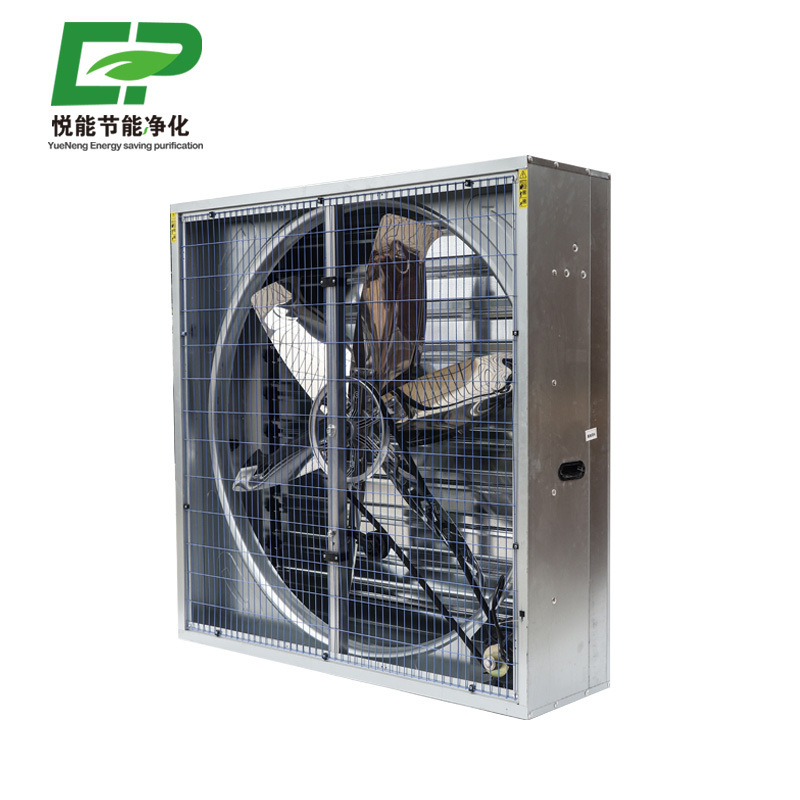

The blade is made by stamping and shaping at one time. It is attractive and durable and the special blade shape design ensures the large air quantity and no deformation.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yueneng
-
Model Number:
-
YNH-1000
-
Voltage:
-
220V, 380V
-
Brand:
-
Yueneng
-
Motor wire:
-
fully copper wire
-
Power:
-
550W
-
Blade diameter:
-
36 inch
-
Blade material:
-
Stainless steel
-
Blade speed:
-
610 rmp
-
Air flow:
-
30000m3/h
-
Installation:
-
Wall Mounted
-
Application:
-
greenhouse/poultry farm
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Food & Beverage Shops
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yueneng
-
Model Number:
-
YNH-1000
-
Voltage:
-
220V, 380V
-
Brand:
-
Yueneng
-
Motor wire:
-
fully copper wire
-
Power:
-
550W
-
Blade diameter:
-
36 inch
-
Blade material:
-
Stainless steel
-
Blade speed:
-
610 rmp
-
Air flow:
-
30000m3/h
-
Installation:
-
Wall Mounted
-
Application:
-
greenhouse/poultry farm
Product Describtion
1. Product Specification
|
Model
|
YNH-800
(29")
|
YNH-900
(30")
|
YNH-1000
(36")
|
YNH-1100
(40")
|
YNH-1220
(44")
|
YNH-1380
(50")
|
YNH-1530
(56")
|
|
Balde Diameter
|
710mm
|
750mm
|
900mm
|
1000mm
|
1100mm
|
1250mm
|
1400mm
|
|
Balde Speed
|
660r/min
|
630r/min
|
610r/min
|
600r/min
|
460r/min
|
439r/min
|
325r/min
|
|
Motor Speed
|
1400r/min
|
1400r/min
|
1400r/min
|
1400r/min
|
1400r/min
|
1400r/min
|
1400r/min
|
|
Air Volume
|
22000m3/h
|
28000m3/h
|
30000m3/h
|
32500m3/h
|
38000m3/h
|
44000m3/h
|
55800m3/h
|
|
Total Pressure
|
60Pa
|
65Pa
|
70Pa
|
70Pa
|
73Pa
|
56Pa
|
60Pa
|
|
Noise
|
≤60dB
|
≤65dB
|
≤70dB
|
≤70dB
|
≤70dB
|
≤70dB
|
≤70dB
|
|
Input Power
|
370W
|
550W
|
550W
|
750W
|
750W
|
1100W
|
1500W
|
|
Height
|
800mm
|
900mm
|
1000mm
|
1100mm
|
1220mm
|
1380mm
|
1530mm
|
|
Width
|
800mm
|
900mm
|
1000mm
|
1100mm
|
1220mm
|
1380mm
|
1530mm
|
|
Thickness
|
380mm
|
380mm
|
380mm
|
380mm
|
380mm
|
380mm
|
380mm
|
Blade
Motor
The motor is optional: China domestic brand motor and SIEMENS motor. Its durable, strong power, low noise, IP 55 motor protection grade and F class insulation level.
Plastic Handle
In order to facilitate transport, a concave plastic handle is designed on both sides of fan fuselage, it is greatly improve the transportation efficiency. It has beautiful appearance and it is reasonable for design and easy to damage, cannot hurt hands.
Aluminum Wheel
The aluminum wheel and blade angle are made of aluminum magnesium alloy, which has light weight, good toughness, and are not easy to damage.
Heavy Hammer
Adopt high strength nylon heavy hammer or metal lifting hammer to open louver device, the louver open and close flexibly and stably.
Fan Bearing
The bearing adopts the imported Swiss SKF bearing, which has high strength and long service life.
1.For the frame, the material is optional: galvanized sheet, aluminum galvanized sheet, 201 stainless steel and 304 stainless.
2.The equipment is composed of wind blade, motor, frame, protective nets, shutters and other components. Moto -driven fan generates airflow.
3. The shutter can open automatically after power on, when powered off, the shutters closed automatically. It can prevent outdoor
dust, foreign matter and etc. from entering, and can also avoid the effects of rain and download.
3. The shutter can open automatically after power on, when powered off, the shutters closed automatically. It can prevent outdoor
dust, foreign matter and etc. from entering, and can also avoid the effects of rain and download.
Advantages
FAQ
Q:Is your company a manufacturer or a trading company?
A:We are manufacturers, we have our own factory and design, sales team.
Q:Can you make our own brand?
A:Yes,we can provide OEM &ODM service. And we can make your brand on the products.
Q:What kind of voltage can you make, can you customize the voltage?
A:For exhaust fans and air coolers, the standard voltage we produce is 3 phase 380V 50Hz, or 1 phase 220V 50Hz, the input power is depends on the type of product. We can customize the voltage and frequency of the motor according to your requirements.
Q:What is your minimum order quantity?
A:Usually,MOQ of exhaust fan and air cooler is 10 sets, MOQ of cooling pad is one 20’ container. Small quantity we also can do ,but the cost will be high.
Q:Can I have a sample to test before ordering in large quantities?
A:Yes,of course. We can offer 1 set sample for evaluation and testing.
