Quick Details
-
Place of Origin:
-
Shandong, China
-
Product Name:
-
IMO Certified 20ft ISO Tank Container for sale
-
Keyword:
-
tank container, IMO, 20ft
-
Application:
-
food-grade products, powders, liquids and chemicals in bulk
-
Material:
-
stainless steel
-
Certification:
-
IMO
-
Standard:
-
ISO9001 Standard
-
MOQ:
-
1 Unit
-
Condition:
-
brand new, used
-
TARE WEIGHT (KGS):
-
3650-4050 kgs
-
Port:
-
Any port in China
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
21-27 CBM
-
External Dimensions(l x W x H)(mm):
-
6058x2438x2591mm
-
Place of Origin:
-
Shandong, China
-
Product Name:
-
IMO Certified 20ft ISO Tank Container for sale
-
Keyword:
-
tank container, IMO, 20ft
-
Application:
-
food-grade products, powders, liquids and chemicals in bulk
-
Material:
-
stainless steel
-
Certification:
-
IMO
-
Standard:
-
ISO9001 Standard
-
MOQ:
-
1 Unit
-
Condition:
-
brand new, used
-
TARE WEIGHT (KGS):
-
3650-4050 kgs
-
Port:
-
Any port in China
IMO Certified 20ft ISO Tank Container for sale
Tank containers are exclusively used for storage and transport of food-grade products, powders, liquids and chemicals in bulk. Tank containers are equipped with a steel frame and the tanks in the frame are made of stainless steel. All tank containers have an IMO certification which indicates what liquids can be stored or transported within the container.
RAYFORE mostly offers 20FT tank containers. 20FT is the most common dimension for tank containers. In general, these 20FT tanks have a capacity of 14,000 to 27,000 liters. Both new and secondhand tank containers are cleaned and meet all the safety requirements. RAYFORE ensures that all tank containers are thoroughly checked before they are delivered.
ISO tanks are equipped to transport the following:
Liquids
Gasses
Powders
Chemicals
Perishable and non-perishable food items
Alcohol
Non-alcoholic liquids
If you’re a shipper, make sure you invest in a tank container that’s classified by the International Maritime Dangerous Good Code (IMO). This classification helps to identify and separate dangerous goods from other kinds of cargo. Check out this blog to learn all about IMO types for tank containers.
Safety and efficiency are synonymous with ISO tank containers. Apart from the fact that tanks can ship a considerable amount of bulk effortlessly, they’re also extremely durable. A tank container is designed to have a long life span, typically around 20 to 35 years. So you can use tank containers over and over again, giving you great value for money in the long run!
Types of ISO tank containers
Before you go ahead and buy or lease tanks, you should know that there are specific tanks for specific types of cargo. The chart below shows the different tanks and what they can transport and store safely.
|
Container type |
Ideal usage |
|
T1 ISO tank container |
Wine and light liquids |
|
T4 ISO tank container |
Non-hazardous edible and non-edible oils |
|
T11 ISO tank container |
Non-hazardous chemicals |
|
T14 ISO tank container |
Hazardous chemicals and acids like HCI and zinc chloride |
|
T50 ISO tank container |
Gasses such as LPG and ammonia |
|
T75 ISO tank container |
Cryogenic gasses |
|
Rubber-lined ISO tank container |
Acid-based chemicals |
|
Food-grade tank |
Only loaded with food grade products |
|
Reefer tank |
Ideal for food and chemicals |
|
Gas tank |
Suitable for the transport of gasses |
|
Silo |
Suitable for transport of grains and powders |
|
SWAP container tank |
Transport of cargo between 26,000 and 35,000 metric tons, 25,600 and 31,500 long tons and 28,700 and 35,000 short tons |
|
SWAP body tank |
This container type is bigger than its frame, ideal for lightweight cargo and storage use |
Dimensions of ISO tank containers
A tank container made according to ISO standards will always be fit for intermodal transportation. These containers also come in 20ft, 40ft, and 45ft varieties. But when it comes to tank containers, you need to prioritize capacity. Here’s a table with the measurements and capacities.
|
Capacity |
Gross Weight |
Tare Weight |
Payload |
Max. Cargo Temp. |
Test Pressure |
Working Pressure |
|
21,000l |
36,000kg |
3,650kg |
32,350kg |
120°C |
6.00 BAR |
4.00 BAR |
|
24,000l |
36,000kg |
3,900kg |
32,100kg |
120°C |
6.00 BAR |
4.00 BAR |
|
25,000l |
36,000kg |
3,730kg |
32,270kg |
130°C |
6.00 BAR |
4.00 BAR |
|
26,000l |
36,000kg |
4,060kg |
31,940kg |
130°C |
6.00 BAR |
4.00 BAR |
Never overfill or underfill a tank container
It’s important to note that a tank container should never be overfilled or underfilled.
ISO tanks should be at least 80% full at all times. This will avoid a surge during transit.
Similarly, always make sure that your tanks are less than 95% full. This allows for thermal expansion.
Benefits of ISO tank containers
There are also many advantages to using an ISO tank container. Let’s look at a few of them now:
* ISO tank containers are internationally approved, and come with a quality assurance.
* They can store much more than drummed shipments, and the cost of shipping is significantly less.
* ISO tank containers are environment-friendly. They’re designed to combat product spillage and leakage, especially during long journeys.
* They save fuel and reduce carbon dioxide emissions by up to 70 percent.
* ISO tanks can withstand harsh weather conditions.
* They’re easy to load and unload

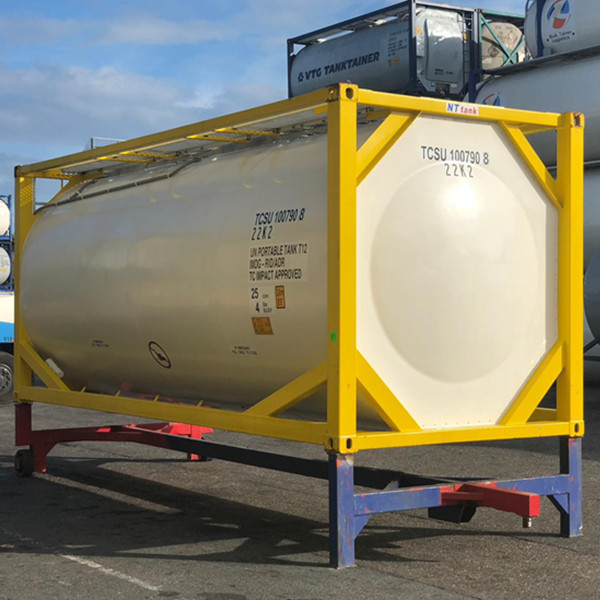

IMO Certified 20ft ISO Tank Container ref pictures
