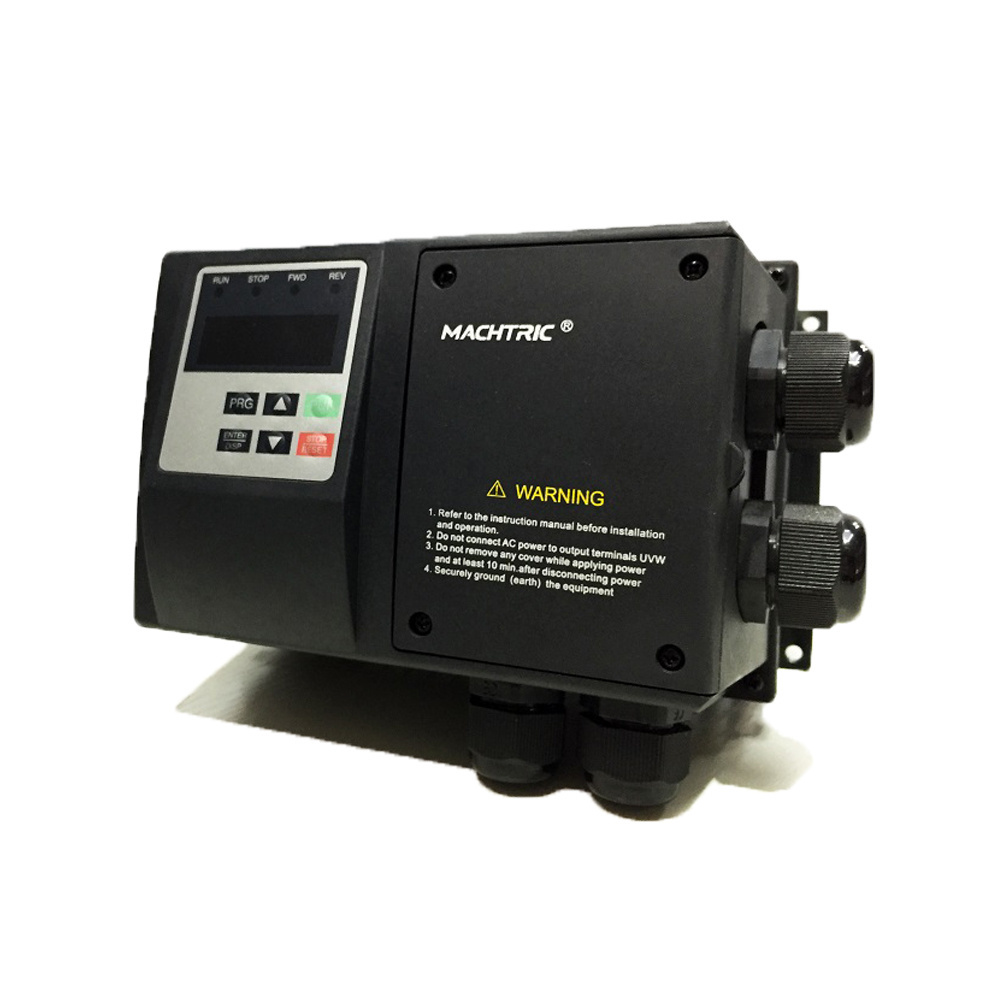

Model

S2100S

Input

Rated voltage,Frequency

3 AC 380V / 220V;  50-60 Hz

Voltage Range

380V: 330V-440V;220V: 170-240V

Output

Voltage Range

380 V: 0-380 V; 220V: 0-220V

Frequency Range

0.10-400.0 Hz

Control method

V/F control, Space vector control

Indication

Operating status/ Alarm definiton/ interactive guidance; Eg, frequency setting, the output frequecy/ current, DC bus voltage, the temperature and so on.

Control Specification

Output Frequency Range

0.10-400.00 Hz.

Frequency Setting Resolution

Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency

Output Frequency Accuracy

0.01 Hz.

V/F Control

Setting V/F curve to satisfy various load requirements

Torque Control

Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0-20% of raising torque

Multifunctional Input Terminal

8 multi-function input terminals,realizing functions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions

Multifunctional Output Terminal

3 multi-function output terminals for displaying of running, zerospeed, counter, external abnormity, program operation and other information and warnings

8 multifunctional output terminals, 1 inverter can control 4 circular variable frequency pumps

Acceleration/deceleration Time Setting

0-6000 s acceleration/deceleration time can be set individually

Other functions

PID Control

Built-in PID control

RS485

Standard RS485 communication function (MODBUS)

Frequency Setting

Analog input 0-10V, 0-20mA, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN

Multi-speed

Eight multi-function input terminals,15 section speed can be set

Automatic voltage regulation

Automatic voltage regulation function can be selected

Counter

Built-in 2 group of counters

Overload

120%, 60second (variable torque)

Over Voltage

Over voltage protection can be set

Under Voltage

Under voltage protection can be set

Other Protections

Overheat, output short-circuit, over current, and parameter lock and so on.

Environment

Ambient Temperature

–10℃-40℃(non-freezing)

Ambient Humidity

Max. 95% (non-condensing)

Altitude

Lower than 1000m.

Vibration

Max. 0.5 g

Structure

Cooling Mode

Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling

Protective Structure

IP 65
