pipelayer
-
Delivery time:
-
Within 15days
-
Origin:
-
china Original
-
Engine type:
-
Single Cylinder
-
MOQ:
-
1PC
-
Color:
-
Customers Requirements
-
Location:
-
hefei
-
certification:
-
CE/ISO9001
-
Operator type:
-
Driver
Quick Details
-
Weight (KG):
-
450000
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
H&L
-
Product name:
-
pipelayer
-
Delivery time:
-
Within 15days
-
Origin:
-
china Original
-
Engine type:
-
Single Cylinder
-
MOQ:
-
1PC
-
Color:
-
Customers Requirements
-
Location:
-
hefei
-
certification:
-
CE/ISO9001
-
Operator type:
-
Driver
Product Description
Easy maintenances
● The structural parts inherit the excellent and stable quality of Shantui mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high
reliability.
● The structural parts inherit the excellent and stable quality of Shantui mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high
reliability.
Operating performance
● The control of working device is composed of the luffing control, lifting control, and counterweight control. The reducing type
pilot control valve is applied to control the hydraulic reversing valve, featuring simple controls, high flexibility and
labor-saving, good fine adjustment performance, and easy arrangement on machine body.
● The hook and boom controls are integrated in one joystick and the counterweight is controlled by one separate joystick to
operate under diversified working conditions conveniently and rapidly, achieve good inching performance, and guarantee the user’s
accuracy requirement and promote the operating efficiency.
● The hydraulic motors of hook and boom winches incorporate extremely high volumetric efficiency and the excellent balance valves
eliminate the secondary gliding of winches and the jitter of unloaded hook. In addition, the clutch incorporated in the hook winch realizes the free hook lowering function.
● The control of working device is composed of the luffing control, lifting control, and counterweight control. The reducing type
pilot control valve is applied to control the hydraulic reversing valve, featuring simple controls, high flexibility and
labor-saving, good fine adjustment performance, and easy arrangement on machine body.
● The hook and boom controls are integrated in one joystick and the counterweight is controlled by one separate joystick to
operate under diversified working conditions conveniently and rapidly, achieve good inching performance, and guarantee the user’s
accuracy requirement and promote the operating efficiency.
● The hydraulic motors of hook and boom winches incorporate extremely high volumetric efficiency and the excellent balance valves
eliminate the secondary gliding of winches and the jitter of unloaded hook. In addition, the clutch incorporated in the hook winch realizes the free hook lowering function.
Working adaptability
● Excellent chassis stability, low average fuel consumption, and high economy.
● Extensive working scope of boom and fast lifting/lowering speed of hook.
● Powerful loaded traveling, high lifting capacity, and high working efficiency.
● The hook, boom, and counterweight can realize stepless speed control and combination motions.
● Both hook and boom winches adopt three-stage planetary gears for speed reduction and torque enhancement, featuring high safety
coefficient and high mechanical efficiency.
● The machine is installed with moment limiter system to real-time monitor the operating status and guarantee the lifting safety.
● Excellent chassis stability, low average fuel consumption, and high economy.
● Extensive working scope of boom and fast lifting/lowering speed of hook.
● Powerful loaded traveling, high lifting capacity, and high working efficiency.
● The hook, boom, and counterweight can realize stepless speed control and combination motions.
● Both hook and boom winches adopt three-stage planetary gears for speed reduction and torque enhancement, featuring high safety
coefficient and high mechanical efficiency.
● The machine is installed with moment limiter system to real-time monitor the operating status and guarantee the lifting safety.
|
Product
|

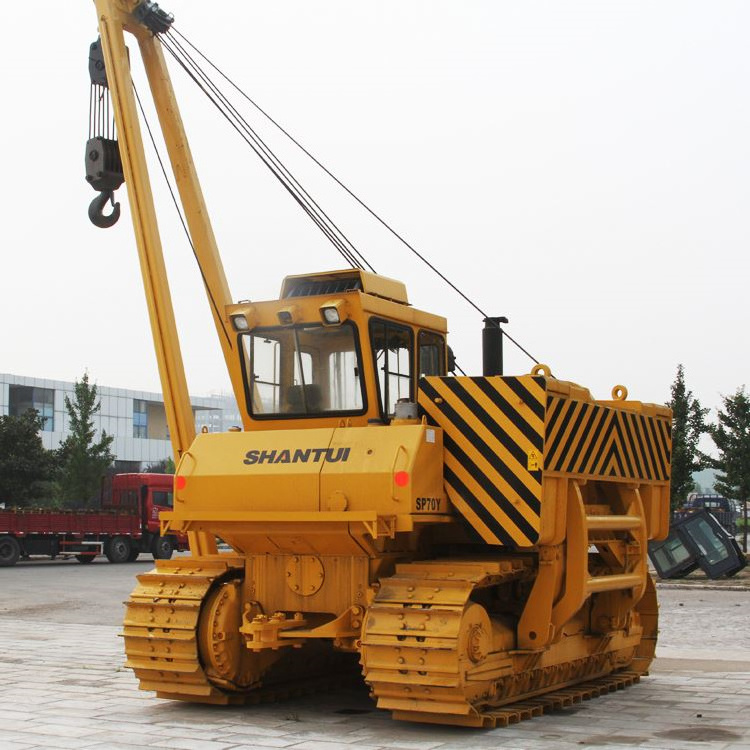

SP70Y
|
|
Performance parameters
|
|
|
Operating weight (Kg)
|
47500
|
|
Maximum lifting capacity（T)
|
70
|
|
Rated power of engine（kw/hp）
|
257
|
|
Minimum turning radius (mm)
|
3950
|
|
Ground pressure (Mpa)
|
0.086
|
|
Engine
|
|
|
Engine model
|
NTA855-C360S10
|
|
Number of cylinders× cylinder diameter× stroke（mm×mm）
|
6-139.7x152.4
|
|
Rated power/rated speed (kw/rpm)
|
257/2000
|
|
Maximum torque (N.m/r/min)
|
1509/1400
|
|
Overall dimensions of machine
|
|
|
Length (mm)
|
5560
|
|
Width (mm)
|
3940
|
|
Height (mm)
|
3395
|
|
Driving performance
|
|
|
Forward gear 1/Reverse gear 1 (km/h)
|
0-3.7/0-4.5
|
|
Forward gear 2/Reverse gear 2 (km/h)
|
0-6.8/0-8.2
|
|
Forward gear 3/Reverse gear 3 (km/h)
|
0-11.5/0-13.5
|
|
Traveling system
|
|
|
Hydraulic torque converter
|
Three-element single-stage and single phase
|
|
Transmission
|
Planetary gear, multi-plate clutch, and hydraulic + forced lubrication type
|
|
Main drive
|
Spiral bevel gear, one-stage deceleration and splash lubrication
|
|
Steering clutch
|
Wet type, multi-plate spring applied, hydraulically released, and manually-hydraulically operated
|
|
Steering brake
|
Wet type, floating belt type, and hydraulically assisted
|
|
Final drive
|
Two-stage straight gear reducer and splash lubrication
|
|
Chassis System
|
|
|
Suspension mode
|
Rigid crossbeam structure
|
|
Center distance of track (mm)
|
2380
|
|
Width of track shoes (mm)
|
760
|
|
Ground length (mm)
|
3620
|
|
Number of track shoes (One-sided/piece)
|
45
|
|
Chain track pitch(mm)
|
228
|
|
Number of carrier rollers (One-sided)
|
2
|
|
Number of track rollers (One-sided)
|
9
|
|
Working hydraulic system
|
|
|
Working pump
|
Fixed displacement gear pump, with maximum displacement at 201.5ml/r
|
|
Pilot pump
|
Fixed displacement gear pump, with maximum displacement at 10ml/r
|
|
Operating valve
|
Proportion multi-way valve
|
|
Counterweight cylinder bore(mm)
|
φ125
|
|
Tank capacity
|
|
|
Fuel tank (L)
|
550
|
|
Working hydraulic oil tank (L)
|
400
|
|
Working device
|
|
|
Maximum lifting height(mm)
|
6550
|
|
Hook lifting speed m/min
|
0～6.5
|
|
Boom length (m)
|
7.3 (Optional 9.0)
|
