Material:
Steel wooden drum (fumigation) Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RMjT
-
Model Number:
-
RVV AVVR
-
Product name:
-
copper flexible cable
-
Core:
-
Multi-core
-
Jacket:
-
PVC Sheathed
-
Rated Voltage:
-
300/300V, 300/500V, 450/750V
-
Color:
-
White Black
-
Standard:
-
ASTM IEC NEC
-
Conductor:
-
Most oxygen-free pure copper; few tinned copper wires
-
Certification:
-
ROHS/CCC/VDE/ISO9001/CE/ISO 14001
-
Insulation:
-
PVC Insulation Cable
-
Keyword:
-
House Wiring Cables
Quick Details
-
Application:
-
Electronic equipment
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RMjT
-
Model Number:
-
RVV AVVR
-
Product name:
-
copper flexible cable
-
Core:
-
Multi-core
-
Jacket:
-
PVC Sheathed
-
Rated Voltage:
-
300/300V, 300/500V, 450/750V
-
Color:
-
White Black
-
Standard:
-
ASTM IEC NEC
-
Conductor:
-
Most oxygen-free pure copper; few tinned copper wires
-
Certification:
-
ROHS/CCC/VDE/ISO9001/CE/ISO 14001
-
Insulation:
-
PVC Insulation Cable
-
Keyword:
-
House Wiring Cables
Product Description

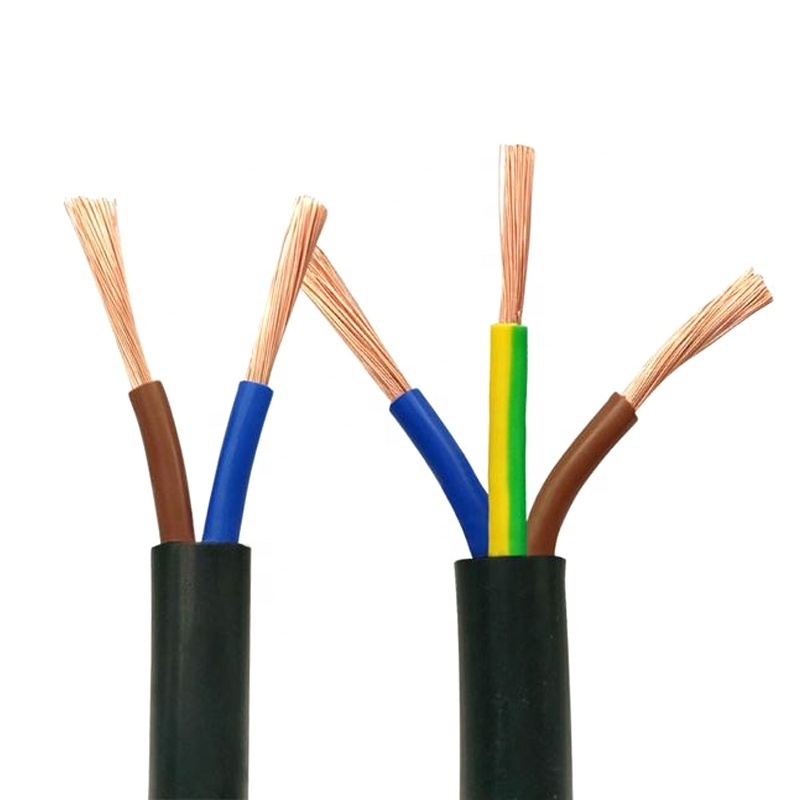

Electrical Wire 14/2 Copper Flexible 2Core Two Core 4mm Wire Electric Wire Cable
|
Product name
|
RVV, Copper PVC insulated PVC sheathed flexible cable
|
|
Executive standard
|
GB/T5023.5-2008; GB 5023-1997; IEC 60227-1997;
|
|
Conductor
|
Oxygen-free pure copper mostly; a few tinned copper wires
|
|
Insulation
|
PVC
|
|
Sheath
|
PVC / WDZ / NH / ZR
|
|
Color
|
Black / White / Custom
|
|
Specifications
|
0.5 square - 6 square ( 2 cores - 24 cores )
|
|
Number of cores
|
Multi-core; more than two cores twisted into cables ( including ordinary, flame-retardant, low-smoke, halogen-free, fire-resistant, cross-linked )
|
|
Rated voltage
|
400/750V, 300/500V, 300/300V
|
|
Burn test
|
Passed GB/T18380 flame retardant test
|
|
Rated temperature
|
70°C
|
|
Environmental testing
|
Comply with EU RoHS environmental protection directive, and passed the test by SGS
|
|
Packing meters
|
Generally 200 or 300 meters/roll
|
|
Features
|
1.
Acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, environmental protection and other characteristics;
2.
Uniform insulation thickness, easy to peel and cut;
3.
Good flame retardancy and cold resistance;
4.
Excellent insulation mechanical properties, bright colors and easy installation;
|
|
Application
|
1.
It is suitable for power devices, fixed wiring and flexible connection electrical appliances with rated voltages of 450/750V and below;
2.
Household electrical wires; power cords;
3.
Special power cords for building intercom systems and monitoring;
4.
Transmission lines for machine tool manufacturing, instrumentation, household appliances, lighting equipment, power stations, etc.;
|
Product Technical Parameters
RVV Specification Core Number
2 × 0.50 / 3 × 0.50 / 4 × 0.50 / 5 × 0.50 / 6 × 0.50 / 7 × 0.50 / 8 × 0.50 / 10 × 0.50 / 12 × 0.50 / 18 × 0.50 / 25 × 0.50 / 36 × 0.50.
2 × 0.75 / 3 × 0.75 / 4 × 0.75 / 5 × 0.75 / 6 × 0.75 / 7 × 0.75 / 8 × 0.75 / 10 × 0.75 / 12 × 0.75 / 18 × 0.75 / 25 × 0.75 / 36 × 0.75.
2 × 1.0 / 3 × 1.0 / 4 × 1.0 / 5 × 1.0 / 6 × 1.0 / 7 × 1.0 / 8 × 1.0 / 10 × 1.0 / 12 × 1.0 / 18 × 1.0 / 25 × 1.0 / 36 ×1.0.
2 × 1.5 / 3 × 1.5 / 4 × 1.5 / 5 × 1.5 / 6 × 1.5 / 7 × 1.5 / 8 × 1.5 / 10 × 1.5 / 12 × 1.5 / 18 × 1.5 / 25 × 1.5 / 36 × 1.5.
2× 2.5 / 3 × 2.5 / 4 × 2.5 / 5 × 2.5 / 6 × 2.5 / 7 × 2.5 / 8 × 2.5 / 10 × 2.5 / 12 × 2.5 / 18 × 2.5 / 25 × 2.5 / 36 × 2.5.
2 × 4.0 / 3 × 4.0 / 4 × 4.0 / 5 × 4.0 / 7 × 4.0.
2 × 6.0 / 3 × 6.0 / 4 × 6.0 / 5 × 6.0 / 7 × 6.0.
2 × 10.0 / 3 × 10.0 / 4 × 10.0 / 5 ×10.0.
3 × 16.0 / 4 × 16.0 / 5 × 16.0.
4 × 25.0 / 5 × 25.0.
4 × 36.0 / 5 × 36.0.
|
Number of cores × standard cross-section
mm
|
Specification
|
Insulation thickness specified value
mm
|
Sheath thickness specified value
mm
|
Conductor resistance Ω / km is not greater than 20 ℃
|
|
|
|
|
|
|
|
Copper
|
Galvanized copper
|
|
|
2×0.5
|
16/0.20
|
0.5
|
0.6
|
39
|
40.1
|
|
|
2X0.75
|
24/0.20
|
0.6
|
0.8
|
26
|
26.7
|
|
|
2X1
|
32/0.20
|
0.6
|
0.8
|
19.5
|
20
|
|
|
2X1.5
|
30/0.25
|
0.7
|
0.8
|
13.3
|
13.7
|
|
|
2X2.5
|
49/0.25
|
0.8
|
1
|
7.98
|
8.21
|
|
|
3×0.5
|
16/0.20
|
0.6
|
0.6
|
39
|
40.1
|
|
|
3X0.75
|
24/0.20
|
0.6
|
0.8
|
26
|
26.7
|
|
|
3X1
|
32/0.20
|
0.6
|
0.8
|
19.5
|
20
|
|
|
3X1.5
|
30/0.25
|
0.7
|
0.9
|
13.3
|
13.7
|
|
|
3X2.5
|
49/0.25
|
0.8
|
1.1
|
7.98
|
8.21
|
|
|
4X0.75
|
24/0.20
|
0.6
|
0.8
|
26
|
26.7
|
|
|
4X1
|
32/0.20
|
0.6
|
0.9
|
19.5
|
20
|
|
|
4X1.5
|
30/0.25
|
0.7
|
1
|
13.3
|
13.7
|
|
|
4X2.5
|
49/0.25
|
0.8
|
1.1
|
7.98
|
8.21
|
|
|
5X0.75
|
24/0.20
|
0.6
|
0.9
|
26
|
26.7
|
|
|
5X1
|
32/0.20
|
0.6
|
0.9
|
19.5
|
20
|
|
|
5X1.5
|
30/0.25
|
0.7
|
1.1
|
13.3
|
13.7
|
|
|
5X2.5
|
49/0.25
|
0.8
|
1.2
|
7.98
|
8.21
|
|
Notice
In addition, we have other models and sizes, please contact us if you need, thank you
.
