[Usage] :
It is used for high temperature treatment and graphitization of
carbon structural parts (products), C/C composite
products, carbon fiber products, sintering graphitization of carbon fiber filament
and other materials that can be sintered and
melted in carbon environment.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Weight (T):
-
2 T
-
Power (kW):
-
160
-
Application:
-
Lab Equipment
-
Function:
-
Eco-friendly
Quick Details
-
Place of Origin:
-
Hunan, China
-
Marketing Type:
-
Normal Product
-
Brand Name:
-
OEM
-
Voltage:
-
380V
-
Weight (T):
-
2 T
-
Power (kW):
-
160
-
Application:
-
Lab Equipment
-
Function:
-
Eco-friendly
Products Description
[Usage] :It is used for high temperature treatment and graphitization of carbon structural parts (products), C/C composite
products, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and
melted in carbon environment.
products, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and
melted in carbon environment.

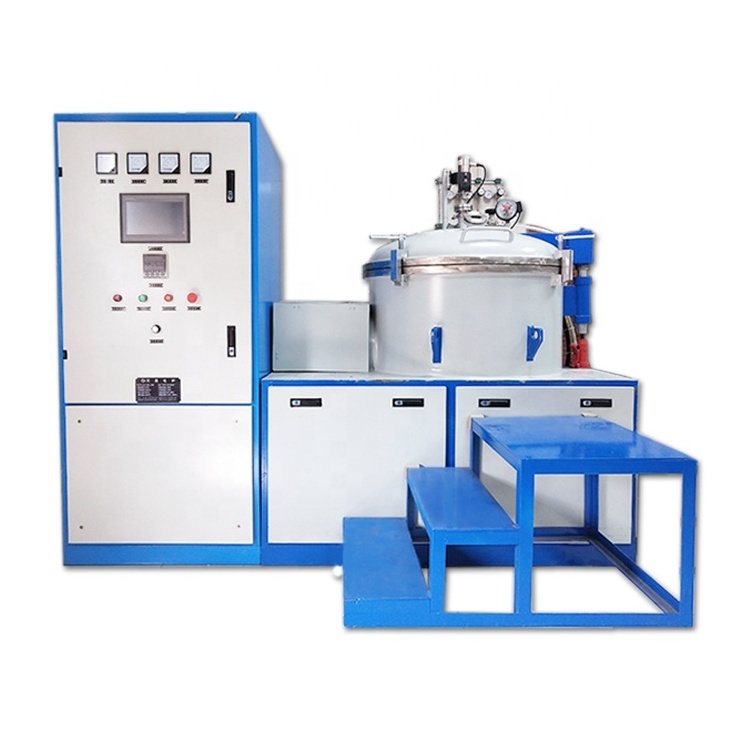

Experimental graphitization furnace
Features
(1) Can reach 3200℃, the common temperature of 3000℃ high temperature furnace body, to
meet the sintering and graphitization of various materials.
(2) Using digital display intelligent temperature control system, automatic, high precision temperature measurement and
temperature control process, the system can be heated according to the given temperature curve, and can store a total of 40 200 sections of different process heating curve.
(3) Adopt internal circulation pure water cooling system, digital flow monitoring system;
(4) Comprehensive PLC water, electricity, gas automatic control and protection system.
meet the sintering and graphitization of various materials.
(2) Using digital display intelligent temperature control system, automatic, high precision temperature measurement and
temperature control process, the system can be heated according to the given temperature curve, and can store a total of 40 200 sections of different process heating curve.
(3) Adopt internal circulation pure water cooling system, digital flow monitoring system;
(4) Comprehensive PLC water, electricity, gas automatic control and protection system.
Product parameter:
|
Ultimate temperature
|
≤3200℃
|
|
The commonly used temperature
|
Normal Temperature -3000℃
|
|
High temperature volume
|
Φ 100*150mm, Φ 200*300mm, Φ 300*500mm
|
|
Working atmosphere in furnace
|
Working atmosphere in furnace
|
|
Temperature uniformity
|
≤±10℃
|
|
Temperature measurement
|
Far infrared optical temperature measurement (double connector automatic switch)
|
|
Temperature measurement accuracy
|
0.2~ 0.75％
|
|
Temperature control
|
Program control and manual control
|
|
Temperature control precision
|
±1℃
|
|
Limiting rate of heating
|
80℃/min Empty furnace, depending on the volume of high temperature zone and furnace structure
|
|
Power Supply
|
IGB control, thyristor control
|
Advantage 1:
Absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology.
Advantage 2:
Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature
degassing, impurity removal, etc.) under vacuum or gas protection.
degassing, impurity removal, etc.) under vacuum or gas protection.
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team、stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Patent for high temperature graphitization furnace:
Patent for high temperature vacuum hot pressure furnace:
Patent for high temperature continuous furifing graphitization furnace:
Patent for carbonization sintering furnace:
Patent for bottom discharge graphitization furnace:
Patent for carbon fiber continuous furnace
Production process
Customer Photos
Our logistics system is all around the world.
Customer Photos
Pre-sale and after-sale service
FAQ
Are you a factory or trading company?
Q:
Are you a factory or trading company?
A:
Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.
Do you have customization or OEM service?
Q:
Do you have customization or OEM service?
?
A:
Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.
What's your advantages?
Q:
What's your advantages
?
A:
Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
