Quick Details
-
Model Number:
-
650nm UV IR Cut Filter
-
Coating:
-
IAD Hard Film
-
Coating region:
-
Single-sided or double-sided
-
Blocking Density:
-
OD2-OD6
-
Materials:
-
B270,JGS1,Quartz Glass,Absorptive Glass
-
Surface Quality:
-
40/20, 60/40, 80/50
-
Thickness:
-
0.3-5.0 mm
-
Tolerance:
-
± 0.10mm
-
Transmittance:
-
>85%
-
Certification:
-
ISO9001,RoHs,EPR
-
Shipment:
-
Express delivery,Air,Sea
-
Use:
-
Camera CCD CMOS
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
Optolong
-
Model Number:
-
650nm UV IR Cut Filter
-
Coating:
-
IAD Hard Film
-
Coating region:
-
Single-sided or double-sided
-
Blocking Density:
-
OD2-OD6
-
Materials:
-
B270,JGS1,Quartz Glass,Absorptive Glass
-
Surface Quality:
-
40/20, 60/40, 80/50
-
Thickness:
-
0.3-5.0 mm
-
Tolerance:
-
± 0.10mm
-
Transmittance:
-
>85%
-
Certification:
-
ISO9001,RoHs,EPR
-
Shipment:
-
Express delivery,Air,Sea
-
Use:
-
Camera CCD CMOS
Product Description

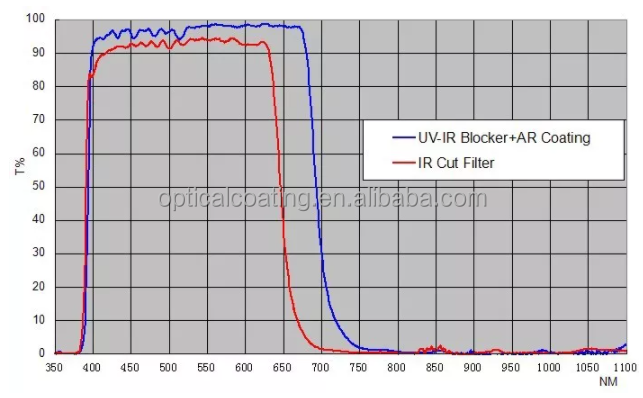

UV IR Cut filters introduce:
Brief Introcuction of UV IR Cut Filters
UV/IR Cut filter is designed for ultraviolet and infrared wavelength blocking to improve sharpness of the image as most of the optics are designed for the visible spectrum, because it’s very difficult to create a lens with the same focal point for the visible and IR spectrum.
Specification
|
Customize
|
|
|
|
Substrates
|
B270, BK7, JGS or
Customize as needed
|
|
|
CWL Range
|
410-650nm ; 410-690nm
|
|
|
CWL accuracy
|
above± 2nm
|
|
|
FWHM
|
30nm-50nm
|
|
|
FWHM accuracy
|
above± 2nm
|
|
|
Blocking range
|
200-380nm & 740-1200nm
|
|
|
Blocking depth
|
OD2-OD6
|
|
|
Diameter(mm)
|
φ3mm~φ50mm
|
|
|
Size(mm)
|
3×3~55×55 mm
|
|
|
Thickness(mm)
|
0.3mm~5mm
|
|
|
Surface/Coating Quality
|
40/20,60/40,80/50
|
|
|
Bandpass transmittance
|
> 90% of the common
|
|
|
Edge Treatment(selectable)
|
Mounted in Black Anodized Aluminum Ring
|
|
