Quick Details
-
Weight (KG):
-
4000
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Soontrue
-
Dimension(L*W*H):
-
8620*2190*1800mm
-
Product name:
-
toilet paper making machine
-
Machine type:
-
Automatic Wrapping Machine
-
Packing speed:
-
16-25 bundles/min
-
Machine Power:
-
16KW
-
Model:
-
ZB300FN
-
Maximum bundle finished Length:
-
690mm
-
Packing film thickness:
-
40-60μm
-
Max.length of bundle bag:
-
900mm
-
Air consuming:
-
0.5~0.7Mpa
Quick Details
-
Function:
-
Wrapping
-
Packaging Type:
-
Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
4000
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Soontrue
-
Dimension(L*W*H):
-
8620*2190*1800mm
-
Product name:
-
toilet paper making machine
-
Machine type:
-
Automatic Wrapping Machine
-
Packing speed:
-
16-25 bundles/min
-
Machine Power:
-
16KW
-
Model:
-
ZB300FN
-
Maximum bundle finished Length:
-
690mm
-
Packing film thickness:
-
40-60μm
-
Max.length of bundle bag:
-
900mm
-
Air consuming:
-
0.5~0.7Mpa
Specification
|
Model
|
|
ZB300F
|
|
|
Bagging size(mm)
|
L
|
90-230
|
|
|
|
W
|
90-150
|
|
|
|
H
|
30-100
|
|
|
Packing speed(bags/min)
|
|
80-100.
|
|
|
Total power(KW)
|
|
10
|
|
|
Overall weight(kg)
|
|
3500
|
|
|
Outer dimension (L*W*H)(mm)
|
|
6100x3200x2000
|
|
|
Heating power(kw))
|
|
3.6
|
|
|
Motor power(kw)
|
|
5.4
|
|
|
Max. packing size (mm)
|
|
230x150x100
|
|
|
Noise
|
|
≤78dB
|
|
|
Suitable packing material
|
|
CPP ,PE, OPP/CPP,PT/PE,KOP/CPP.
|
|
|
Power supply type
|
|
380V/50Hz(if different ,pls specify)
|
|

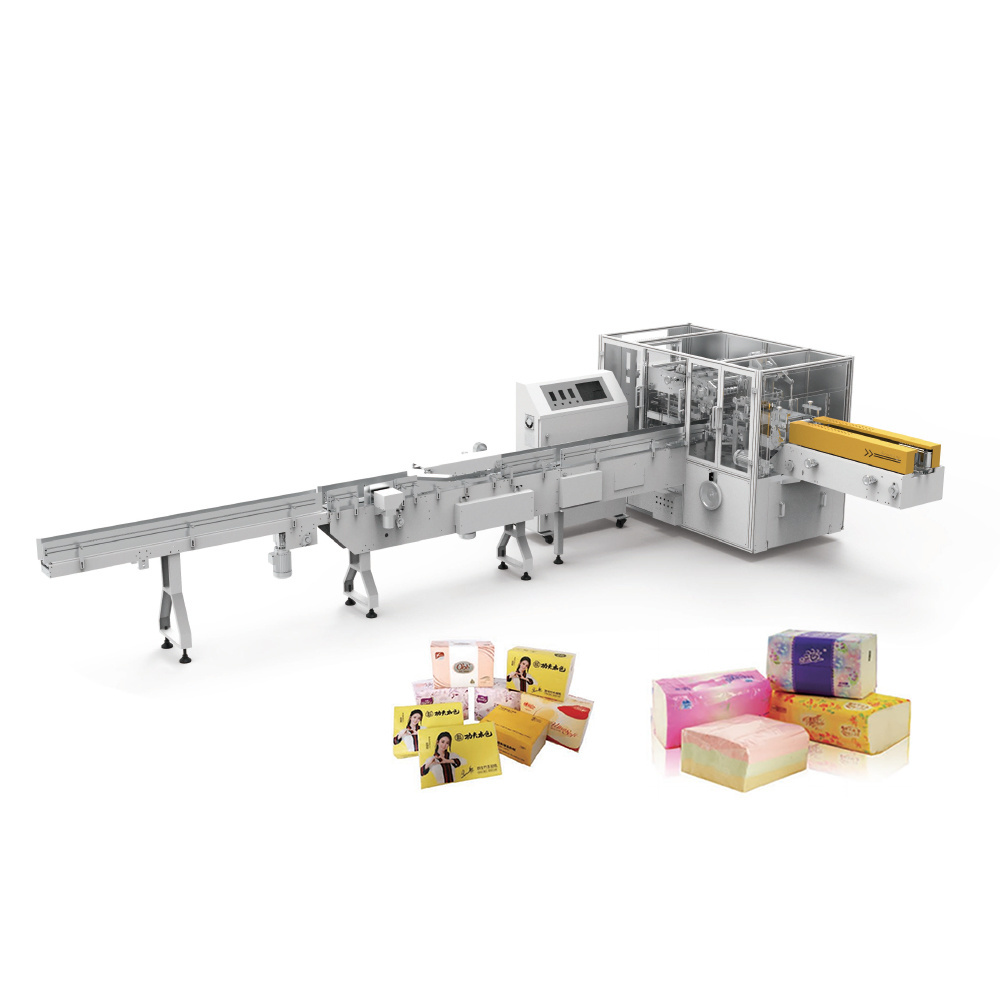

Advantages for the machine:
Adopt packing way by wrapping, hemming and sealing with compact structure suitable for packing regularly square objects, such as non-highly tight tissue and paper box;
Adopt the system of three servo motors and drivers controlling, touching the screen, clearer human-machine interface, easier for maintenance;
Adopt auto-putting conveyor, easy to be connected with automatic production line, saving much laboring cost;
It saves much packing material by the function of photocell checking, servo tracking, and non-material feeding without tissue;
High automatization, high specialization, high efficiency and less trouble;
Various packing sizes may change quickly among different tissue sizes;
Easy for operation , clear working status indication, debugging is convenient and intuitive
The sealing is very tidy without folding fault.
The in-feed conveyor is equipped with tissue tapping device to make the packing effect square.
The machine will stop automatically if the door open ; And the machine will start after 5 seconds after pressing the start button.
The film -sending is controlled by servo motor and the control board. The pattern area is precisely located.
Soontrue
is a professional tissue converting and packing machine manufacturer. Founded in
1993
, with more than
133,500
square meters plant space and more than
2,000
well-trained and knowledgeable staff members, more than 700 of them are middle and senior technicians ; Our annual revenue reaches over USD300 million; with more than
2,000 patents
to make sure our machines leading ahead in the industry.
Soontrue has 4 manufacturing bases which are Shanghai, Foshan, Pinghu, and Chengdu factories, Not satisfied with our achievements in China, over the past few years, we have successfully provided solutions and services for our customers in 160 countries and regions around the world. In China, Soontrue is a famous brand and the machines are widely used in all the big tissue factories, with more than 70% of domestic market share . Innovation,Intelligence, efficiency and service are always what we are striving for, win-win situation with customers is our final goal!
Soontrue has 4 manufacturing bases which are Shanghai, Foshan, Pinghu, and Chengdu factories, Not satisfied with our achievements in China, over the past few years, we have successfully provided solutions and services for our customers in 160 countries and regions around the world. In China, Soontrue is a famous brand and the machines are widely used in all the big tissue factories, with more than 70% of domestic market share . Innovation,Intelligence, efficiency and service are always what we are striving for, win-win situation with customers is our final goal!
FAQ
Q1: Can the same production line produce different tissues
Answer: It depends. For kitchen towel and household tissue, the crafts and materials are different, (the patten engraving depth is different), so patten embossing unit needs different ones.
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our tissue manufacturing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. We can also provide instructional videos to give you step-by-step tutorial if necessary.
Q3: If I buy your tissue making machine, what technical support can I get?
Answer: Whether you buy a toilet paper making machine, a paper napkin making machine, or a facial tissue making machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some customized tissue paper production line, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the best tissue paper making machine you need is ready before shipment.
Q5: How can I find the suitable automatic tissue paper manufacturing machine I need?
Answer: We will fully communicate of the information of your tissue, including the width and diameter of the jumbo roll, pattern type, paper thickness, grammage etc.We have nearly 30 years of experience as a machinery manufacturer and can provide you with similar case videos for your reference.If necessary, we will ask you for samples of your tissue paper and packaging films for testing, in order to find the most suitable and cost-effective solution for you.
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our tissue manufacturing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. We can also provide instructional videos to give you step-by-step tutorial if necessary.
Q3: If I buy your tissue making machine, what technical support can I get?
Answer: Whether you buy a toilet paper making machine, a paper napkin making machine, or a facial tissue making machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some customized tissue paper production line, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the best tissue paper making machine you need is ready before shipment.
Q5: How can I find the suitable automatic tissue paper manufacturing machine I need?
Answer: We will fully communicate of the information of your tissue, including the width and diameter of the jumbo roll, pattern type, paper thickness, grammage etc.We have nearly 30 years of experience as a machinery manufacturer and can provide you with similar case videos for your reference.If necessary, we will ask you for samples of your tissue paper and packaging films for testing, in order to find the most suitable and cost-effective solution for you.
