Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
DH46-C3 RS
-
Dimension(Long * Breadth * High):
-
9325*4320*3990mm
-
Type:
-
Large Crawler Bulldozer
-
Original:
-
China Original
-
Overall weight(kg):
-
56200
-
Rated power/rated speed(kW/rpm):
-
380/1800
-
Machine external dimensions(mm):
-
9325*4320*3990
-
Track center distance(mm):
-
2260
-
Track shoe width(mm):
-
610/660/710
-
Ground contact length(mm):
-
3532
-
Fuel tank capacity(L):
-
880
-
Blade type:
-
ROCK
Quick Details
-
Machine Weight:
-
56000 KG
-
Dozing Capacity:
-
13.7m3
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
DH46-C3 RS
-
Dimension(Long * Breadth * High):
-
9325*4320*3990mm
-
Type:
-
Large Crawler Bulldozer
-
Original:
-
China Original
-
Overall weight(kg):
-
56200
-
Rated power/rated speed(kW/rpm):
-
380/1800
-
Machine external dimensions(mm):
-
9325*4320*3990
-
Track center distance(mm):
-
2260
-
Track shoe width(mm):
-
610/660/710
-
Ground contact length(mm):
-
3532
-
Fuel tank capacity(L):
-
880
-
Blade type:
-
ROCK
Contact Way
Vicky Liu —— Sales Manager
Mobile/Wechat/WhatsApp: +86 178-3902-6625
Email: vicky@richmchn.com
Email: vicky@richmchn.com
Products Description

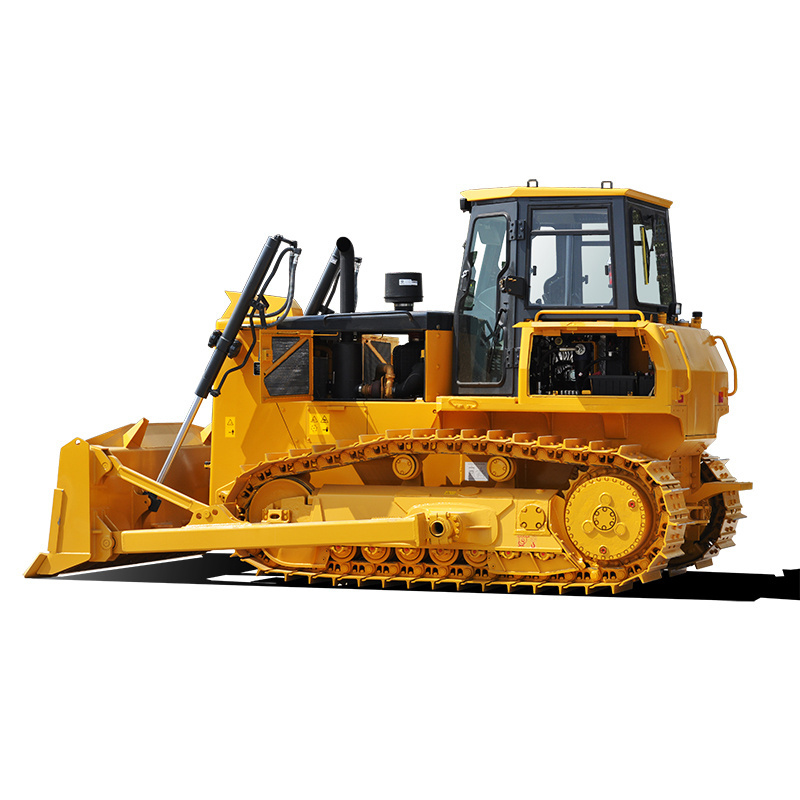

large size 380kw/460hp hydrostatic crawler bulldozer DH46-C3 RS with engine QSX15
1. Power System
The imported Cum-mins QSX15 engine is equipped, featuring reliable quality and strong power. The engine features high thermal efficiency and good fuel economy.
Its ECO mode in combination with the machine reduces the fuel consumption by approximately 15% compared with its Power mode.
proprietary patented power match technology combines with Lin-de’s high-efficiency hydraulic parts to promote the efficiency of machine drive system.
The automatic load-adaptive function, the reverse gear acceleration function, and the pivot steering function further shorten the adjustment time of the machine and improve the comprehensive construction efficiency.
Its ECO mode in combination with the machine reduces the fuel consumption by approximately 15% compared with its Power mode.
proprietary patented power match technology combines with Lin-de’s high-efficiency hydraulic parts to promote the efficiency of machine drive system.
The automatic load-adaptive function, the reverse gear acceleration function, and the pivot steering function further shorten the adjustment time of the machine and improve the comprehensive construction efficiency.
2. Easy maintenance
The tiltable cab can betilted backward for 45° by manual pump to ease the maintenance and services of the pipelines within machine body. The engine air filter, engine oil filter, and the fuel filter are arranged at the positions easy for maintenance.
The fuel filler port and the engine oil dipstick are directed outward.
The grease filling positions for balance beam pins and yokes are directed to outer side of the machine body. Compared with traditional models, the hydro-static drive model reduces the quantity of drive system parts by >70% to remarkably reduce the malfunction points.
The fuel filler port and the engine oil dipstick are directed outward.
The grease filling positions for balance beam pins and yokes are directed to outer side of the machine body. Compared with traditional models, the hydro-static drive model reduces the quantity of drive system parts by >70% to remarkably reduce the malfunction points.
Details Images
Product Paramenters
|
Parameter name
|
DH46-C3 RS
|
|
Performance parameters
|
|
|
Operating weight (Kg)
|
56000
|
|
Ground pressure (kPa)
|
120
|
|
Engine
|
|
|
Engine model
|
QSX 15
|
|
Rated power/rated speed (kW/rpm)
|
380/1800
|
|
Overall dimensions
|
|
|
Overall dimensions of machine (mm)
|
9325*4320*3990
|
|
Driving performance
|
|
|
Forward speed (km/h)
|
F1: 0-11
|
|
Reversing speed (km/h)
|
R1: 0-11
|
|
Chassis System
|
|
|
Center distance of track (mm)
|
2260
|
|
Width of track shoes (mm)
|
610
|
|
Ground length（mm）
|
3532
|
|
Tank capacity
|
|
|
Fuel tank (L)
|
920
|
|
Working device
|
|
|
Blade type
|
Semi-U
|
|
Digging depth (mm)
|
660
|
|
Ripper type
|
Single-shank ripper
|
|
Ripping depth (mm)
|
1245
|
