Quick Details
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
2.3
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZGSM or OEM
-
Model Number:
-
ZGSM-FL07-40S
-
Product Name:
-

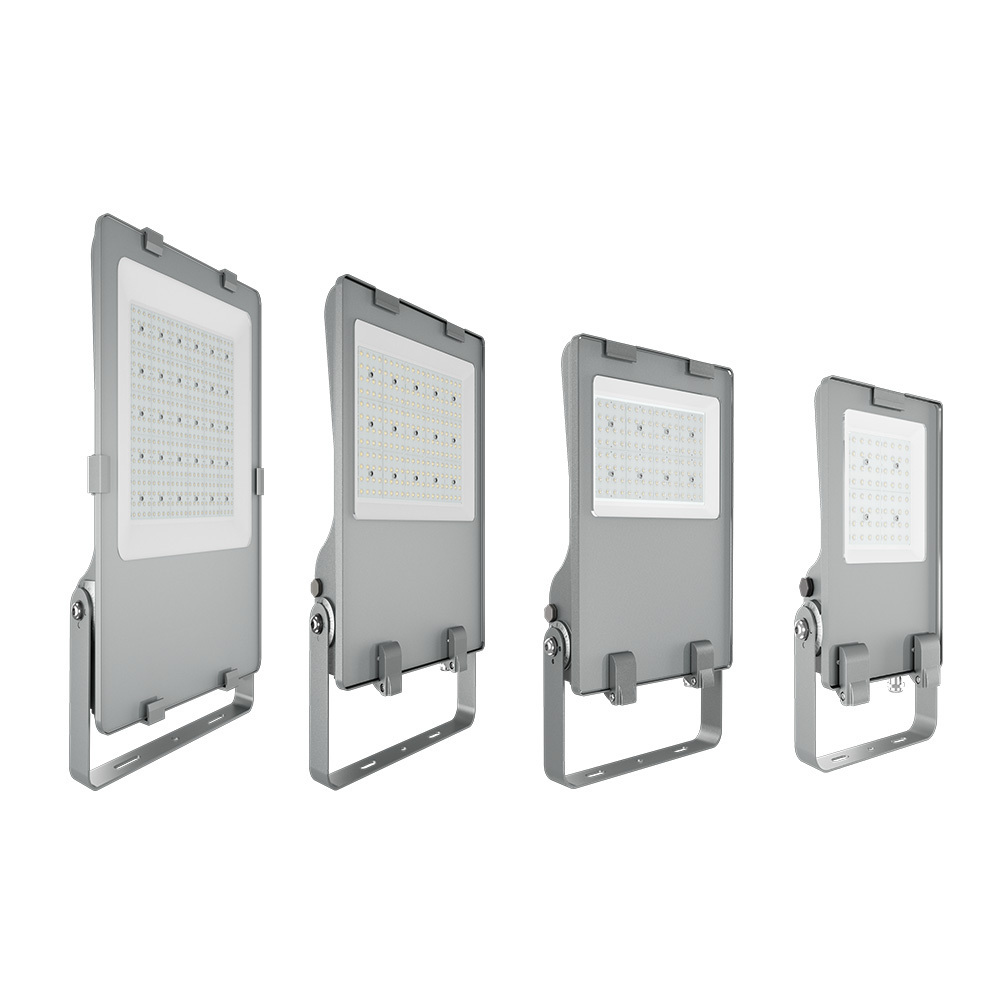

tunnel lighting fixtures
-
Keyword:
-
LED Floodlight Waterproof IP66
-
Certification:
-
CE RoHS
-
Power:
-
30W - 400W
-
LED Chip:
-
SMD 3030
-
Material:
-
Aluminum+Glass Cover
Quick Details
-
Color Temperature(CCT):
-
2700-6500K
-
Lamp Luminous Flux(lm):
-
6000
-
Warranty(Year):
-
5-Year
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
2.3
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZGSM or OEM
-
Model Number:
-
ZGSM-FL07-40S
-
Product Name:
-
tunnel lighting fixtures
-
Keyword:
-
LED Floodlight Waterproof IP66
-
Certification:
-
CE RoHS
-
Power:
-
30W - 400W
-
LED Chip:
-
SMD 3030
-
Material:
-
Aluminum+Glass Cover
Products Description
|
Series No
|
Series Zoom
|
|
Model No
|
ZGSM-FL07-30S,ZGSM-FL07-30S+,ZGSM-FL07-40S,ZGSM-FL07-50S,
ZGSM-FL07-60M,ZGSM-FL07-60M+,ZGSM-FL07-80M,ZGSM-FL07-80M+,ZGSM-FL07-100M,ZGSM-FL07-120M
ZGSM-FL07-150L,ZGSM-FL07-150L+,ZGSM-FL07-180L,ZGSM-FL07-180L+,ZGSM-FL07-200L,ZGSM-FL07-240L
ZGSM-FL07-320XL,ZGSM-FL07-320XL+,ZGSM-FL07-400XL
|
|
Power
|
20W,30W, 50W,60W,80W, 100W,120W,150W, 180W,200W,240W,320W,400W
|
|
Efficacy
|
140-170lm/W
|
|
Input Voltage
|
100-240/277 VAC, 50 / 60 Hz
|
|
Power Factor
|
>0.95
|
|
Surge Protection
|
10KV (Build-in Driver) /Extra 10KV SPD (Available on request)
|
|
IP Rating
|
IP66 waterproof
|
|
IK Rating
|
IK10
|
|
CCT
|
3000K, 4000K, 5000K, 5700K
|
|
CRI
|
Ra>70 (Default) / Ra>80
|
|
Operating Temperature
|
-40°C to + 50°C
|
|
Beam Angle
|
25°, 60°, 90°, 120° or Asymmetrical
|
|
Mounting Option
|
Bracket mounted
|
|
Warranty
|
5 Years
|
|
Certification
|
ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
|
|
Control
|
Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control
|
Application
