High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter
High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter

High Efficiency 100W Solar Panel 60Ah lithium ion battery complete solar kit with battery and inverter

FOB Reference Price: Get Latest Price
≥1 Sets
US $140
≥20 Sets
US $138
≥50 Sets
US $135
≥100 Sets
US $130
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Controller Type:
PWM
Mounting Type:
BIPV Mounting
Certificate:
CE ROHS FCC
Place of Origin:
Shandong, China
Brand Name:
SIY SOLAR
Model Number:
TY-100M060 V1.1
Load Power (W):
10W
Output Voltage (V):
12V DC
Output Frequency:
50HZ
Work Time (h):
72 hours
Product name:
complete solar system solar and wind turbine hybrid system solar panel
Keyword:
complete solar system,solar panel for cctv security camera
Solar panel:
100w Monocrystalline Solar Panel
Battery:
12V 60Ah Lithium Battery
Controller:
PWM MPPT Controller (Optional)
Output Voltage:
DC12V/24V/48V Optional
Usage:
Application Outdoor
OEM & ODM:
Acceptance
Installation method:
Wall/Pole mount

Quick Details

Application:
Outdoor
Solar Panel Type:
Monocrystalline Silicon
Battery Type:
Lithium Ion
Controller Type:
PWM
Mounting Type:
BIPV Mounting
Certificate:
CE ROHS FCC
Place of Origin:
Shandong, China
Brand Name:
SIY SOLAR
Model Number:
TY-100M060 V1.1
Load Power (W):
10W
Output Voltage (V):
12V DC
Output Frequency:
50HZ
Work Time (h):
72 hours
Product name:
complete solar system solar and wind turbine hybrid system solar panel
Keyword:
complete solar system,solar panel for cctv security camera
Solar panel:
100w Monocrystalline Solar Panel
Battery:
12V 60Ah Lithium Battery
Controller:
PWM MPPT Controller (Optional)
Output Voltage:
DC12V/24V/48V Optional
Usage:
Application Outdoor
OEM & ODM:
Acceptance
Installation method:
Wall/Pole mount
Product Description

Title goes here.

- No wiring: we collect power from the sun, no need wiring from other power supply
- No electric bill: green energy from the sun
- Green power: No pollution, no noise
- Plug and play: complete the installation and it runs easily
- Application scenarios: Suitable for all kinds of outdoor environment without power supply
- Waterproof: The system is waterproof
Product Name
100w60ah dc 12v output solar power system
Solar panel
100w 18v mono solar panel
Solar panel size
830*670*30mm
Solar panel weight
5.5kg
Battery type
Ternary lithium polymer battery
Battery capacity
12V 60ah
Max pulse discharge current
40A
Battery size
190*170*135mm
Battery weight
3.8kg
Solar controller type
PWM
System voltage
12V
USB output
5V/2A
Solar controller size
190*170*135mm
Waterproof size
280*190*100mm
U-type hoop
8-14 U-type hoop
Package size
900*725*255mm
Package weight
20.5kg

  • DC output solar solutions


- Long standby tiem for 12V loads

- Suitable for environment without electricity      and network

- Low power consumption and long       endurance Peak power tracking technology

- High conversion rate of solar controller

Low cost solar power system

This solar system is equipped with a 100W solar panel, a 60AH lithium battery and PWM charge controller. Output of this system is 12V DC.
We also provide other solar systems, like 360WH, 480WH, 720WH, 960WH, 1440WH, 2160WH and so on. Feel free to contact us if you have any requirements about power issue.
complete solar system solar panel power kit 12v output with 60ah battery lithium 100w solar panel for cctv security came
Details Images

High efficiency solar panel

- A grade solar cell with efficiency rate
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box

PWM solar controller

- 10A PWM solar charge controller- Support 5V/2A USB output
- LCD real time display
- Intelligent charge management
1.Industrial grade chip 2.LCD display, data adjustable 3.PWM charge management 4.Overload/short circuit protection and other protection functions 5.Dual MOS anti-backflow circuit, ultra low heat
60ah lithium battery
After 2500 times cycles, battery performance still remains about 85%
Product Usage

Wide application scenarios

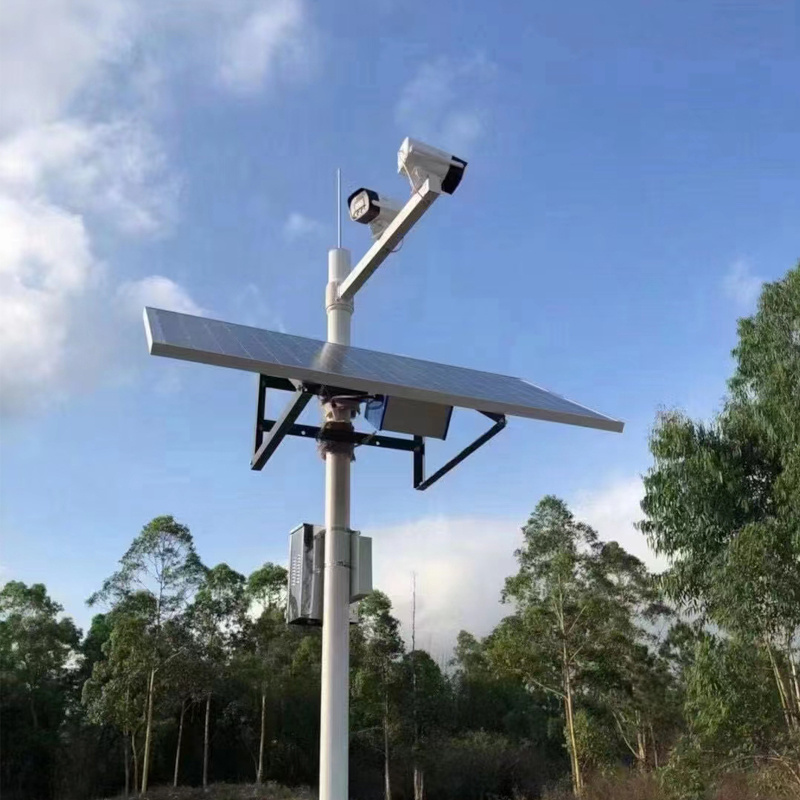

Our solar power system provides power for different application scenarios, such as CCTV camera, wifi bridge, wireless access point, smart weather station, smart hydrological monitoring station and other IoT devices.
Company Introduction
Shandong Xiyuan Solar Energy Co., Ltd. is located in the Economic Development Zone of Zibo City, Shandong Province. It is a high-tech enterprise integrating R&D and production. The products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off grid solar systems, on grid solar ystems, etc. Our products are widely used in all walks of life in the society. The sales network covers China and is exported to overseas. The company adheres to the tenet of "customer first, pioneering and innovative", adheres to customer-centricity, keeps improving, pioneering and innovating, and is committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to come to visit, to realize win-win business opportunities and common development.
Packing&Shipping
FAQ
How can i get product price list? Contact us by email, trademanager, skype or send inquiry to us. Can i get samples to test before placing an order? Yes, welcome to get samples to test and check their quality. Can we use our logo and design? Yes, customization is acceptible for bulk order. What is the product warrenty policy? Twelve-month warranty. If any problems appear when you use, please feel free to contact us. I don't know how to install it. Can you help me? Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours. How do we pay you? We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
