Quick Details
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Runguan
-
Model Number:
-
RG-26N
-
Product Name:
-

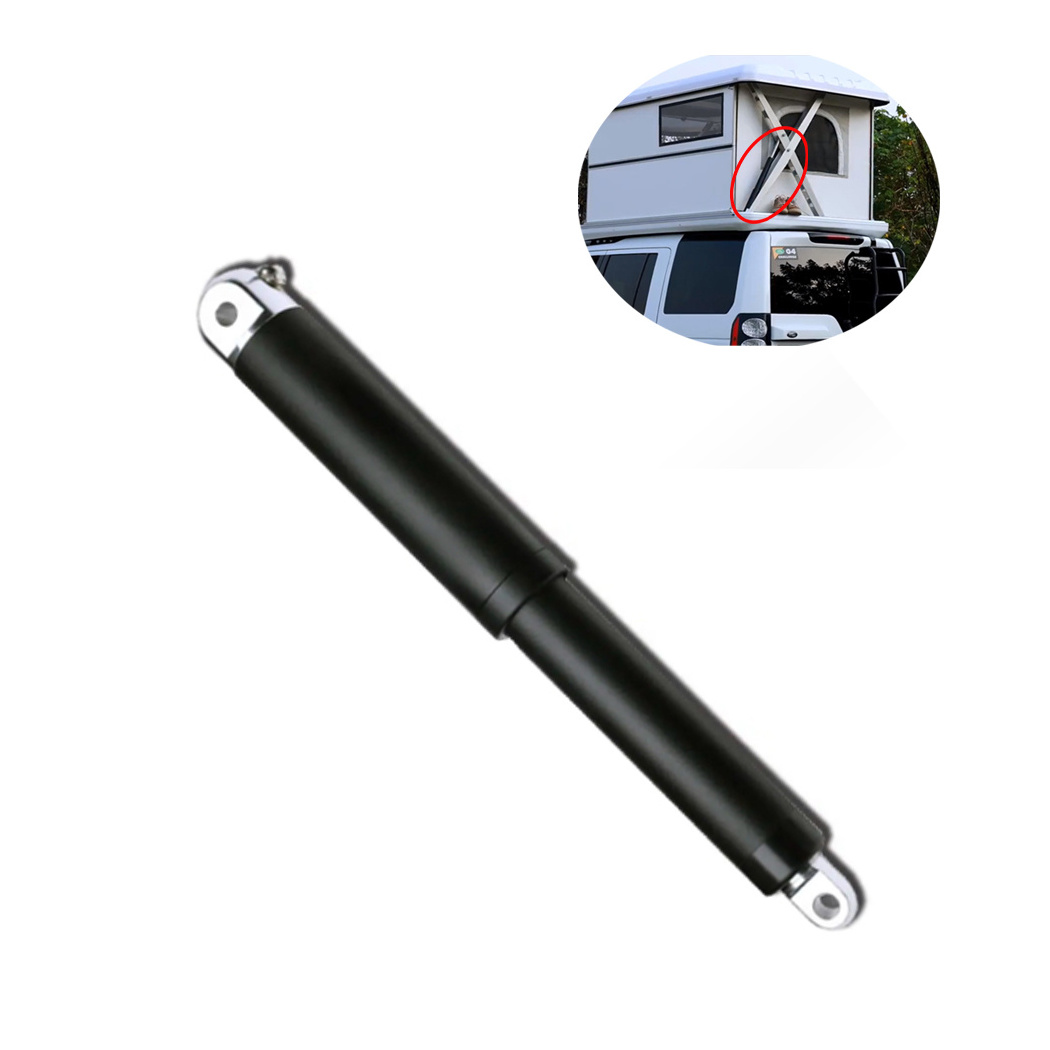

Economical Linear Actuator
-
Voltage(V):
-
12VDC or 24VDC
-
Load noise(dB):
-
<62dB
-
IP rating:
-
IP66/67
-
Optional:
-
Built-in over-current protection, built-in Hall feedback
-
Screw and material:
-
#45
-
Working hours (S2):
-
Work for 2 minutes, stop for 18 minutes
-
Lifespan (times):
-
>=10K
-
unload current:
-
12VDC <=0.3A; 24VDC<=0.15 A
-
load curreht:
-
12VDC <=1.2A; 24VDC<=0.6 A
Quick Details
-
Speed(RPM):
-
custom
-
Continuous Current(A):
-
custom
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Runguan
-
Model Number:
-
RG-26N
-
Product Name:
-
Economical Linear Actuator
-
Voltage(V):
-
12VDC or 24VDC
-
Load noise(dB):
-
<62dB
-
IP rating:
-
IP66/67
-
Optional:
-
Built-in over-current protection, built-in Hall feedback
-
Screw and material:
-
#45
-
Working hours (S2):
-
Work for 2 minutes, stop for 18 minutes
-
Lifespan (times):
-
>=10K
-
unload current:
-
12VDC <=0.3A; 24VDC<=0.15 A
-
load curreht:
-
12VDC <=1.2A; 24VDC<=0.6 A
About this item
---Personalized service/quick responsiveness/flexibility and competitive pricing.
---
MOQ 1 piece
---
The prices are based on the stroke. Please ask the customer service before placing an order.
---
RG-26N can have built-in limit switch plus overcurrent protection circuit or built-in limit switch plus overcurrent protection circuit feedback;
---The
maximum outer diameter is 26mm and the maximum push-pull force is 500N.
It is well suited for applications that have high requirements for both installation space and load;
---The highest IP66/IP67 protection level ensures RG-2 6 N good outdoor performance;
Widely used in electric blinds, electric awnings, and electric wheelchair detection robots.
Product Description
Specification
|
Voltage(V)
|
12V DC or 24V DC
|
|
No-load current(A)
|
≤0.3A or <=0.15
|
|
Maximum power(w)
|
14.5w
|
|
Screw and material
|
#45
|
|
Telescopic tube material
|
stainless steel
|
|
Working hours (S2)
|
Work for 2 minutes, stop for 18 minutes
|
|
Lifespan (times)
|
>10k
|
|
IP rating
|
IP66~67
|
|
Load noise(dB)
|
<=62
|
|
Standard color
|
black
|
|
Certification
|
CE
|
Packing & Delivery
export standard carton; carton + pallet
