* Pure Stainless Steel 304 or higher grade Flange or Screw plug
* Pure Stainless Steel 304 connected fittings
* High-frequency insulation ceramic for fittings
* 100% Nichrome Heating Resistance Wire
* Pure Stainless Steel or Incoloy Elements Sheath
- Product Details
- {{item.text}}
Quick Details
-
U heater elements quantity:
-
1, 2 , 3 etc
-
Installation:
-
Non/screw/flange
-
Diameter:
-
8mm, 10mm, 12mm and others
-
Heating wire:
-
0Cr25Al5, Cr20Ni80 or as custom's requirement
-
Length:
-
10mm to 6000mm as customer's demand
-
Usage:
-
High Temperature Electric Heating
-
MOQ:
-
1 Piece
Quick Details
-
Place of Origin:
-
China
-
Name:
-

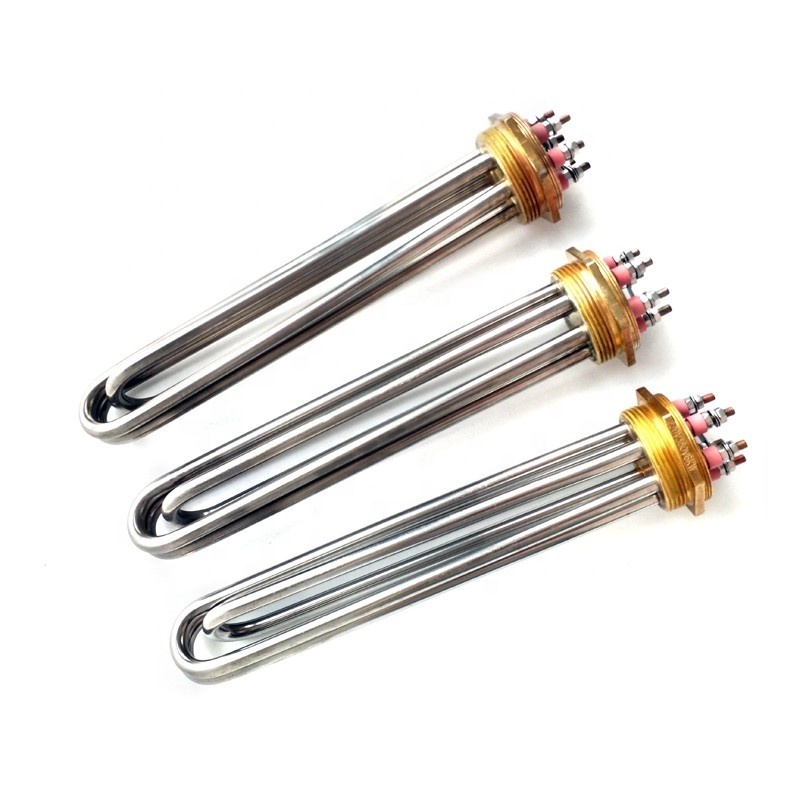

Songtai 9 kw tubular heating element for heat pump
-
Material:
-
SUS304,316L,321,Incoloy800,840,600, Copper & Titanium
-
U heater elements quantity:
-
1, 2 , 3 etc
-
Installation:
-
Non/screw/flange
-
Diameter:
-
8mm, 10mm, 12mm and others
-
Heating wire:
-
0Cr25Al5, Cr20Ni80 or as custom's requirement
-
Length:
-
10mm to 6000mm as customer's demand
-
Usage:
-
High Temperature Electric Heating
-
MOQ:
-
1 Piece
Product Description

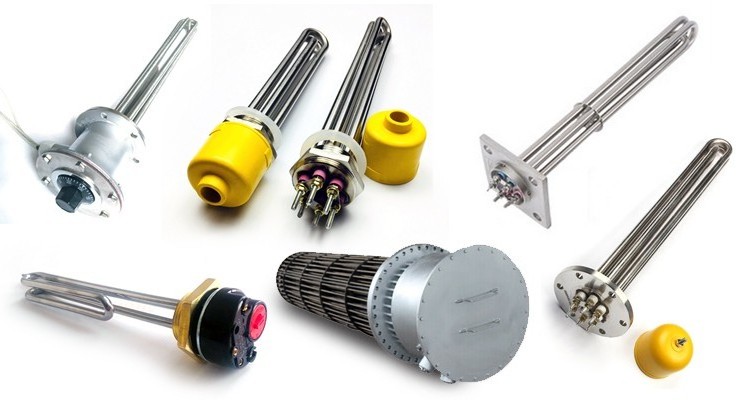

Flange Immersion Heaters
Songtai Immersion heaters are of a variety styles for multi usage. All the tube elements are made of Nichrome heating wires, sheathed by pure stainless steel or Incoloy and Insulated by 99% purity Mgo , which gurantee long life span up to 15000 hours. Also, the mounting terminals are of flexible choices - Hexagon Screws, Flat Flange(round or Square), with Anti-explosion Box, or with Thermostat or Thermocouple hose based on customer diverse applicance. Above all,
our factory has great capacity of designing and developing special immersion heaters to meet customer personalized needs. We never cease our steps in progress and growth with customers.
Immersion Heater Construction
1. Therminal Housing 4. Threaded Connectors
2. Screw Plug or Flat Flange 5. Fixation Round Flange
3. Tubular Heating Elementsm 6. Silicone Sealing Gaskets
|
Technical Specification
|
|
|
|
|||
|
Voltage
|
110V AC up to 600V AC
|
|
|
|||
|
Wattage
|
Customized
|
|
|
|||
|
Immersion Length
|
50mm-1000mm
|
|
|
|||
|
Sheath Material
|
Stainless steel 304, 316L, 310S
|
T2 Copper
|
Incoloy800, 840
|
|||
|
Welded Elements QTY
|
1 to 20 units or more
|
|
|
|||
|
Bult in Thermostat
|
Temperature range 30°C -110°C
|
Thermostate suitable fo Max 250V up to 16 amps
|
Special for Screw plug immersion heaters
|
|||
|
Bult in Thermowell
|
Thermowell hole size and length customized
|
|
|
|||
|
Terminal Cover Material
|
Stainless steel
|
Nylon
|
Plastic
|
|||
|
Screw Thread size
|
G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc
|
|
|
|||
|
Round Flange size
|
DN80 DN100 DN120 DN150 DN200 etc
|
|
|
|||
High Standard Material
Immersion Heater Features
* Samll Volume Large Wattage
* Powerful function for all liquid heating
* Anti-explosion or Temperature controlling custom design
*Flexible Horizontal or Vertical Installation
* Durability and Resistant Building body
Application
|
Application
|
Sheath Material
|
|
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment
|
Stainless Steel304 316L or Copper
|
|
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating
|
Stainless Steel 316L 310s or Incoloy
|
|
Light oils , In forced oil circulation loops
|
Stainless Steel304 316L
|
|
Light oils , In forced oil circulation loops
|
Stainless Steel 316L 310s or Incoloy
|
|
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water
|
Stainless Steel304 316L
|
|
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel
|
Stainless Steel304 316L
|
