Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YITE
-
Dimension(L*W*H):
-
D325*660 mm
-
Weight:
-
Light Weight
-
Product name:
-
Cartridge Filter
-
Material:
-
Polyester Fiberglass
-
Application:
-
Air Filtration System
-
Outer Diameter:
-
325 mm
-
Inner Diameter:
-
215 mm
-
Height:
-
800 mm
-
Filter area:
-
10.8 m2
-
Recommended flow:
-
518 m3/h
-
Limit traffic:
-
972 m3/h
-
Band Number:
-
2
-
Certification:
-
ISO9001
Quick Details
-
Core Components:
-
cartridge filter
-
Efficiency:
-
99.9%
-
Porosity:
-
0.3um
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YITE
-
Dimension(L*W*H):
-
D325*660 mm
-
Weight:
-
Light Weight
-
Product name:
-
Cartridge Filter
-
Material:
-
Polyester Fiberglass
-
Application:
-
Air Filtration System
-
Outer Diameter:
-
325 mm
-
Inner Diameter:
-
215 mm
-
Height:
-
800 mm
-
Filter area:
-
10.8 m2
-
Recommended flow:
-
518 m3/h
-
Limit traffic:
-
972 m3/h
-
Band Number:
-
2
-
Certification:
-
ISO9001

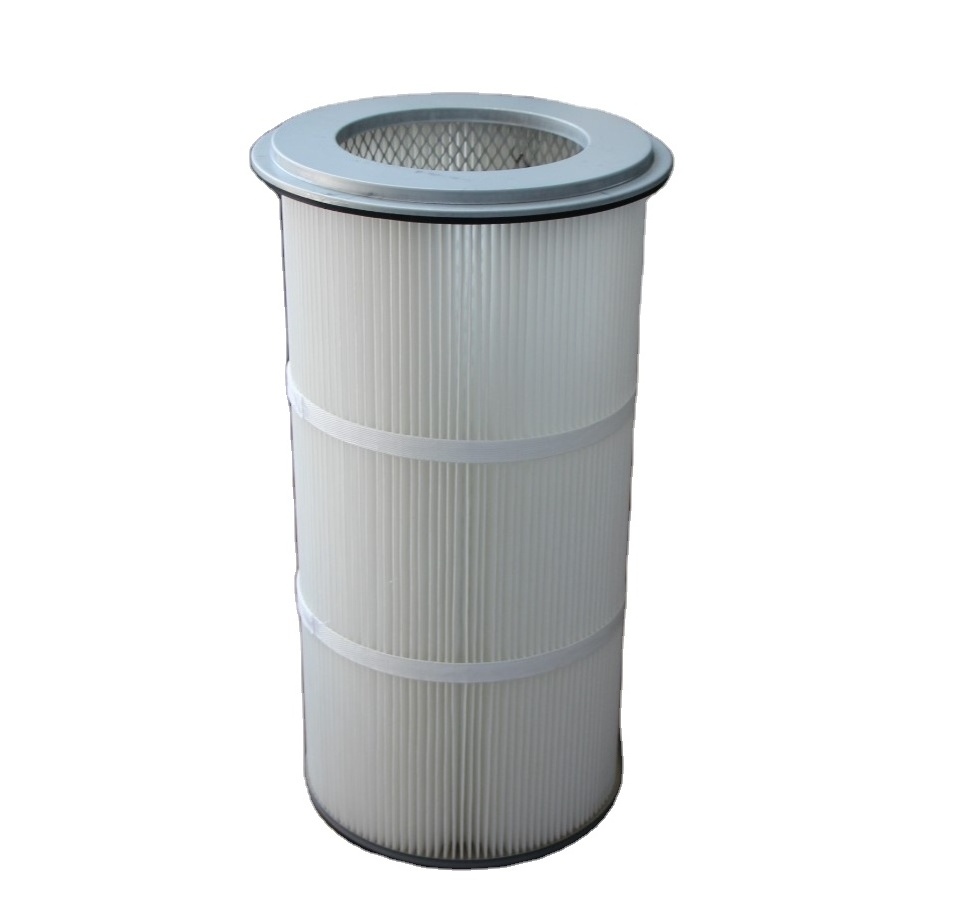

Hot sale Industrial dust pleated air cartridge filter
Industrial air cartridge filter is a common filter element of industrial dust collector. The structure of the filter cartridge is divided into four parts: top cover, metal frame, pleated filter material and base. Compared with conventional dust bag, it has the following advantages:
1. Pleated filter cartridge, increase the filtration area;
2. Increase the treated air volume and reduce the filtering wind speed;
3. Easy ash cleaning, small pressure difference, and compressed air saving;
4. The service life of the filter cartridge is prolonged;
5.
dust filter cleaner
Easy to install and replace.
High efficiency Industrial air cartridge filter
1. 100% polyester filter media
2. Filter efficiency up to 99.99%
3. Integrated design. quick and easy installation,maintenance
4. Wide pleat depth
5. PTFE membrane,antistatic etc.
| Industrial air cartridge filter can be customized according to your specific working condition: size, material and other details | |||
| Paper filter cartridge | Operating pressure | Mpa | 0.3 |
| Rated flow | L/min | 600 | |
| Working temperature | ℃ | 80 | |
| Polyester filter cartridge | Operating pressure | Mpa | 30 |
| Rated flow | L/min | 2000 | |
| Working temperature | ℃ | ≤160 | |
| Membrane filter cartridge | Membrane filter cartridge | Mpa | 30 |
| Rated flow | L/min | 2000 | |
| Working temperature | ℃ | ≤200 | |
Table of main parametes for cartridge filter
| Dimension | YT-LT01 | YT-LT02 | YT-LT03 | YT-LT04 | YT-LT05 | YT-LT06 | YT-LT07 | YT-LT08 | YT-LT09 |
| Diameter(mm) | 325 | 325 | 325 | 325 | 230 | 230 | 230 | 190 | 190 |
| Inner Diameter | 215 | 215 | 215 | 215 | 90 | 90 | 90 | 70 | 70 |
| Height (mm) | 660 | 800 | 900 | 1000 | 700 | 900 | 1000 | 900 | 1000 |
| Area (m2) | 8.9 | 10.8 | 12.1 | 13.5 | 4.5 | 5.8 | 6.5 | 3 | 3.4 |
| Rec Flow(m3/H) | 428 | 518 | 583 | 648 | 216 | 278 | 312 | 144 | 163 |
For dust collector, the regular size is D325*660mm,D325*800 and D325*1000.
However, due to different requirements of customer, customization is also available .
