Automatic Waterproof Frozen Fish Frozen Meat Ball 500g 1kg Weighing Packing Frozen Food Packaging Machine

Automatic Waterproof Frozen Fish Frozen Meat Ball 500g 1kg Weighing Packing Frozen Food Packaging Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $9999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 350

Voltage:: 220v

Place of Origin:: China

Brand Name:: ZONPACK

Dimension(L*W*H):: 1900*3500*5600

Product name:: frozen food packaging machine

Model:: ZH-V420

Packing speed:: 10-70 Bags / Min

Power Parameter:: 220V 50/60Hz 3KW

Material:: Stianless Steel

Technical Feature:: Easy to Operate

Feature:: High Digital System

Main Function:: Weighing Forming Filling Sealing

After-sales Service Provided:: Engineers available to service machinery overseas

Quick Details

Function:: FILLING, Sealing, Packing

Packaging Type:: Stand-up Pouch, Bags, Film, Pouch

Packaging Material:: Plastic, Paper, Metal

Weight (KG):: 350

Voltage:: 220v

Place of Origin:: China

Brand Name:: ZONPACK

Dimension(L*W*H):: 1900*3500*5600

Product name:: frozen food packaging machine

Model:: ZH-V420

Packing speed:: 10-70 Bags / Min

Power Parameter:: 220V 50/60Hz 3KW

Material:: Stianless Steel

Technical Feature:: Easy to Operate

Feature:: High Digital System

Main Function:: Weighing Forming Filling Sealing

After-sales Service Provided:: Engineers available to service machinery overseas

Hot Products

Products Description

Main Technical Parameter
Model	ZH-180PX	ZH-220SL
Packing Speed	20-100 Bags/Min
Bag Size	W:50-150mm ； L:50-170mm	L:100—310mm，W:100—200mm
Pouch Material	PP、 PE、 PVC、 PS、 EVA、 PET、 PVDC+PVC、 OPP+ CPP
Type of Bag Making	Pillow Bag/Stick Bag/ Gusset Bag
Max Film Width	120mm-320mm	220—420mm
Film Thickness	0.05-0.12mm	0.06—0.09mm
Weighting Range	3-200g
Accuracy	±0.1-1g
Air Consumption	0.3-0.5 m³/min；0.6-0.8Mpa	0.5-0.8 m³/min；0.6-0.8Mpa
Net Weight	380kg	550KG

Application

>What do you want to pack? It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc

The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.

Details

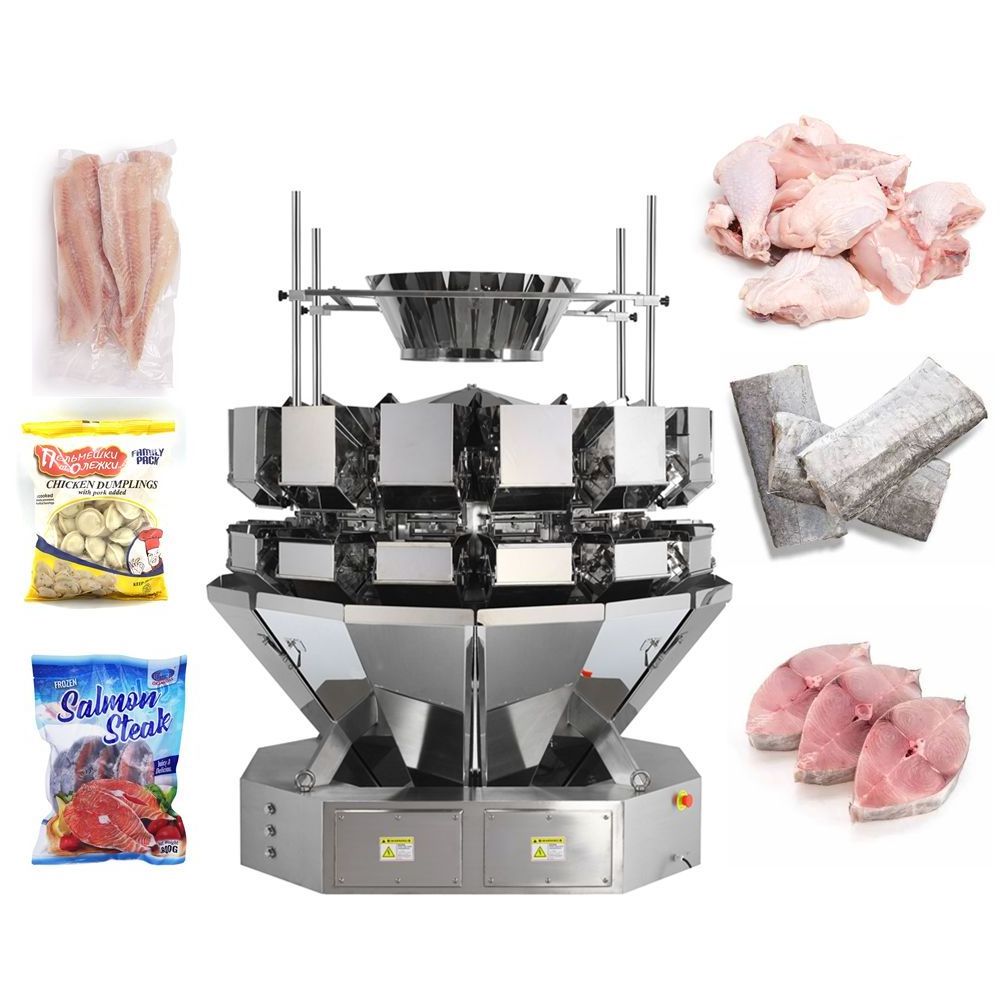

1.Mini-Multihead Weigher

(Weighing Product)

1.we have 10/14 heads Option

2.We have more than 7 different Language for different counties

3.It can measure 3-200g product

4.High Accuracy :0.1-1g

5.Brand Of Weighing Sensor: HBM

2.Bucket Conveyor

(Transport product into multihead weigher)

1. VFD Control the speed

2 .Easy to operate

3. Packing Machine

(Packing product into bag)

1.we have more than 6 sets different model options for packing machine according to different bag size

2.We have more than 7 different Language for different counties

3.Easy to operate
