Quick Details
-
Application:
-
construction
-
Rated Lifting Moment:
-
980KN.m, 980kN.M
-
Span:
-
5.4m
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
NEWINDU
-
Marketing Type:
-
New Product
-
Weight (KG):
-
19450 kg
-
Weight:
-
25000kg
-
Type:
-
ZTC251V
-
Engine:
-
Weichai
-
overall length:
-
9600mm
-
Boom length:
-
6-32m
-
Min. ground clearance:
-
260mm
Quick Details
-
Rated Loading Capacity:
-
25Ton
-
Max. Lifting Height:
-
46m, 46M
-
Engine Brand:
-
imported
-
Application:
-
construction
-
Rated Lifting Moment:
-
980KN.m, 980kN.M
-
Span:
-
5.4m
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
NEWINDU
-
Marketing Type:
-
New Product
-
Weight (KG):
-
19450 kg
-
Weight:
-
25000kg
-
Type:
-
ZTC251V
-
Engine:
-
Weichai
-
overall length:
-
9600mm
-
Boom length:
-
6-32m
-
Min. ground clearance:
-
260mm
Contact way
Maura Guo
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +17789202388
Mobile / Whatsapp/ Wechat: +86 17789202388
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +17789202388
Mobile / Whatsapp/ Wechat: +86 17789202388
Web: www.newindu.com

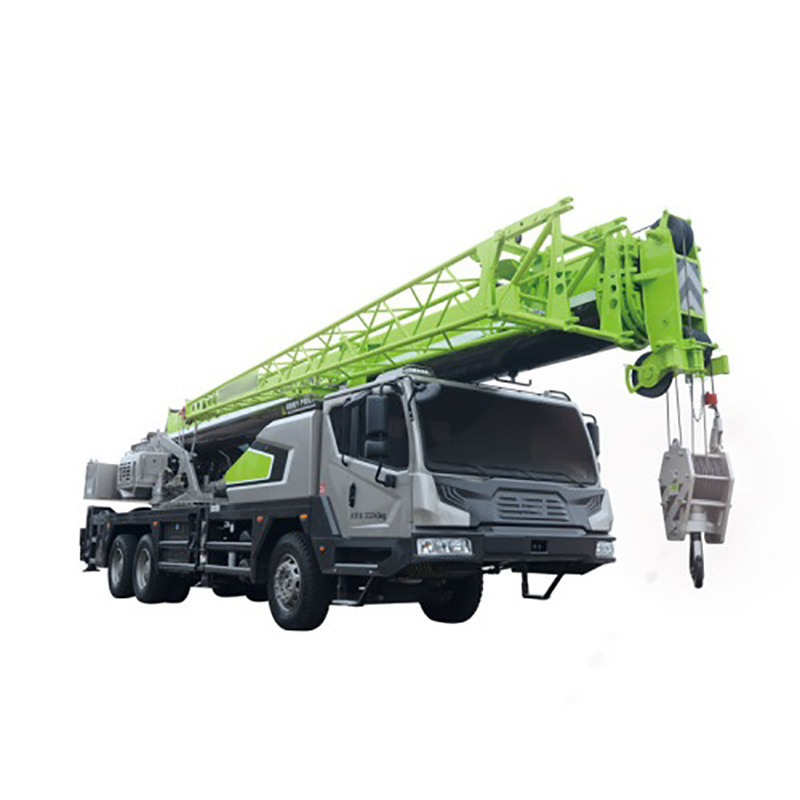

ZOOMLION manual 25 ton truck crane ZTC251V451/ZTC251V with 35m main boom
Products Description
1. The lifting, variable amplitude, rotary, telescopic and other mechanisms of the product adopt manual proportional control and hydraulic drive, which are characterized by light and flexible operation, stable and reliable operation, stepless speed regulation, etc.
2. In the hydraulic system, safety valve and balance are provided. Safety devices such as valves, hydraulic locks, brake valves, etc., to prevent accidents caused by oil passage overload and avoiding oil pipe rupture.
3. The upper control valve adopts anti-flow saturation technology, and the flow rate is independent of load, ensuring combined action Stability and synchronization.
4. The linear cab is novel and unique in appearance and has good aerodynamic characteristics. The internal control mechanism adopts humanized design and it is equipped with National IV electronically controlled engine. Its control system uses bus technology and has engine fault self-diagnosis function.
5. Six-speed gearbox, 6×4 drive, hydraulic power steering, light and flexible. The crane is also equipped with various safety
devices such as torque limiter and height limit device and complete lighting to ensure safe and reliable operation and easy night operation.
2. In the hydraulic system, safety valve and balance are provided. Safety devices such as valves, hydraulic locks, brake valves, etc., to prevent accidents caused by oil passage overload and avoiding oil pipe rupture.
3. The upper control valve adopts anti-flow saturation technology, and the flow rate is independent of load, ensuring combined action Stability and synchronization.
4. The linear cab is novel and unique in appearance and has good aerodynamic characteristics. The internal control mechanism adopts humanized design and it is equipped with National IV electronically controlled engine. Its control system uses bus technology and has engine fault self-diagnosis function.
5. Six-speed gearbox, 6×4 drive, hydraulic power steering, light and flexible. The crane is also equipped with various safety
devices such as torque limiter and height limit device and complete lighting to ensure safe and reliable operation and easy night operation.
Product Paramenters
|
Item
|
|
Unit
|
ZTC251V
|
|
|
Total weight
|
|
kg
|
29600
|
|
|
Power
|
|
kw/r/min
|
199/2100
|
|
|
Max.speed
|
|
km/h
|
80
|
|
|
Max.gradeability
|
|
%
|
40
|
|
|
Max lifting moment
|
|
kN*m
|
960
|
|
|
Max.height
|
|
kg
|
25 t
|
|
|
Swing speed
|
|
r/min
|
0-2.7
|
|
|
Lifting speed
|
|
m/min
|
125
|
|
