Quick Details
-
Color Print Speed:
-
N/A
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
CUSTOM
-
Model Number:
-
TG2460HIII, TG2460H
-
Place of Origin:
-
Italy
-
Number of dots:
-
8dots/mm
-
Speed:
-
140mm/sec
-
Mass:
-
0.6kg
-
Paper width:
-
60mm
-
Interface:
-
USB+Serial
-
Flash Memory:
-
1 MB
-
Graphic Memory:
-
2 logos of 448x584 dots
-
Power supply:
-
24V +/- 10%
-
MTBF:
-
420,000 hours
-
Stability:
-
50Km/100M pulses
Quick Details
-
Interface Type:
-
RS232 and USB
-
Max Paper Size:
-
60mm
-
Black Print Speed:
-
140mm/sec
-
Color Print Speed:
-
N/A
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
CUSTOM
-
Model Number:
-
TG2460HIII, TG2460H
-
Place of Origin:
-
Italy
-
Number of dots:
-
8dots/mm
-
Speed:
-
140mm/sec
-
Mass:
-
0.6kg
-
Paper width:
-
60mm
-
Interface:
-
USB+Serial
-
Flash Memory:
-
1 MB
-
Graphic Memory:
-
2 logos of 448x584 dots
-
Power supply:
-
24V +/- 10%
-
MTBF:
-
420,000 hours
-
Stability:
-
50Km/100M pulses

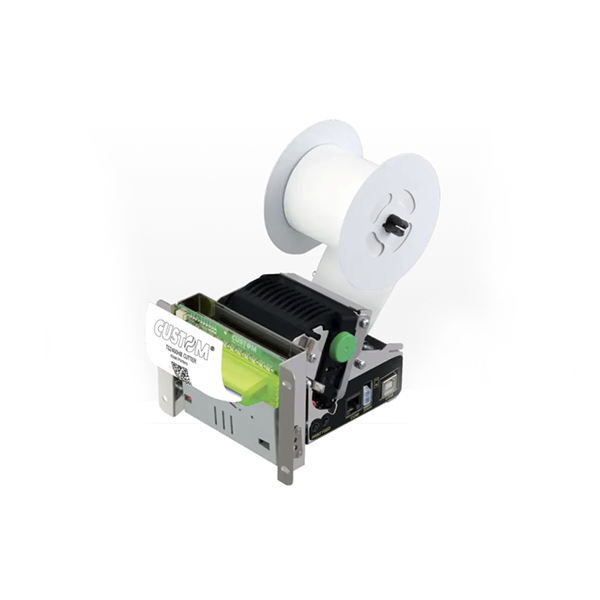

60mm CUSTOM Ticket Receipt Kiosk Printer TG2460HIII TEAR OFF Printer for Filling Stations Parking Payment Vending Machines
CUSTOM Ticket Receipt Printer TG2460HIII TEAR OFF Printer for Filling Stations
- Metal frame (galvanized/aluminium alloy)
- High print quality (200 DPI)
- Paper width: 60mm
- Paper thickness: from 60 to 80 μm
- Printing > 140 mm/sec
- RS232 and USB interfaces
- Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
- Characters: European, International, Thai, Portuguese, Nordic, Arabic, Chinese and Russian
- Sensors: head temperature, paper presence, anti paper jamming, ticket collection, paper end and near paper end
60mm CUSTOM Ticket Receipt Kiosk Printer TG2460HIII TEAR OFF Printer for Filling Stations Parking Payment Vending Machines
CHARACTERISTICS:
• 60 mm ticket dispenser with patented tear off system (without auto-cutter) and chromed bezel resistant to hydrocarbons, which makes the printer suitable for use at fuel stations.
•
Special paper auto-loading system
•
Possibility to fit the roll holder arm to the right or to the left
•
Suitable for tough environments, from -20°C up to +70°C
CUSTOM Ticket Receipt Printer TG2460HIII TEAR OFF Printer for Filling Stations
EXCLUSIVE FEATURES:
•
Metal structure that provides increased rigidity for the printing mechanism and facilitates motor heat dissipation, resulting in improved stability and reliability over time
•
Improved distribution of the head-roller pressure, resulting in improved printing quality
CUSTOM Ticket Receipt Printer TG2460HIII TEAR OFF Printer for Filling Stations
SOFTWARE:
•
Remote status monitor
•
PrinterSet
•
CustomPowerTool
60mm CUSTOM Ticket Receipt Kiosk Printer TG2460HIII TEAR OFF Printer for Filling Stations Parking Payment Vending Machines
| Printing Method | Thermal with fixed head | ||||
| Number of dots | 8 dots/mm | ||||
| Columns | 32 - 42 - 56 | ||||
| Resolution | 203 DPI | ||||
| Printing (mm/sec) | 140mm/sec | ||||
| Character set | PC437, PC850, PC860, PC863, PC865, PC858, PC866, GB2312 | ||||
| Printing Format | Normal, height and width from 1 to 4, bold, negative, underlined, script, italic | ||||
| Printing Direction | Straight, 180° | ||||
| Paper width | 60 mm | ||||
| Paper weight | from 55 to 70 g/m² | ||||
| Paper thickness | from 60 to 80 μm | ||||
| Roll Dimension | 100 mm | ||||
| Sensors | Head temperature, paper jamming, paper presence, notch presence, optional: almost external paper end | ||||
| Emulation | Custom/POS, TGH | ||||
| Interfaces | RS232 + USB | ||||
| Data Buffer | 2 kB | ||||
| Flash Memory | 1 MB | ||||
| Graphic Memory | 2 logos of 448x584 dots | ||||
| Drivers |
Windows
Virtual COM Linux |
||||
| Software Tools | Status Monitor, PrinterSet, CustomPowerTool | ||||
| Power supply | 24V +/- 10% | ||||
| Medium consumption | 0.62A (12.5% dots turned on) | ||||
| MTBF | 420,000 hours (electronic board ) | ||||
| Head Life | 50Km/100M pulses | ||||
| Operating temperature | -20°C + 70°C | ||||
| Dimensions | 100x120(h)x93 mm (with front) - 118x80(h)x114 mm (with automatic cutter) | ||||
| Weight | 0.6 Kg |
CUSTOM Ticket Receipt Printer TG2460HIII TEAR OFF Printer for Filling Stations
60 mm ticket dispenser with patented tear off system (without auto-cutter) and chromed bezel resistant to hydrocarbons, which makes the printer suitable for use at fuel stati
60mm CUSTOM Ticket Receipt Kiosk Printer TG2460HIII TEAR OFF Printer for Filling Stations Parking Payment Vending Machines
