Quick Details
-
Ultimate Strength (≥ MPa):
-
0.05
-
Density (kg/m³ ):
-
128
-
Length:
-
3600-15000mm
-
Working Temperature:
-
1100C/1260C/1360C/1430C
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
24h -3
-
Thermal Conductivity:
-
0.16(800)
-
Model Number:
-
GB
-
Brand Name:
-
KRNC
-
Place of Origin:
-
China
-
Product name:
-
Ceramic Fiber Blanket
-
Raw material:
-
Aluminum silicate
-
Color:
-
Pure White
-
Type:
-
1100C/1260C/1360C/1430C
-
Certificate:
-
ISO9001:2015
-
Feature:
-
Low Thermal Conductivity
-
Shape:
-
Blanket
-
AL2O3+SIO2:
-
96-99%
-
Packing:
-
Carton
Quick Details
-
Thickness:
-
10-50mm
-
Width:
-
610/1220mm
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.05
-
Density (kg/m³ ):
-
128
-
Length:
-
3600-15000mm
-
Working Temperature:
-
1100C/1260C/1360C/1430C
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
24h -3
-
Thermal Conductivity:
-
0.16(800)
-
Model Number:
-
GB
-
Brand Name:
-
KRNC
-
Place of Origin:
-
China
-
Product name:
-
Ceramic Fiber Blanket
-
Raw material:
-
Aluminum silicate
-
Color:
-
Pure White
-
Type:
-
1100C/1260C/1360C/1430C
-
Certificate:
-
ISO9001:2015
-
Feature:
-
Low Thermal Conductivity
-
Shape:
-
Blanket
-
AL2O3+SIO2:
-
96-99%
-
Packing:
-
Carton

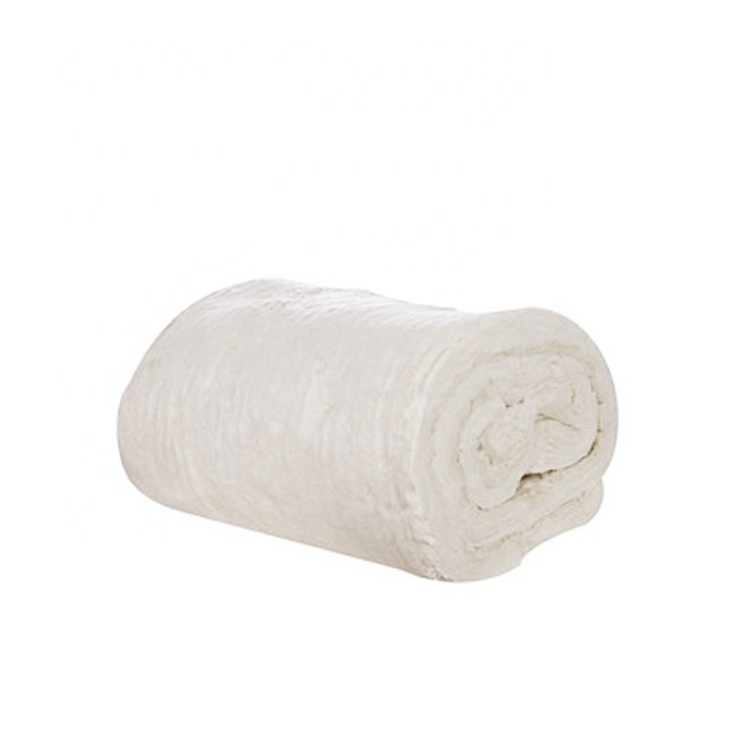

Widely use fireproof 1430 zirconium thermal kaowool high temperature ceramic fiber blanket 50mm
The service temperature of Ceramic fiber blanket can be 1100℃,1260℃,1360℃,1430℃. It includes: common type, standard type, high purity type, high alumina type, zirconium containing type.
Low thermal conductivity, low heat storage
Good heat and chemical stability
Thermal shock resistance
Tensile strength
Good thermal insulation
Noise reduction
Fire proof
Applications:
Industrial building materials kiln, heating device, high temperature pipe lining; chemical industry high temperature reaction equipment and heating equipment wall lining; thermal insulation for electric boilers, gas turbines and nuclear power plants; fire insulation layer for high-rise buildings; furnace door, roof heat insulation; high temperature filter material and so on.
Specifications:
|
Ceramic fiber blanket |
Common type |
Standard type |
High purity type |
High alumina type |
Zirconium containing type |
|
|
Classification temperature(℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
|
Service temperature(℃) |
<1000 |
1050 |
1100 |
1200 |
1350 |
|
|
Color |
White |
White |
White |
White |
White |
|
|
Bulk density(kg/m3) |
96 128 |
96 128 |
96 128 |
128 160 |
128 160 |
|
|
Permanent liner change(%) (After 24 hours)(Bulk density 128kg/m3) |
-4 (1000℃) |
-3 (1000℃) |
-3 (1100℃) |
-3 (1250℃) |
-3 (1350℃) |
|
|
Thermal conductivity under each section(w/m·k) (Bulk density 128kg/m3) |
0.09(400℃) 0.176(800℃) |
0.09(400℃) 0.176(800℃) |
0.09(400℃) 0.176(800℃) 0.22(1000℃) |
0.132(600℃) 0.22(1000℃) |
0.76(800℃) 0.20(1000℃) |
|
|
(Bulk density 128kg/m3) |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
|
|
Chemical content(%) |
Al2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
|
Al2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
|
Al2O3+SiO2+ZrO2 |
- |
- |
- |
- |
99 |
|
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
|
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
|
Size(mm) |
Standard size: 7200*610*10-50;Customized sizes are also avaliable |
|||||
