TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TST013QVHG-06
-
Brand Name:
-
TSD
-
Outline Dimension:
-
35.6x37.74x1.6mm
-
Interface Type:
-
3line SPI
-
Warranty:
-
12 Months
-
Active Area:
-
32.4x32.4mm
-
Viewing direction:
-
All O'clock
-
Backlight:
-
2LEDs, 20mA, 6.2V
-
Brightness:
-
300 Cd/m2
-
Driver IC:
-
GC9A01
-
Keyword:
-
Round shape
-
Resolution:
-
240x240
Quick Details
-
Type:
-
Lcd display
-
Display Size:
-
1.28 inch
-
Supplier Type:
-
Manufacturer
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TST013QVHG-06
-
Brand Name:
-
TSD
-
Outline Dimension:
-
35.6x37.74x1.6mm
-
Interface Type:
-
3line SPI
-
Warranty:
-
12 Months
-
Active Area:
-
32.4x32.4mm
-
Viewing direction:
-
All O'clock
-
Backlight:
-
2LEDs, 20mA, 6.2V
-
Brightness:
-
300 Cd/m2
-
Driver IC:
-
GC9A01
-
Keyword:
-
Round shape
-
Resolution:
-
240x240
Product Description

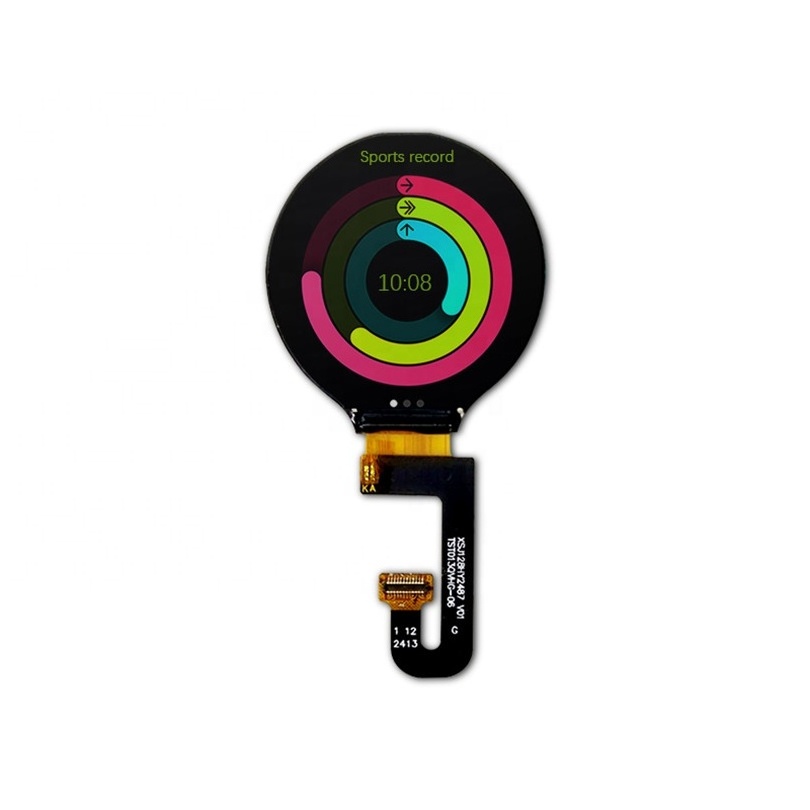

micro lcd display 240x240 1.3 inch round lcd display
|
Item
|
Specification
|
|
Display Mode
|
1.3''/α-Si TFT/IPS/
Transmissive/Normally Black
|
|
Part NO.
|
TST013QVHG-06
|
|
Resolution
|
240x(RGB)x240
|
|
Outline Size
|
35.6x37.74x1.6mm
|
|
Active Area
|
32.4x32.4mm
|
|
View Direction
|
All O'clock
|
|
Display Colors
|
65K/262K
|
|
Interface
|
3line SPI
|
|
Driver IC
|
GC9A01
|
|
Backlight
|
2LEDs, 20mA, 6.2V
|
|
Surface Lumiannce
|
300nits
|
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
About us
TEAM SOURCE DISPLAY (TSD) was established in
2004
. Head office located in Shenzhen, factory is in Dongguang.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
Application
What TSD has?
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported
2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.
3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design
4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
Packing & Delivery
Customer Photos
FAQ
Q: How can i find the right product?
A : Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost → Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
A : Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost → Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
