Quick Details
-
Brand Name:
-
XAGY
-
Model Number:
-
Soft Magnetic Alloy
-
Curie temperature:
-
770 °C
-
Electrical resistivity,μΩ-m:
-
0.13
-
DENSITY:
-
7.86g/cm3
-
Standard:
-
ASTM A848 Alloy 1
-
Processing:
-
Cold-Rolled
-
Surface Finish:
-
Cold-finish
-
Material:
-
Iron cobalt Material
-
Certificate:
-
ISO9001:2015
-
Feature:
-
high magnetic sturation alloy
-
Lead-Time:
-
4 week (Custom-Made Order)/ 4Days (Stocks)
Quick Details
-
Tolerance:
-
±0.02mm Thickness
-
Grade:
-
Low Carbon Iron Steel
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
XAGY
-
Model Number:
-
Soft Magnetic Alloy
-
Curie temperature:
-
770 °C
-
Electrical resistivity,μΩ-m:
-
0.13
-
DENSITY:
-
7.86g/cm3
-
Standard:
-
ASTM A848 Alloy 1
-
Processing:
-
Cold-Rolled
-
Surface Finish:
-
Cold-finish
-
Material:
-
Iron cobalt Material
-
Certificate:
-
ISO9001:2015
-
Feature:
-
high magnetic sturation alloy
-
Lead-Time:
-
4 week (Custom-Made Order)/ 4Days (Stocks)
Products Description
Low Carbon -Magnetic Iron
Description
ASTM A848 Type 1 is a low carbon magnetic iron produced using vacuum induction melting and vacuum arc remelting practices.Other element commonly found in low carbon irons are held as low as possible to ensure good DC magnetic properties.
This special melting technique controls the distribution of nonmetallic inclusions to a minimum length and frequency so that thin wall sections will not contain leaks due to internal discontinuities
Application
ASTM A848 Type 1
is often used in the manufacture of soft magnetic components where vacuum integrity is needed such as in
electro-mechanicalrelays, solenoids, magnetic pole and other flux-carrying components.
Standard Specification：ASTM A848-01（2011） Alloy 1
|
Forms of supply
|
|
|
|
|
||||
|
ROD
|
Dia.20 to 500mm, Length2000mm,Max
|
|
Surface Finish: Black, De-scaling & Ground Surface
|
|
||||
|
STRIP/SHEET
|
T0.1 to 3.0mm, width300mm,Max
|
|
Temper Name : Hard / Annealed
|
|
||||
|

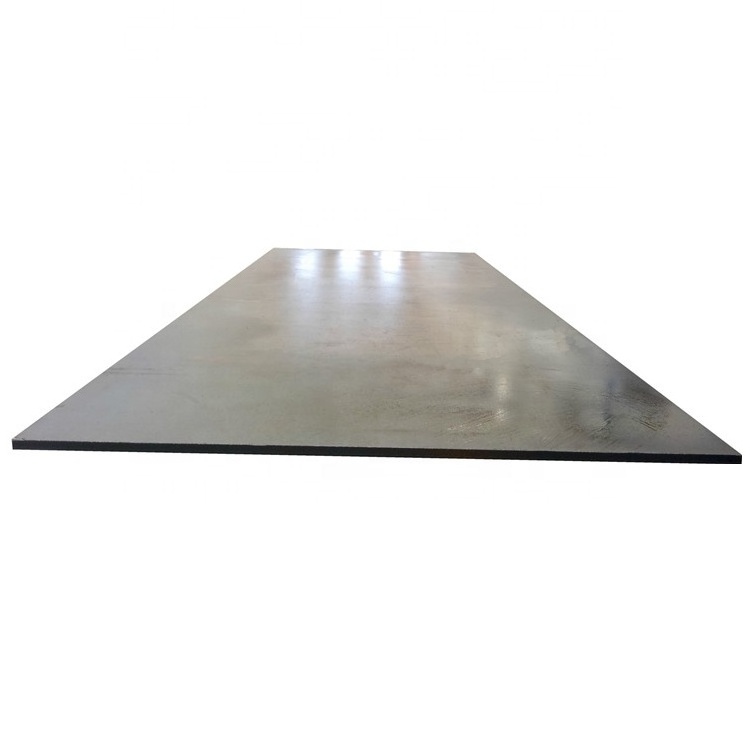

PLATE
|
T3.0 to 100.0mm, Width1000mm,Max
|
|
Surface Finish: Black / Bright
|
|
||||
|
Chemical Composition,%
|
|
|
|
|
|
|
|
|
|
|||||||||
|
C
Max
|
Mn
Max
|
Si
Max
|
P
Max
|
S
Max
|
Cr
Max
|
Ni
Max
|
V
Max
|
Ti
|
Al
|
|||||||||
|
0.02
|
0.35
|
0.15
|
0.03
|
0.025
|
0.20
|
0.15
|
0.10
|
0.10
|
0.10
|
|||||||||
|
Iron is Balance
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Physical Properties
|
|
|
|
|
||||
|
Resistivity,μΩ•m
|
|
0.13
|
|
|
||||
|
Density,g/cm3
|
|
7.86
|
|
|
||||
|
Curie Temperature,°C
|
|
770
|
|
|
||||
|
TYPICAL DC MAGNETIC PROPERTIS
After magnetic final annealing Typical Values |
|
|
|
|
|
|
||||||
|
Hc
A/m
|
µmax
mH/m
|
B at
500
A/m
T
|
B at
1000
A/m
T
|
B at
2500
A/m
T
|
B at
5000
A/m
T
|
B at
10000
A/m
T
|
||||||
|
39.14
|
13.02
|
1.546
|
1.600
|
1.681
|
1.767
|
1.875
|
||||||
|
Notes:
Hc = coercive field strength, B = induction , 1) Hc =39.14 A/m / 0.49Oe 2) µmax=13.02 mH/m / 10416Gs/Oe
3) Bs measured at 1000A/m =1.6T / 16000Gs
Machining the sample into 40mm OD and 32mm ID ring shape and final annealing. Then carried out by superposing 20 pieces of ring shape with winding of copper wire to test the material DC magnetic property by magnetic tester. |
|
|
|
|
|
|
||||||
|
MECHANICAL PROPERTY
|
|
|
|
|||
|
R
m
MPa
|
R
p0.2
MPa
|
A,
%
|
Hv
|
|||
|
345
|
190
|
45
|
104
|
|||
|
Notes:
Rm = tensile strength, Rp0,2 = yield strength, A,% = elongation at fracture, HV= Vickers Hardness |
|
|
|
|||
Process
1.5T Vacuum Induction Melting (VIM) Furnace
5T Electro Slag Remelt (ESR) Furnace
Forging & Hot Rolling Workshop
Cold-Rolling Workshop
Annealing Workshop
About Us
Specialized in manufacturing Nickel alloys & Cobalt alloys for 27+ years,with a company mission to provide a high quality, reliable source for precision alloys, high temperature alloys and stainless steels in both pilot processing and mass production. We are professionally manufacturing materials with unique features, which are then used in aerospace, military, electronics, marine, petroleum and petrochemical industries. Now our company has formally marketed in China's new stock market, stock No. 836660.
Base on "Quality-oriented, Leading Technology, Continuous Improvement, Customer Satisfaction", we believe XAGY Inc can be your best supplier.
The Quality control team has 25 members, more than 15 sets existing inspection equipment, mainly responsible for the analysis and detection of all raw materials, finished products in the factory.
Undertaking more than 55 analysis and testing items. Such as material chemical composition，physical properties，magnetic properties，mechanical properties，surface and dimensions，Etc.
Each member of our team is a specialist in his or her field of high precision alloys. All the inquires will Response within 24hours.
Packing & Delivery
Ex. Gross Weight Under 20kg = Carton Box / Gross Weight Over 20kg = Plywood Box.
FAQ
1. Notice
Chemical composition,Physical and Mechanical properties will be engineered according to specific customer requirements.Therefore chemical composition,physical and mechanical properties might be different to values listed in this document.
Information about product characteristics or applicability of materials are shown only for informative purposes.
2. Sample Policy
Custom-made sample order support for Prototyping project. Meanwhile regular size are available in stock,The weight base on mill random length. MOQ 1PC
3. Payment Terms
30% T/T in advance ,balance before shippment.
4. Production Period
About 4 weeks for customized Products.
