Quick Details
-
Weight (KG):
-
300
-
Machine Type:
-
sign making machine
-
Raw Material:
-
Sheet / Plate Rolling
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power supply:
-
220V 50HZ 1P
-
Materials height:
-
10-150 mm
-
machine size:
-
1.83*0.8*1.49m
-
Keyword:
-
channel letter bending machine
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yunneng
-
Year:
-
2023
-
Weight (KG):
-
300
-
Machine Type:
-
sign making machine
-
Raw Material:
-
Sheet / Plate Rolling
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power supply:
-
220V 50HZ 1P
-
Materials height:
-
10-150 mm
-
machine size:
-
1.83*0.8*1.49m
-
Keyword:
-
channel letter bending machine
-
Certification:
-
ce

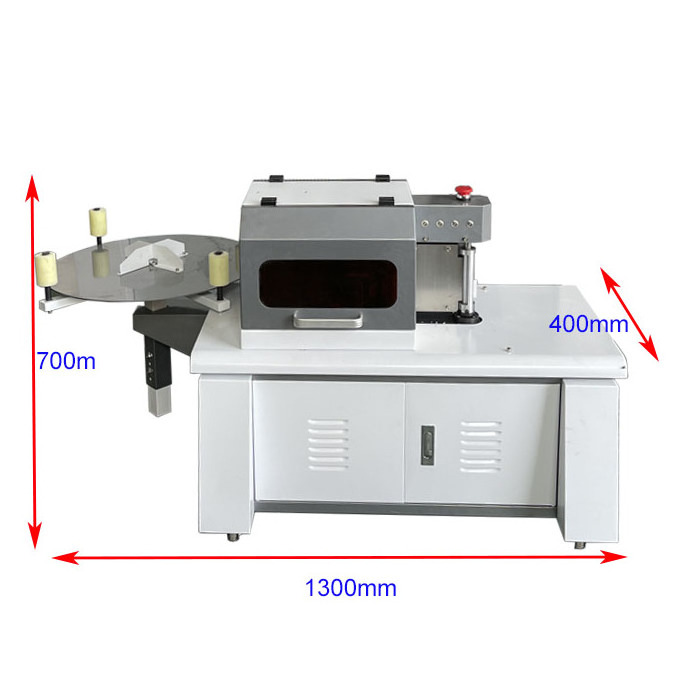

Aluminum signage bender CNC automatic stainless steel 3D Sign channel letter bending machine bender for channel letter signboard
Channel letter bender could feeding, slotting and bending arcs according to the letter design automatically. With higher working precision and efficiency. They are more and more popular in sign industry now, as they can improve the working efficiency, and one machine can save 4 workers' labor cost.
|
Model
|
YN-VM
|
|
Applied Material
|
Flat aluminum coil
|
|
Material Width
|
20-100mm
|
|
Material Thickness
|
Maximum 0.8mm
|
|
Feeding Speed
|
2-5m/min
|
|
Bending Mode
|
Double rod linkage
|
|
Minimum Bending Radius
|
4mm
|
|
Motor
|
Servo motor: 1pc
Stepper motor: 1pc
|
|
Power
|
600w
|
|
Voltage
|
220v 50/60hz 1p
|
|
Air Pressure
|
0.6MPa
|
|
Supported File Format
|
DXF PLT AI
|
|
Control Software
|
Original Leetro Software CBS
|
|
Machine Weight
|
70kgs
|
|
Gross weight
|
90kgs
|
|
Machine Size
|
1400mm(L)*400mm(W)*700mm(H)
|
