Quick Details
-
Rolling thinckness:
-
2.0-2.5mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Voltage:
-
380V 50HZ 3Phase or customized
-
Dimension(L*W*H):
-
9500*1000*1200Mm
-
Weight:
-
20000 kg
-
Feeding width:
-
137mm
-
Marketing Type:
-
competitive price
-
Material thickness:
-
2.0-2.5mm
-
Producting speed:
-
8-10m/min
-
Roller station:
-
About 18 stations
-
Hydraulic station:
-
5.5KW
-
Main Power:
-
18.5KW
-
Materia of cutting:
-
Cr12Mov
-
Material:
-
Pre-Galvanized (PG), Atkore Defender (DF), Hot-Dip Galvanized (HG)
-
Way Of Drive:
-
Gearbox driven
-
Material of Roller:
-
Gcr15, Quench HRC58-62 Plated Chrome
-
Application:
-
trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
8-9m/min
-
Rolling thinckness:
-
2.0-2.5mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Voltage:
-
380V 50HZ 3Phase or customized
-
Dimension(L*W*H):
-
9500*1000*1200Mm
-
Weight:
-
20000 kg
-
Feeding width:
-
137mm
-
Marketing Type:
-
competitive price
-
Material thickness:
-
2.0-2.5mm
-
Producting speed:
-
8-10m/min
-
Roller station:
-
About 18 stations
-
Hydraulic station:
-
5.5KW
-
Main Power:
-
18.5KW
-
Materia of cutting:
-
Cr12Mov
-
Material:
-
Pre-Galvanized (PG), Atkore Defender (DF), Hot-Dip Galvanized (HG)
-
Way Of Drive:
-
Gearbox driven
-
Material of Roller:
-
Gcr15, Quench HRC58-62 Plated Chrome
-
Application:
-
trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct
|
Forming stations
|
About 20-22 stations or according to you profile drawings
|
|
Machine structure
|
Optional 1: wall panel structure
Optional 2: cast iron strcture |
|
Rollers material
|
GCr15,quenching treatment:HRC58-62; Cr12, SKD11（optional）
|
|
Way of drive
|
Chain drive or Gearbox drive(optional)
|
|
Raw material request
|
Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
|
|
Whole line working speed
|
0-25m/min
|
|
Length precision
|
6+-1.0mm
|
|
Punching system
|
Hydraulic punching or punching press machine(option)
|
|
Cutting system
|
Non stop cutting or servo Tracking cutting
|
|
Inverter
|
Siemens,Mitsubishi, panasonic (option Brand)
|
|
PLC
|
Siemens,Mitsubishi, panasonic (option Brand)
|
|
Main Power with reducer
|
18.5KW WH Chinese Famous
|
|
Cutting holder
|
Servo following cutting
|
|
Motor power of hydraulic station
|
5.5KW
|
|
Cutting type
|
Hydraulic drive, cut after forming
|
|
Material of cutting blade
|
Cr12Mov , quenching process
|

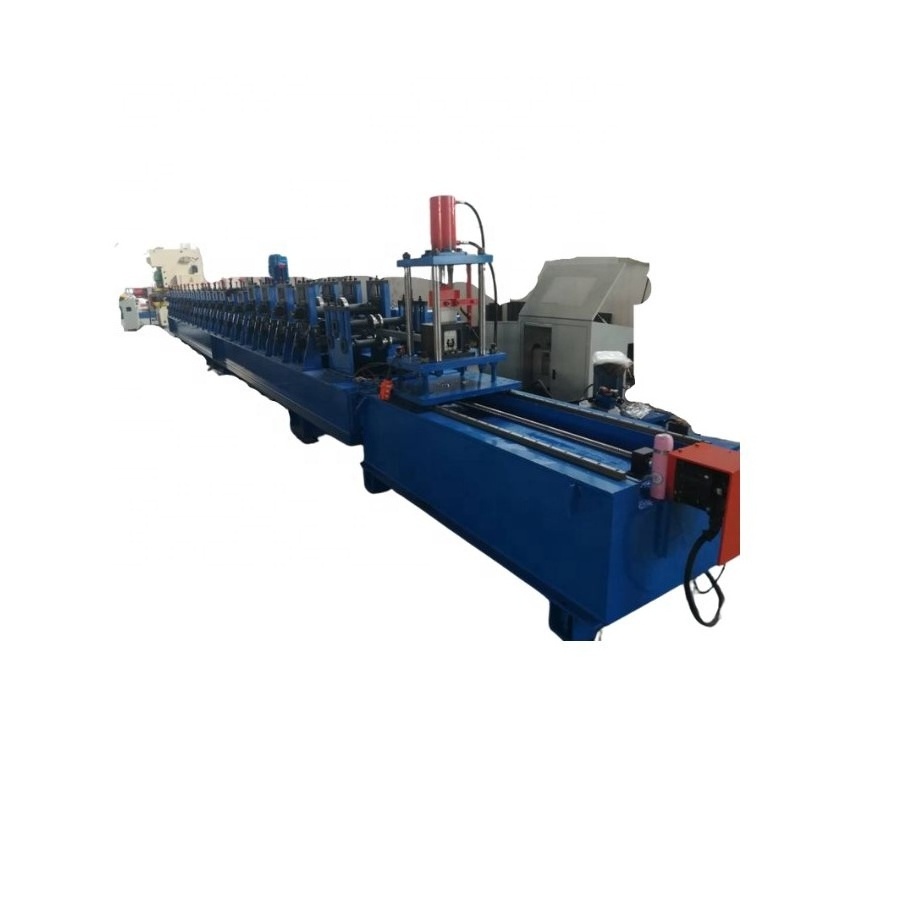

Strut channel application
Strut channel machines are used to manufacture strut channels, also known as strut or framing channels. These channels are used in building and construction projects to support electrical wiring, standing beam, conduit, and piping systems.
Unistrut's P1000 is the original metal framing strut channel and has been used in countless applications
Commonly known as 12 Gauge Standard or Deep Strut Channel, it is the global standard for strut metal framing. This channel is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Unistrut Application Showcase.
Commonly known as 12 Gauge Standard or Deep Strut Channel, it is the global standard for strut metal framing. This channel is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Unistrut Application Showcase.
