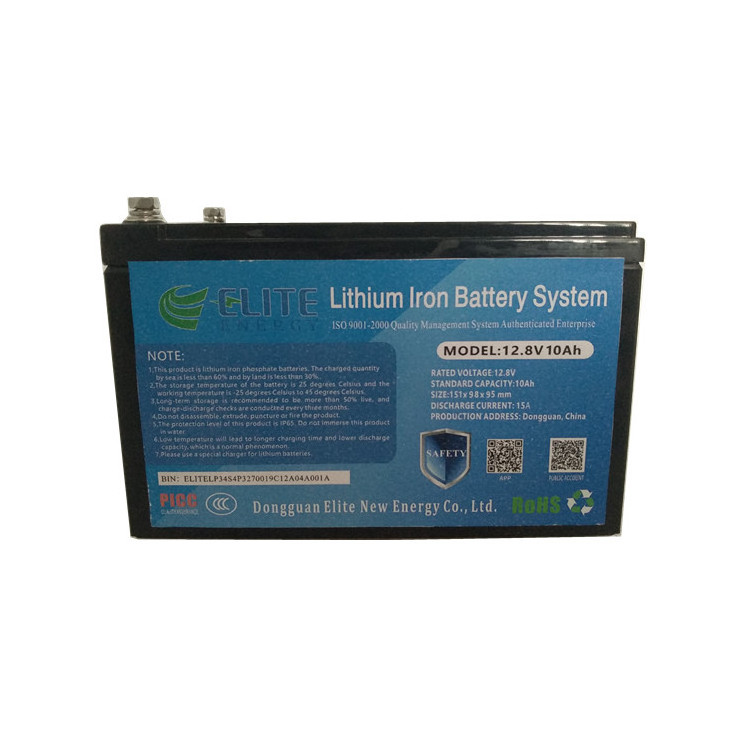

12 volt 10 amp battery 12v 10ah lithium battery 12v 10ah

12 volt 10 amp battery 12v 10ah lithium battery 12v 10ah

FOB Reference Price: Get Latest Price

≥1 Pieces

US $19

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Solar system, UPS

Certification:: CE/RoHS/UN38.3/MSDS, CE/RoHS/UN38.3/MSDS

Self discharge:: <3%

Dimension:: 151x 98 x 95 mm

Weight:: 1.5kg

Warranty:: 2 years

Cycle life:: 2000-5000 times

Bluetooth:: Option

Type:: LiFePO4

Quick Details

Place of Origin:: Guangdong, China

Capacity:: 12.8V 10Ah

Connect:: Max 4 pcs to 48V

Application:: Solar system, UPS

Certification:: CE/RoHS/UN38.3/MSDS, CE/RoHS/UN38.3/MSDS

Self discharge:: <3%

Dimension:: 151x 98 x 95 mm

Weight:: 1.5kg

Warranty:: 2 years

Cycle life:: 2000-5000 times

Bluetooth:: Option

Type:: LiFePO4

12 volt 10 amp battery 12v 10ah lithium battery 12v 10ah

Product Description

Feature

1. Safety: safest Lithium battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	10Ah
	Energy	128Wh
	Internal Resistance	≤10mΩ
	Cycle Life	>2000 cycles@1C 100% DOD
	Months Self Discharge	<3%
	Efficiency of Charge	100%@0.5C
	Efficiency of Discharge	96-99% @1C
Standard Charge	Charge Cut-off Voltage	14.6±0.2V
	Charge Mode	0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV)
	Recommend Charge Current	2A
	Max. Charge Current	10A
Standard Discharge	Max. Discharge Current	10A
	Max. Pulse Current	20A(10S)
	Discharge Cut-off Voltage	10V
Environmental	Charge Temperature	0℃ to 45℃(32F to 113F)@60±25% Relative Humidity
	Discharge Temperature	-10 ℃ to 60℃(-4F to 140F)@60±25% Relative Humidity
	Storage Temperature	0℃ to 40℃(32F to 104F)@60±25% Relative Humidity
	Water Dust Resistance	IP56
Mechanical	Cell&Method	4S
	Plastic Case	ABS
	Dimensions(in./mm.)	151x 98 x 95 mm
	Weight(lbs./kg.)	1.5kg
	Terminal	M6
	Display screen	O ption
	Bluetooth	O ption
