Quick Details
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Weight (KG):
-
4100 kg
-
gantry:
-
customized
-
engine:
-
Japan - Isuzu/United States - Cummins/China - Xinchai
-
brand:
-
heli/Jac
-
side shift:
-
customized
-
Automatic:
-
customized
-
double filter:
-
customized
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
heli
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Weight (KG):
-
4100 kg
-
gantry:
-
customized
-
engine:
-
Japan - Isuzu/United States - Cummins/China - Xinchai
-
brand:
-
heli/Jac
-
side shift:
-
customized
-
Automatic:
-
customized
-
double filter:
-
customized
Product Overview
PRODUCT SPECIFICATIONS
FAQ
Q1:What can you buy from us? A2:Scissor Lift,Scissor type lifting platform, self-propelled lifting platform, self-propelled
lifting platform, lifting table,Forklifts, pallet trucks, electric forklifts, diesel forklifts, boarding bridges, lifting
equipment, etc. we can do it with one-stop service and one-stop procurement!
Q2: Can provide customized products? OEM products or ODM products? A2: Yes, can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time? A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For
some standard products, we have most in stock and could delivery immediately.
Q5: Can we print the LOGO on products? A5: Yes, the OEM is available with the permission of our customers.
Q6: What is your payment term? A6: T/T or L/C, if you want any other way, please contact us.
https://wxxinbaitai.en.alibaba.com/contactinfo.html
lifting platform, lifting table,Forklifts, pallet trucks, electric forklifts, diesel forklifts, boarding bridges, lifting
equipment, etc. we can do it with one-stop service and one-stop procurement!
Q2: Can provide customized products? OEM products or ODM products? A2: Yes, can provide customized products according to your
requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time? A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For
some standard products, we have most in stock and could delivery immediately.
Q5: Can we print the LOGO on products? A5: Yes, the OEM is available with the permission of our customers.
Q6: What is your payment term? A6: T/T or L/C, if you want any other way, please contact us.
https://wxxinbaitai.en.alibaba.com/contactinfo.html
|
Model
|
|

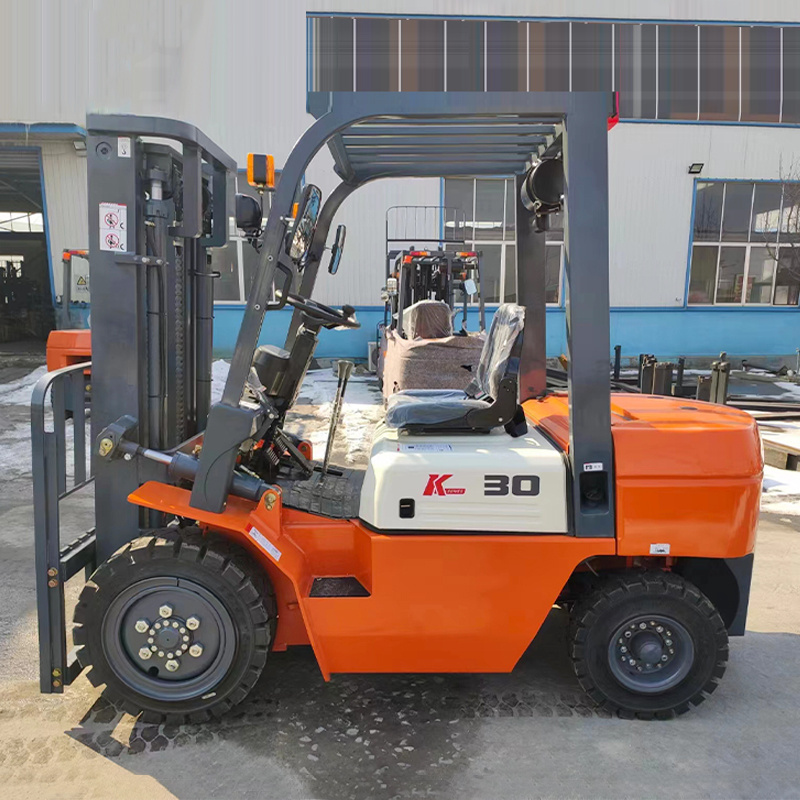

CPC(D)30
|
CPC(D)35
|
CPC(D)38
|
|
|
Dynamic form
|
|
Diesel oil
|
Diesel oil
|
Diesel oil
|
|
|
Rated deadweight
|
kg
|
3000
|
3500
|
3800
|
|
|
Load center distance
|
mm
|
500
|
500
|
500
|
|
|
Front overhang
|
mm
|
480
|
485
|
485
|
|
|
Wheelbase
|
mm
|
1760
|
1760
|
1760
|
|
|
Dead weight (oily water)
|
kg
|
4270
|
4555
|
4755
|
|
|
Tyre form
|
|
Inflatable tyre
|
Inflatable tyre
|
|
|
|
Tire size front wheel
|
|
28*9-15-14 PR
|
28*9-15-14 PR
|
|
|
|
Tire size rear wheel
|
|
6.50-10-10 pr
|
6.50-10-10 pr
|
|
|
|
Front wheel pitch
|
mm
|
1005
|
1005
|
|
|
|
Rear wheel pitch
|
mm
|
973.5
|
973.5
|
|
|
|
Gantry Angle (front/rear)
|
|
6/12
|
6/12
|
|
|
|
Static height of the gantry
|
mm
|
2055
|
2170
|
|
|
|
Free lifting height
|
mm
|
145
|
150
|
|
|
|
Door raised height
|
mm
|
3000
|
3000
|
|
|
|
Maximum height of door erection
|
mm
|
4140
|
4140
|
|
|
|
Top guard height
|
mm
|
2150
|
2150
|
|
|
|
Total length (including fork)
|
mm
|
2780
|
2815
|
|
|
|
Total width
|
mm
|
1225
|
1225
|
|
|
|
Fork size (Length*width * height)
|
mm
|
1070X122X45
|
1070X122X50
|
|
|
|
Fork adjustment range
(outside of fork) |
mm
|
290-1100
|
290-1100
|
|
|
|
Minimum ground clearance full load gantry
|
mm
|
130
|
130
|
|
|
|
Right Angle stacking channel (pallet 1000x1200 width)
|
mm
|
4080
|
4105
|
|
|
|
Right Angle stacking channel (pallet 1200x800 width)
|
mm
|
4280
|
4305
|
|
|
|
Minimum turning radius
|
mm
|
2400
|
2420
|
|
|
|
Maximum driving speed
(full load/no load) |
km/h
|
19/20
|
19/20
|
|
|
|
Maximum lifting speed (full load)
|
m/4
|
0.46
|
0.38
|
|
|
|
Descending speed
(full load/no load) |
m/s
|
0.5/0.55
|
0.5/0.55
|
|
|
|
Hook traction
|
machinery
|
N
|
16300/15000
|
16300/15000
|
|
|
(full load/no load)
|
Hydraulic force
|
N
|
20300/15000
|
20300/15000
|
|
|
Climbing grade (full load/no load)
|
machinery
|
%
|
20/20
|
15/15
|
|
|
|
Hydraulic force
|
%
|
20/20
|
15/15
|
|
|
Manufacturer/model
|
|
New Chai 4D29V41
|
|
|
|
|
Rated power
|
kw/r/min
|
36.8/2500
|
|
|
|
|
Rated speed
|
r/min
|
2500
|
|
|
|
|
Number of cylinders/displacement
|
ml
|
4/2850
|
|
|
|
|
Battery (voltage/capacity)
|
V/Ah
|
12/90
|
|
|
|
|
Maximum torque/RPM
|
N,m/r/min
|
165/1600-1800.
|
|
|
|
|
type
|
|
Mechanical (hydraulic)
|
|
|
|
|
Gear forward/backward
|
|
2/2(1/1)
|
|
|
|
|
Shifting mode
|
|
Mechanical (hydraulic)
|
|
|
|
|
It provides pressure
|
MPa
|
17.5
|
|
|
|
|
Tank volume
|
L
|
70
|
|
|
|
