Quick Details
-
Brand Name:
-
cosuper
-
Model Number:
-
CMPA-60AL
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
800W~3200W
-
Max PV Voltage:
-
145V
-
Certificate:
-
CE RoHS
-
Warranty:
-
12months
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
cosuper
-
Model Number:
-
CMPA-60AL
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
800W~3200W
-
Max PV Voltage:
-
145V
-
Certificate:
-
CE RoHS
-
Warranty:
-
12months
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
Products parameter
|
Specifications |
|
|
Models |
CMP-4860A |
|
Rated Charge/ Load Current |
60A/20A |
|
Battery Voltage |
12/24/36/48VDC |
|
Absorb Charge Voltage |
14.6VDC ( *2/24VDC )( *3/36VDC )( *4/48VDC ) |
|
Float Charge Voltage |
13.8VDC ( *2/24VDC )( *3/36VDC )( *4/48VDC ) |
|
Recommended PV Open voltage |
145VDC |
|
Protection |
Over Charge and Discharge, Short Circuit , Reverse Polarity |
|
Under Voltage Warning |
12.0VDC ( *2/24VDC )( *3/36VDC )( *4/48VDC ) |
|
Under Voltage Warning |
11.1VDC ( *2/24VDC )( *3/36VDC )( *4/48VDC ) |
|
PV power (max)
|
12V/800W |
|
24V/1600W |
|
|
36V/2400W |
|
|
48V/3200W |
|
|
No Load loss |
0.7W~1.2W |
|
Temp. compensation |
-3mv/ ℃ /2V |
|
Operation Temp |
-35~45 ℃ |
|
Control Mode |
4 stage MPPT charge mode |
|
Cooling |
Natural (no fan) |
|
Temperature Compensation |
Option |
|
Certification |
CE |
|
Weight (kg) |
3.6 |
|
Size (L*W*H) (mm) |
285*205*93 |
Producst Features:

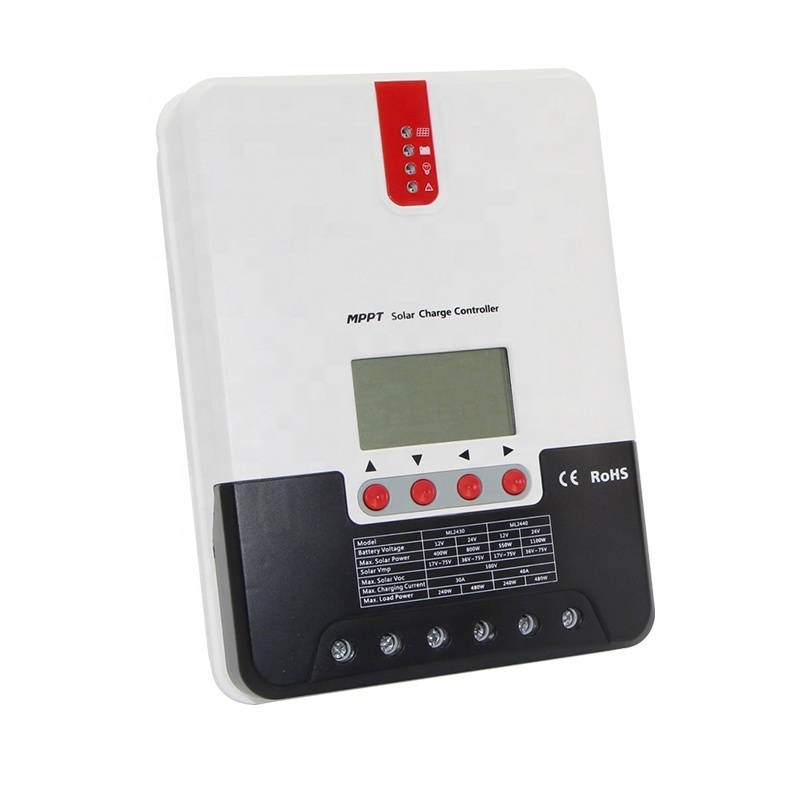

MPPT Solar Charge Controller:
1, 12V/24V/36V/48V auto
2, Aluminum frame, can be used in all kinds of harsh environment
3, Dual wave or multiple peaks tracking technology, when the panels are shadows shade or part of the panels are damaged, I-V curve will appear multiple wave, controller still can accurately track the maximum, power point
4, The use of advanced digital power technology, Circuit energy conversion efficiency is as high as 98%
5, Multiphase control technology, with automatic current-limiting charging mode, reducing the ripple. Improving the system efficiency
6, High speed high performance dual processor architecture, improve the response speed of the system, optimize the performance of the system
7, RS - 232, the RS485 communication way to maximize meet the needs of different occasions
8, Support for data storage, storage time for 5 year
9, Four stages of optimizing charging control: MPPT-Equalizing charge -Improve charging-Floating charge
10, Protection: over heat, over charging, input/output reverse connection, short circuit, TVS lightning protection
