Quick Details
-
Weight:
-
1.05kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tideace
-
Model Number:
-
FM-M009
-
Color:
-
Customer's Request
-
Warranty:
-
2 Years
-
Finish:
-
Black Matte Finish
-
Feature:
-
Light Weight
-
BB:
-
PF30
-
Product name:
-

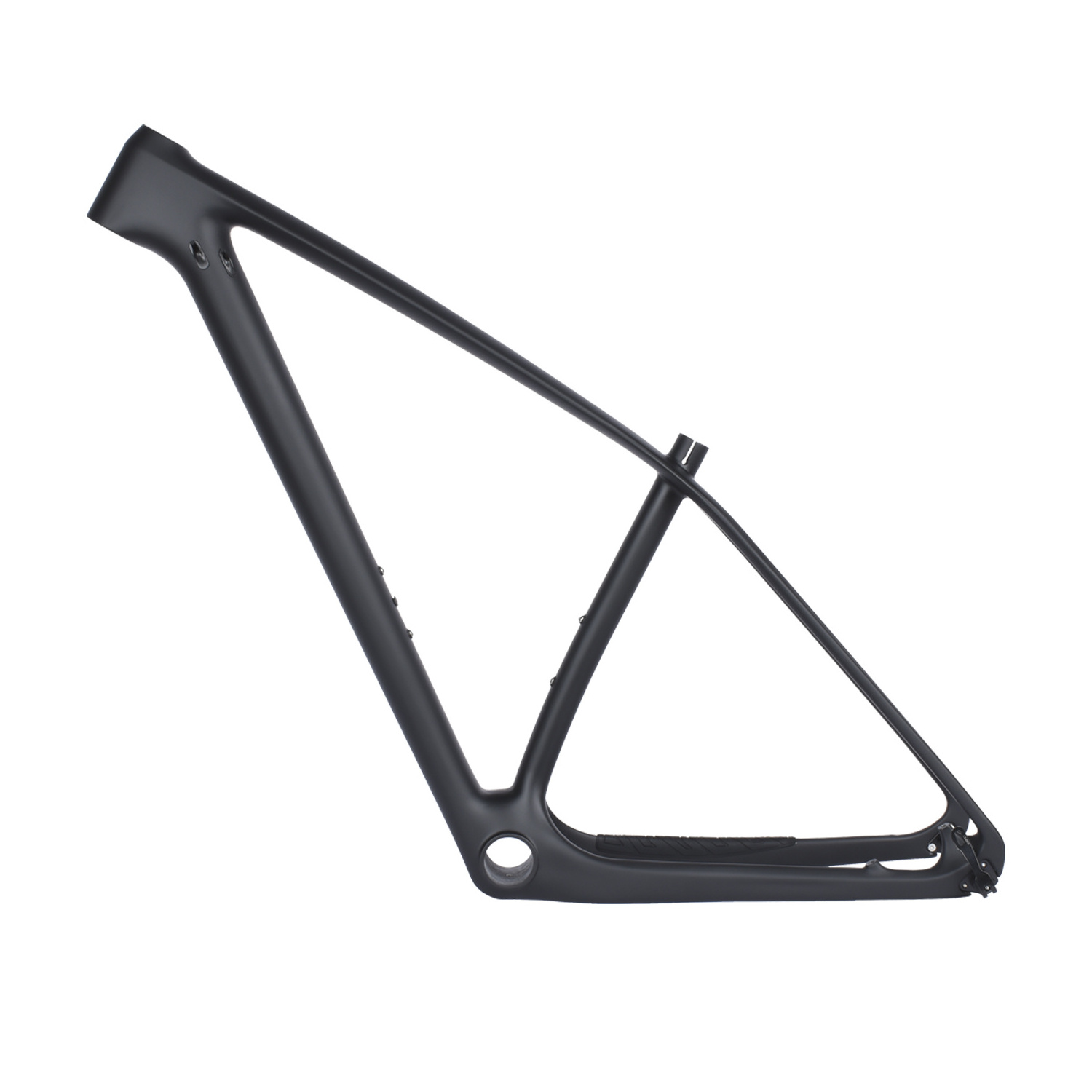

Carbon Frameset
-
Head tube:
-
Tapered 1 1/2- 1 1/8''
-
MOQ:
-
1 Set
-
Test:
-
EN Standard
-
Package:
-
1pc/carton
Quick Details
-
Size:
-
29er/27.5ER
-
Use:
-
Mountain Bikes
-
Type:
-
Carbon fiber frame
-
Weight:
-
1.05kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tideace
-
Model Number:
-
FM-M009
-
Color:
-
Customer's Request
-
Warranty:
-
2 Years
-
Finish:
-
Black Matte Finish
-
Feature:
-
Light Weight
-
BB:
-
PF30
-
Product name:
-
Carbon Frameset
-
Head tube:
-
Tapered 1 1/2- 1 1/8''
-
MOQ:
-
1 Set
-
Test:
-
EN Standard
-
Package:
-
1pc/carton
Related Products
Product Paramenters
|
Model NO.
|
FM-M009
|
|
Material
|
Toray T800 carbon fiber
|
|
Frame Size
|
29er*15/17/19/21'', 27.5er*15/17''
|
|
Reach
|
29er 15/17/19/21'': 409.3mm/418.1mm/435.2mm/455.5mm
|
|
Stack
|
29er 15/17/19/21'': 609mm/614mm/619mm/624mm
|
|
Brake type
|
160mm post mount disc brake
|
|
Weave
|
UD
|
|
Max tire
|
2.1 tires
|
|
Axle Spec.
|
142*12mm and 135*9mm compatible
|
|
Cable Routing
|
internal Cable routing
|
|
Bottom bracket
|
PF30 (46*73MM)
|
|
Headset
|
1 1/8 to 1 1/2, Tapered
|
|
Seat Post
|
outside diameter 27.2mm
|
|
Derailleur System
|
Mechanical Derailleur and Di2 compatible
|
|
Weight
|
980+/-60g (29er 15''), 1100+/-60g (27.5er 15'')
|
|
Including
|
frame*1+clamp*1+PF30*1+thru axle shaft*1+chain protector cover*1
|
|
Remarks
|
The diameter of BB default 24mm (please remark after order or tell us if you need 30mm)
|
