Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Weipu
-
Model Number:
-
WF16ZG/WF20ZG/WF24ZG/WF28ZG
-
Product name:
-
Electrical Connector
-
Coupling:
-
Threaded
-
Shell material:
-
Zinc alloy with chrome plating
-
Insert material:
-
PPS, max temperature 260 °C
-
Contact material:
-
Brass with gold plating
-
Termination:
-
Solder
-
Mating cycle:
-
>500
-
IP rating:
-
IP67
-
Temperature range:
-
-40°C~+ 85°C
-
Insulation resistance:
-
2000M(ohm)
Quick Details
-
Type:
-
cable connector
-
Application:
-
Power
-
Gender:
-
Female&Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Weipu
-
Model Number:
-
WF16ZG/WF20ZG/WF24ZG/WF28ZG
-
Product name:
-
Electrical Connector
-
Coupling:
-
Threaded
-
Shell material:
-
Zinc alloy with chrome plating
-
Insert material:
-
PPS, max temperature 260 °C
-
Contact material:
-
Brass with gold plating
-
Termination:
-
Solder
-
Mating cycle:
-
>500
-
IP rating:
-
IP67
-
Temperature range:
-
-40°C~+ 85°C
-
Insulation resistance:
-
2000M(ohm)
Product Description
WF16/WF20/WF24/WF28
Series with multi-core(2-35 core) design to fit with different industrial needs within below key features:
△The shell is made of Zine alloy with chrome plating, compressive, anti-explosive and anti-deformation properties.
△Gold-plated contacts, high-strength corrosion resistance and electrical conductivity,can electively cope with changes in
temperature rise that caused by current;
temperature rise that caused by current;
△
Threaded
coupling is easy to operate and easy to install;
△Current rating: 5A/10A/15A
|
Model No.
|
WF16ZG/WF20ZG/WF24ZG/WF28ZG
|
|
|
||
|
Product name
|

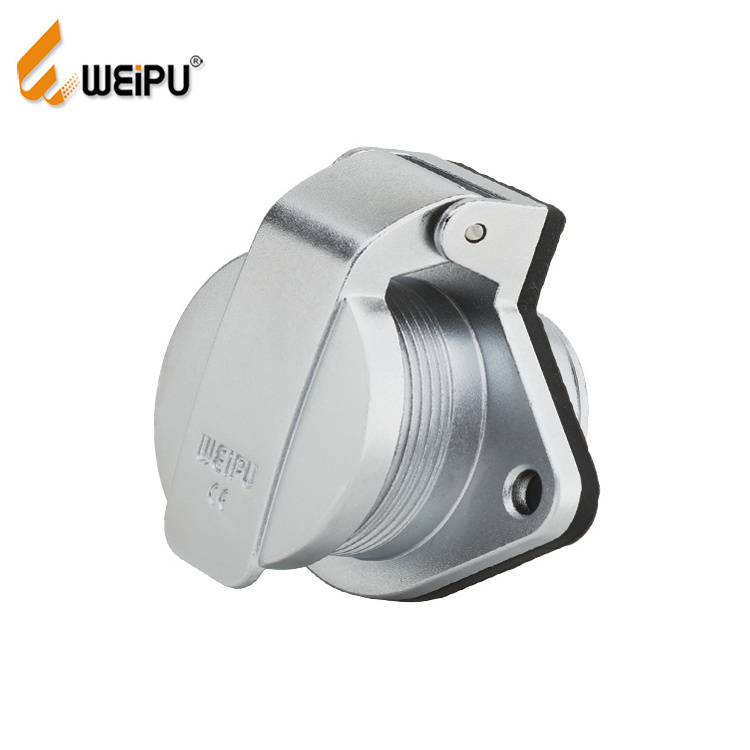

2-hole flange receptacle
|
|
|
||
|
Coupling
|
Threaded
|
|
|
||
|
Shell material
|
Zinc alloy with chrome plating
|
|
|
||
|
Insert material
|
PPS, max temperature 260℃
|
|
|
||
|
Contact material
|
Brass with gold plating
|
|
|
||
|
Termination
|
Solder
|
|
|
||
|
Mating cycle
|
500
|
|
|
||
|
Temperature range
|
-40℃~+85℃
|
|
|
||
|
Insulation resistance
|
2000MΩ
|
|
|
||
Contact spec
Production Process
Application scenarios
Application scenarios
The machine with good efficiency is base on the effectively stable running. The connectors produced by WEIPU can work effectively and stably even under extreme conditions.
The products of WEIPU refer to rail transit, new energy vehicles, industrial automation, energy, photovoltaics, stage lighting, exhibitions, 3C products, medical, agriculture and other fields.
