Quick Details
-
Model Number:
-
b-02
-
Size:
-
L418mm*W358mm*H308mm
-
Weight:
-
35kg
-
Power supply:
-
220V
-
Cutting length:
-
0.5mm-99999.99mm
-
Cutting tolerances:
-
+-( 0.002*L )mm L: indicates a cutting length.
-
Stripping length:
-
0.5mm--30mm
-
Applicable wires:
-
For teflon wire, glass wire, copper wire, PVC tube, rubber pipe.ect
-
Drive supply:
-
four-wheels drive,independent drive box driver
-
Display:
-
English or Chinese interface
-
Name:
-
automatic cable cutting stripping machine
Quick Details
-
Usage:
-
Stripping
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
zhaozhuang
-
Model Number:
-
b-02
-
Size:
-
L418mm*W358mm*H308mm
-
Weight:
-
35kg
-
Power supply:
-
220V
-
Cutting length:
-
0.5mm-99999.99mm
-
Cutting tolerances:
-
+-( 0.002*L )mm L: indicates a cutting length.
-
Stripping length:
-
0.5mm--30mm
-
Applicable wires:
-
For teflon wire, glass wire, copper wire, PVC tube, rubber pipe.ect
-
Drive supply:
-
four-wheels drive,independent drive box driver
-
Display:
-
English or Chinese interface
-
Name:
-
automatic cable cutting stripping machine

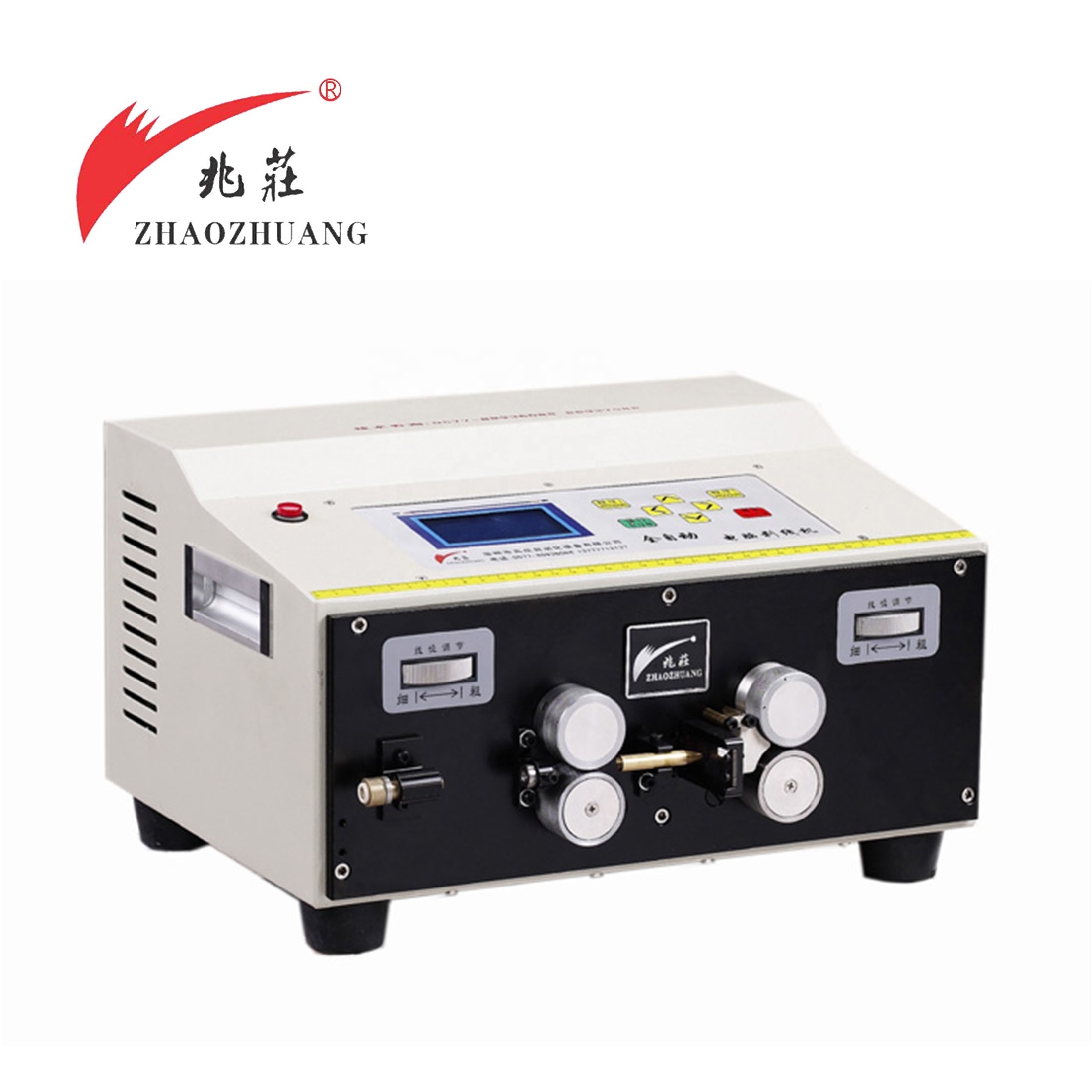

B-02AS/B-02BS/B-02CS/B-02DS Fully Automatic Wire Stripping Machine
FEATURE:
Point at electric wire, silicone wire, for teflon wire, glass fibres, shielding wire, copper coaxia wire, cannulas ect,.Has full-auto cutting, stripping, semi-strippi ng, mid-strippng functions. The specification and dimension of wires can be changed in minutes. If the wire is blocked inside, it will stop working and alarm automatically. It’s free trouble to use it.
|
Model |
B-02AS |
B-02BS |
B-02CS |
B-02DS |
|
Power |
Rated 150W |
180W |
200W |
|
|
Applied core area |
0.1mm 2 -1.5mm 2 |
0.1mm 2 -2.5mm 2 |
0.1mm 2 -4.0mm 2 |
0.1mm 2 -6.0mm 2 |
|
Weight |
21KG |
|||
|
Dimension |
L 340mm ×W387mm×H230mm |
|||
|
Cutting length |
5mm-40mm-10m |
|||
|
Cutting tolerance |
+— (0.2+0.0002 ×L)mm (L= cutting length) |
|||
|
Stripping length |
Top: 0-25mm , end: 0-15mm |
|||
|
Stripping pattern |
Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts. |
|||
|
Wire type |
PVC teflon wire, glass fibres |
|||
|
Hourly output |
8000-3000 pieces(about 6200 pieces/hour as 100mm) |
|||
|
Speed adjustment |
1-6 grade |
|||
|
Drive method |
The two wheels is driving at one time |
|||
|
Note |
The stretcher is selective |
|||
|
Type |
B-02AS |
|||
|
Display mode |
LCD |
|||
|
Power |
Rated 150W |
|||
|
Applied core area |
0.1mm 2 -1.5mm 2 |
B-02BS |
B-02CS |
B-02DS |
|
Cutting length |
5mm-40mm-10m |
|||
|
Stripping length |
Top: 0-25mm , end: 0-15mm |
0.1mm 2 -2.5mm 2 |
0.1mm 2 -4.0mm 2 |
0.1mm 2 -6.0mm 2 |
|
Stripping pattern |
Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts. |
|||
|
Drive method |
The two wheels is driving at one time |
|||
|
Note |
The stretcher is selective |
|||
Warranty :
Under normal operating conditions, the Seller guarantees non-paid repairmen for a period of one year after the date of shipment. Otherwise, the Buyer shall pay for the cost of parts and parts transportation and technical personnel for damage caused by force majeure or accident or uncontrollable reasons. Normal blade wear and tear is not covered by the warranty, but we will ensure that the cutting quantity of each blade is at least 500,000 times.
FAQ
1) Are you ZhaoZhuang Automation Equipment a trader or a factory?
We are a factory s pecializing in the production of Wire Harness Processing Equipment , such as fully automatic terminal crimping machine, automatic wire stripping and cutting machine, automatic winding wire binding machine, automatic nylon tie belt machine, ultra quiet energy-saving terminal crimping machine, full automatic peeling, piercing terminals and twisting wire machine and so on.
2) Whether the equipment can be customized ?
We could provide you with custom-made equipment, according to the wire diameter, length, and other factors of production.
3) Is your price competitive?
We are the equipment manufacturer, not trading company, we will provide you with the best price.
4) Do you support the cooperation of foreign agents?
Yes, we can provide professional technical support and the most favorable agency price to help you create your own logo, brand, and help you find customers in your country.
