Quick Details
-
Grade:
-
steel
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
other
-
Brand Name:
-
guofeng
-
Construction:
-
1*7,7*7,1*19,7*19 and so on
-
Diameter:
-
0.7mm-15mm
-
Production Process:
-
semi-automatic
-
type:
-
Integrated Gym Trainer,sports equipment fitness wire rope
-
material of steel:
-
stainless steel,galvanized steel
-
MOQ:
-
500pcs
-
coating material:
-
PVC,PU,PE,nylon,etc
-
diameter of cable:
-
0.5-11mm
-
Certification:
-
ISO9001
-
keyword:
-
Galvanized Steel Wire
Quick Details
-
Steel Grade:
-
High Carbon Wire Rod
-
Type:
-
Other
-
Tolerance:
-
±1%
-
Grade:
-
steel
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
other
-
Brand Name:
-
guofeng
-
Construction:
-
1*7,7*7,1*19,7*19 and so on
-
Diameter:
-
0.7mm-15mm
-
Production Process:
-
semi-automatic
-
type:
-
Integrated Gym Trainer,sports equipment fitness wire rope
-
material of steel:
-
stainless steel,galvanized steel
-
MOQ:
-
500pcs
-
coating material:
-
PVC,PU,PE,nylon,etc
-
diameter of cable:
-
0.5-11mm
-
Certification:
-
ISO9001
-
keyword:
-
Galvanized Steel Wire
|

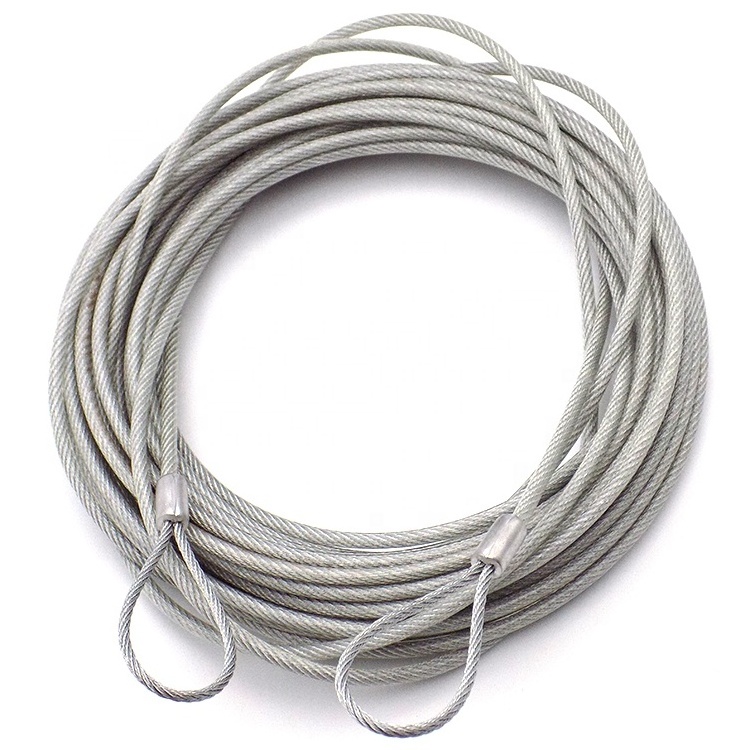

1.Diameter |
1.5MM |
Custom-made available |
|
2.construction |
7X7,etc |
|
|
3.material |
stainless steel |
|
|
4.MOQ |
500pcs |
|
| 5.length | 1.5m-5m | |
| 6.place of origin | china | |
|
7.coating
|
as requirement |
|
|
8.end parts of fittings |
a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc |
|
|
9.Lead time |
7days if there were enough material in stock |
|
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
|
application |
When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings |
|
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
|
how to choose material: 1stain 1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
|
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
|
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
|
7*7 |
0.393 |
650 (65kg) |
|
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
|
7*7 |
0.566 |
950(95kg) |
|
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
|
7*7 |
0.884 |
1500(150kg) |
|
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
|
7*7 |
1.273 |
2100(210kg) |
|
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
|
7*7 |
1.527 |
2650(265kg) |
|
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
|
7*7 |
2.264 |
3800(380)kg |
|
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
|
7*7 |
2.381 |
4100(410kg) |
|
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
|
7*19 |
3.901 |
6800(680kg) |
|
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
|
7*7 |
5.502 |
9600(960kg) |
|
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
|
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
|
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
|
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
|
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
