Quick Details
-
Size:
-
178*100*79mm
-
Material:
-
Stainless iron
-
Warranty:
-
1year
-
Structure:
-
Diaphragm Pump
-
Application:
-
car wash, agriculture sprayer
-
Pressure:
-
high pressure
-
voltage:
-
12v or 24v DC
-
Duty cycle:
-
Working intermittent
-
Theory:
-
Reciprocating Pump
-
Body material:
-
castlron
-
Port size:
-
3/8''(9.5mm)House Barb
-
Diaphragm material:
-
santoprene
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SAILINGFLO
-
Model Number:
-
FL-3202
-
Size:
-
178*100*79mm
-
Material:
-
Stainless iron
-
Warranty:
-
1year
-
Structure:
-
Diaphragm Pump
-
Application:
-
car wash, agriculture sprayer
-
Pressure:
-
high pressure
-
voltage:
-
12v or 24v DC
-
Duty cycle:
-
Working intermittent
-
Theory:
-
Reciprocating Pump
-
Body material:
-
castlron
-
Port size:
-
3/8''(9.5mm)House Barb
-
Diaphragm material:
-
santoprene
Product Description

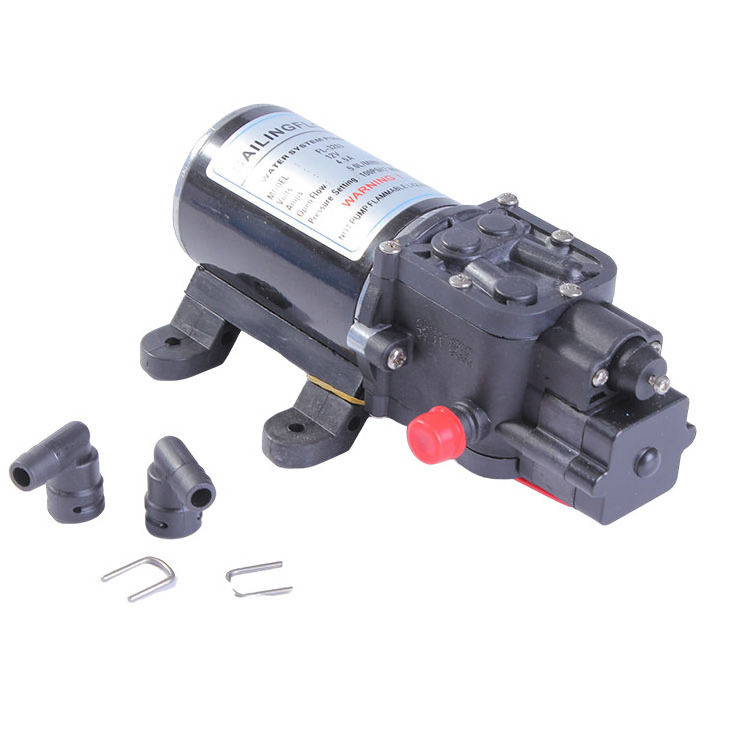

2 Chamber DC Diaphragm Pump FLO Series.
This series pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfect for water heater shower, caravans, RV, knapsack sprayer) , use it with fresh or salt water or other liquid with weak acid&alkaline is ok.
The pump with built-in pressure switch, can be working automatically when the tap turn on-off, also can do bypass system model.
The pump with built-in pressure switch, can be working automatically when the tap turn on-off, also can do bypass system model.
|
Feature:
|
|
|
|
Type:
|
2 Chamber Diaphragm
|
|
|
Port Size:
|
3/8" (9.5mm)Hose barb
|
|
|
Liquid:
|
140°F [60 °C] Max
|
|
|
Self-priming:
|
4.8feet [about 1.5M]
|
|
|
Max pressure
|
80psi
|
|
|
Run Dry:
|
Yes (within 30 second)
|
|
|
Motor:
|
Permanent Magnet, Intermittent
|
|
|
Duty Protection:
|
Automatic Restart
|
|
|
Volts:
|
12/24 VDC motors standard
|
|
|
Approved Certificate:
|
CE and RoHS
|
|
√ High volume flow rate, Built-in check valve
√ Permanent Magnet motor with longer lifetime
√ Antivibration pad,easy installation.
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellent resistant to chemical corrosion.
√ Antivibration pad,easy installation.
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellent resistant to chemical corrosion.
