The Hybrid micro inverter is powered on when sufficient DC voltage from the module is applied. The status LED will
start flashing after sufficient DC power is applied as an indication that the micro inverter is live.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PYSUN Micro Inverter
-
Model Number:
-
Solar Micro Inverter BDH
-
Input Voltage:
-
22-55V
-
Output Voltage:
-
230V
-
Output Current:
-
3.48A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
244*315*39
-
Certificate:
-
UL, FCC, CE, RoHS, EMC, ES, LVD
-
Weight:
-
4.5kg
-
Product Name:
-
PYSUN Hybrid Solar Micro Inverter for home or business
-
Recommended V Module:
-
600W*2
-
PV vervoltage rotection Category:
-
II
-
Battery Type:
-
LiFePO4
-
Cycle Life:
-
6000 Cycles
-
THD @ rated power:
-
<3%
-
Relative Humidity Range:
-
0-100%
-
Communications:
-
WiFi
-
Protection Class:
-
IP65
-
Cooling:
-
Natural convection
Quick Details
-
Output Type:
-
Single, Three Phase
-
Type:
-
DC/DC Converters, DC/AC Inverters
-
Inverter Efficiency:
-
97.3%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PYSUN Micro Inverter
-
Model Number:
-
Solar Micro Inverter BDH
-
Input Voltage:
-
22-55V
-
Output Voltage:
-
230V
-
Output Current:
-
3.48A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
244*315*39
-
Certificate:
-
UL, FCC, CE, RoHS, EMC, ES, LVD
-
Weight:
-
4.5kg
-
Product Name:
-
PYSUN Hybrid Solar Micro Inverter for home or business
-
Recommended V Module:
-
600W*2
-
PV vervoltage rotection Category:
-
II
-
Battery Type:
-
LiFePO4
-
Cycle Life:
-
6000 Cycles
-
THD @ rated power:
-
<3%
-
Relative Humidity Range:
-
0-100%
-
Communications:
-
WiFi
-
Protection Class:
-
IP65
-
Cooling:
-
Natural convection
|
Model
|
BDH-800 Micro Inverter
|
|
|
PV Input | PV
|
|
|
|
Recommended. PV Module
|
600W×2
|
|
|
MPPT Voltage Range
|
22V-55V
|
|
|
Startup Voltage
|
24V
|
|
|
Max. Input Voltage
|
60V
|
|
|
Max. DC Short Circuit Current
|
20A×2
|
|
|
PV Overvoltage Protection Category
|
II
|
|
|
Output | AC
|
|
|
|
Max. Continuous C utput ower
|
800VA
|
|
|
Rated AC Output Voltage
|
230V
|
|
|
Max. Continuous Output Current
|
3.48A
|
|
|
Nominal Frequency
|
50Hz/60Hz
|
|
|
Power Factor @ full load
|
＞0.99
|
|
|
THD @ rated power
|
＜3%
|
|
|
AC Overvoltage Protection Category
|
III
|
|
|
Max efficiency
|
97.30%
|
|
|
Input / Output | Battery
|
|
|
|
Nominal Capacity
|
54Ah
|
|
|
Nominal Energy
|
2.7648kWh
|
|
|
Nominal Voltage
|
51.2V
|
|
|
Working Voltage Range
|
44.8V~57.6V
|
|
|
Max Charge / Discharge Current
|
54A
|
|
|
Battery Data
|
|
|
|
Battery Type
|
LiFePO4
|
|
|
Cycle Life
|
6000 Cycles
|
|
|
Protection Class
|
IP65
|
|
|
Battery Voltage
|
40Vdc~60Vdc
|
|
|
Max Charge / Discharge current
|
30A/20A
|
|
|
Max Charge / Discharge power
|
1000W/1000W
|
|
|
Dimension (W*D*H)
|
521.5mm×25.5mm×130mm
|
|
|
Weight
|
23.5kg
|
|
|
General Data
|
|
|
|
Operating mbient Temperature Range
|
-40℃~+65℃
|
|
|
Relative Humidity Range
|
0—100%
|
|
|
Communications
|
WIFI
|
|
|
Protection Class
|
IP65
|
|
|
Cooling
|
Natural convection
|
|
|
Dimension (W*D*H)
|
244mm×315mm×39mm
|
|
|
Weight
|
4.5kg
|
|
Running status
|
LED
|
Status
|
Meaning
|
|
Green Light
Flashing every
two
seconds
|
Standby
|
OK
|
|
Red Light
Flashing every
two
seconds
|
Standby
|
Error
|
|
Orange Light
Flashing every
two
seconds
|
Standby
|
No communication
|
|
|
|
|
|
Green Light
Flashing every
one
seconds
|
Producing
|
Standby
|
|
Red Light
Solid
|
Producing
|
Grounding Fault
|
|
Orange Light
Flashing every
one
seconds
|
Producing
|
No communication
|
|

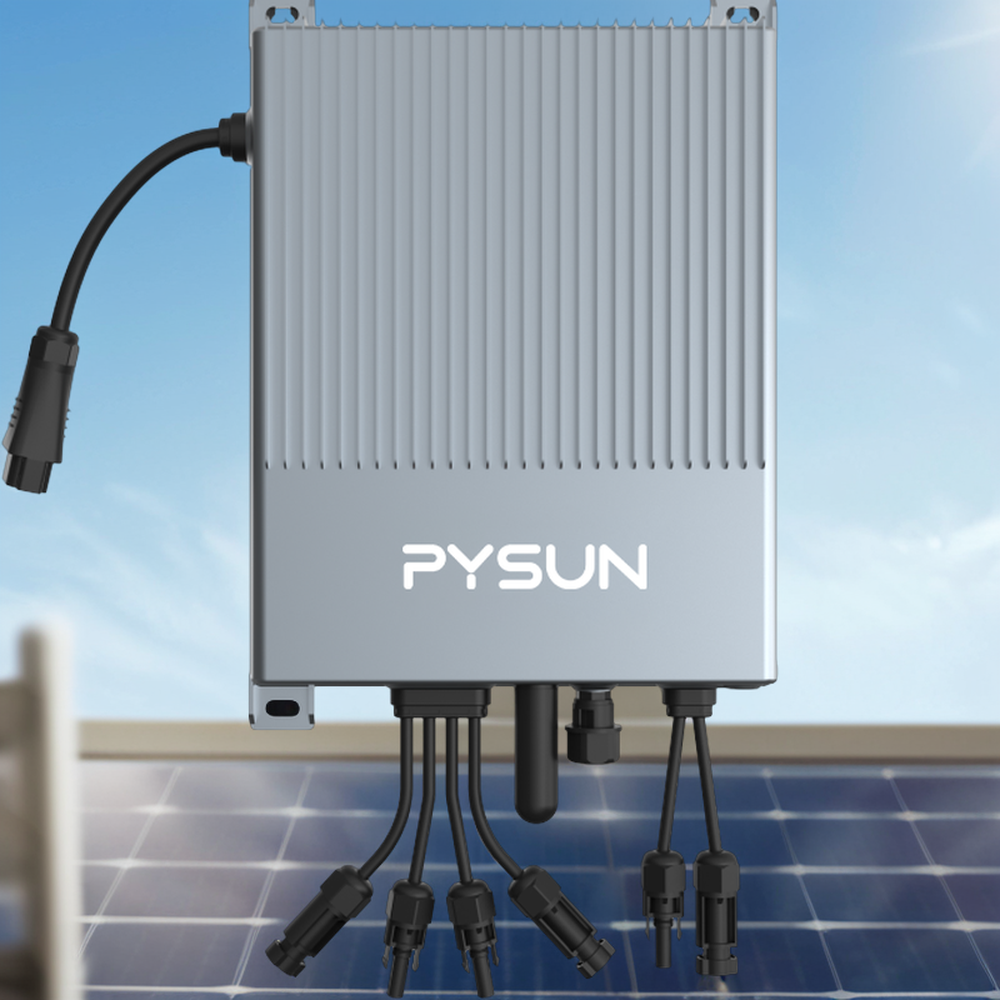

1
|
AC pigtail cable
|
|
2
|
PV 1 (-)
|
|
3
|
PV 1(+)
|
|
4
|
PV 2(-)
|
|
5
|
PV 2(+)
|
|
6
|
Battery (-)
|
|
7
|
Battery (+)
|
|
8
|
CAN communication port
|
|
9
|
WIFI bar
|
|
10
|
Indicator
|
Suzhou Joylive Intelligent Technology Co., Ltd.
was established in 2016 and is committed to "Smart Home Energy" solutions. The main products include
household energy storage systems, inverters, battery packs, portable power station, EV charger stations
, and villa lifts, etc. Our mission is to provide the safe, reliable, efficient and economical green energy solutions to the home users worldwide.
Our household energy storage system adopts safer LiFePO4 battery technology. In the structural design, it adopts high
protection level, anti-mistouch design and the other technologies which greatly improve the safety of the products.
Meanwhile, the users can check the operation status and power consumption of the equipment at any time via the App.
With EMC, IEC62109,VDE4105,G99, EN50549, UN38.3, NRS097 and other international certificates, the high-quality
operation and safety performance are ensured.Other advantages such as fast charging, easy installation, and long battery
life. Welcome inquiry!
Our portable power station product covers battery capacities from 300Wh to 5000Wh, and battery life from 1000+ cycles
to 6000+ cycles based on different types. The product integrates USB-A, USB-C, 220V AC sockets, solar charging, cigarette
lighter, and DC5521 various interfaces.
Customization is welcomed. If you have any interest on our products, or any question, please don’t hesitate to contact us.
Joylive, all for the joyful life!
Q:Do I need to reset the inverter if l want to connect it to a different Wi-Fi?
A:There is no need to reset the inverter. Our inverter operates similarly to a phone when configuring Wi-Fi. You can reconnect your inverter to a new Wi-Fi network, just as you did the first time.
Q:How to install Micro Inverter with WIFI?
A:Could you please give us the serial number of your inverter which is on the barcode sticker? We will send you a certain PDF manual.
Q:What should I do when an inverter stopped working and seems defective?
A:lf you are our end user:
Please provide your serial number which is on the barcode sticker. lf your inverter is off line, please connect it to the
internet, then we can check it from a distance to see what the problem is.
If you are our distributor:
Please provide the serial number and loop in the sales rep to provide more information about the broken inverter, for example, pictures or videos, or statistics from NEP viewer, our tech team will verify it.
Q:Occasionally, the inverter stops for about 5 minutes and gets restated again.ls this inverter defective?
A:No, the inverter isn't malfunctioning. The issue could be due to occasional power grid interruptions. According to the electric code, the inverter is designed to pause for approximately 5 minutes when a grid abnormality is detected, and then restart again.
Q:What should I do if the hot spot of the inverter shows 32cfffff instead of the serial number of this inverter?
A:Could you please provide us with the serial number of this inverter? You'll need to redact the serial number in our application. We'll send you the application as soon as possible.
Q:What should I do if my inverter sometimes gets offline?
A:Could you please verify your router settings and try to keep your inverter and router nearby? This can help communication become stable.
Q:How does your system work if the grid goes down? Do I still get electricity from my panels?
A：Our inverters are grid tie inverters. They won't work off-grid unless they are connected to an off grid battery inverter. You can contact our sales team to get more information about our hybrid solution or retrofit solution.
Q:How long is it permissible to retain my data?
A:Our database retains the output energy data for the last 7 days, along with monthly output for the past 12 months, and yearly output for the last 20 years.
A:There is no need to reset the inverter. Our inverter operates similarly to a phone when configuring Wi-Fi. You can reconnect your inverter to a new Wi-Fi network, just as you did the first time.
Q:How to install Micro Inverter with WIFI?
A:Could you please give us the serial number of your inverter which is on the barcode sticker? We will send you a certain PDF manual.
Q:What should I do when an inverter stopped working and seems defective?
A:lf you are our end user:
Please provide your serial number which is on the barcode sticker. lf your inverter is off line, please connect it to the
internet, then we can check it from a distance to see what the problem is.
If you are our distributor:
Please provide the serial number and loop in the sales rep to provide more information about the broken inverter, for example, pictures or videos, or statistics from NEP viewer, our tech team will verify it.
Q:Occasionally, the inverter stops for about 5 minutes and gets restated again.ls this inverter defective?
A:No, the inverter isn't malfunctioning. The issue could be due to occasional power grid interruptions. According to the electric code, the inverter is designed to pause for approximately 5 minutes when a grid abnormality is detected, and then restart again.
Q:What should I do if the hot spot of the inverter shows 32cfffff instead of the serial number of this inverter?
A:Could you please provide us with the serial number of this inverter? You'll need to redact the serial number in our application. We'll send you the application as soon as possible.
Q:What should I do if my inverter sometimes gets offline?
A:Could you please verify your router settings and try to keep your inverter and router nearby? This can help communication become stable.
Q:How does your system work if the grid goes down? Do I still get electricity from my panels?
A：Our inverters are grid tie inverters. They won't work off-grid unless they are connected to an off grid battery inverter. You can contact our sales team to get more information about our hybrid solution or retrofit solution.
Q:How long is it permissible to retain my data?
A:Our database retains the output energy data for the last 7 days, along with monthly output for the past 12 months, and yearly output for the last 20 years.
