Quick Details
-
Application:
-
construction
-
Rated Lifting Moment:
-
1400KN.m
-
Span:
-
7.9m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP BRAND
-
Weight (KG):
-
30600 kg
-
Certification:
-
CE/ISO9001
Quick Details
-
Rated Loading Capacity:
-
25Ton
-
Max. Lifting Height:
-
48.1m
-
Engine Brand:
-
top brand
-
Application:
-
construction
-
Rated Lifting Moment:
-
1400KN.m
-
Span:
-
7.9m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP BRAND
-
Weight (KG):
-
30600 kg
-
Certification:
-
CE/ISO9001
Contact Way
Sales Manager
Fairy Wang
Mobile / Whatsapp/ Facebook/Instagram/Wechat:
0086
18303636752
Products Description

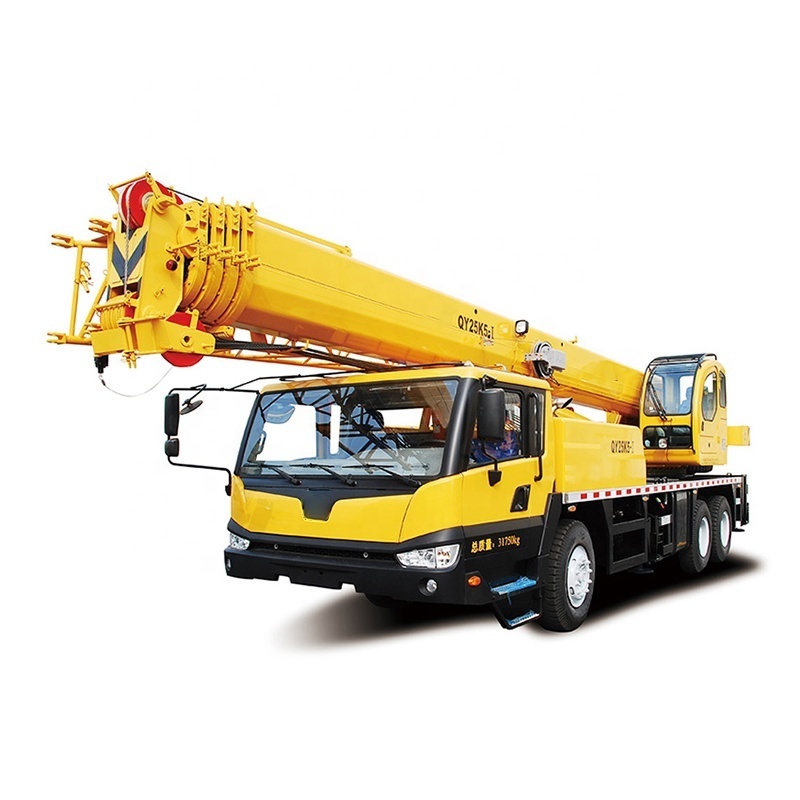

Chinese XUZHOU famous brand 25 tons mobile truck crane
XCMG original manufacturer QY25K5 25 ton Truck Crane.
QY25K5 truck crane is the product with high reliability inheriting XCMG classical and advanced technology about design and manufacture truck crane of many years and based on mature technology.It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oil field, industrial and mining enterprises, etc. Performance Characteristics:
1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity. The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully extended are also superior.
2. Plug-in boom head effectively increases the boom connect length and reduces boom deformation. Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom. 3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 90km/h.
Product Paramenters
|
Classificatory
|
Item
|
|
Unit
|
Parameter
|
|
|
Outline dimension
|
Overall length
|
|
mm
|
12000
|
|
|
|
Overall width
|
|
mm
|
2500
|
|
|
|
Overall height
|
|
mm
|
3380
|
|
|
Mass
|
Total mass in travel state
|
|
kg
|
31000
|
|
|
|
Axle load
|
Front Axle
|
kg
|
6440
|
|
|
|
|
Rear Axle
|
kg
|
24600
|
|
|
Travel performance
|
Travel speed
|
Max. travel speed
|
km/h
|
75
|
|
|
|
Turning diameter
|
Min. turning diameter
|
m
|
22
|
|
|
|
Min. ground clearance
|
|
mm
|
260
|
|
|
|
Approach angle
|
|
( )
|
16
|
|
|
|
Departure angle
|
|
( )
|
13
|
|
|
|
Braking distance (at speed of 30km/h)
|
|
m
|
10
|
|
|
|
Max. grade-ability
|
|
%
|
30
|
|
|
|
Fuel consumption for 100km
|
|
L
|
37
|
|
|
Power
|
Engine rated output
|
|
kW/(r/min.)
|
206/2200
|
|
|
|
Engine rated torque
|
|
N.m/(r/min.)
|
1112/1400
|
|
|
|
Engine rated speed
|
|
rpm.
|
2200
|
|
|
Base boom
|
m
|
10.4
|
|
|
|
|
Max.main boom+jib
|
m
|
48.8
|
|
|
|
