odontotecnico simlar dental microscope 520-A

odontotecnico simlar dental microscope 520-A

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: CORDER

Model Number:: ASOM-520-A

Product name:: dental microscope

Certificate:: ISO

Illumination:: LED Illumination

Magnification:: 2.5X~21X

Objective:: 180-300mm zoom lens

binocular:: 0-200 degree

Usage:: Dental oral maxillofacialsurgery zoom

Feature:: High resolution

Color:: wihte & blue

location:: chengdu

Quick Details

Warranty:: 3 years

Theory:: Stereo Microscope

Drawtube:: BINOCULAR

Place of Origin:: Sichuan, China

Brand Name:: CORDER

Model Number:: ASOM-520-A

Product name:: dental microscope

Certificate:: ISO

Illumination:: LED Illumination

Magnification:: 2.5X~21X

Objective:: 180-300mm zoom lens

binocular:: 0-200 degree

Usage:: Dental oral maxillofacialsurgery zoom

Feature:: High resolution

Color:: wihte & blue

location:: chengdu

Recommend Products

Products Description

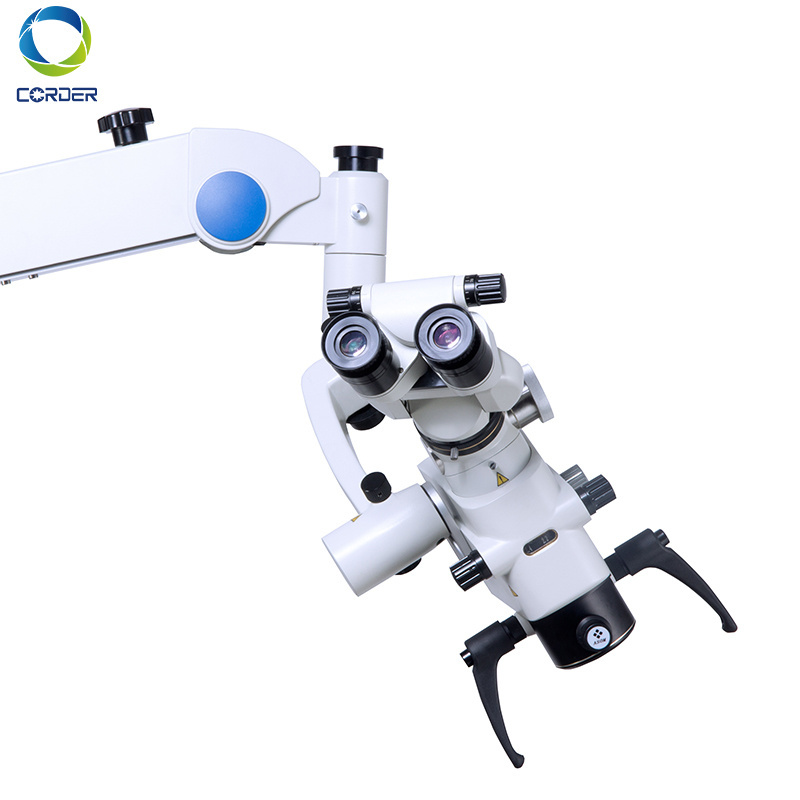

520-A high performance microscope is the perfect combination of excellent optical quality and comfortable handling.

Corder professional surgery microscope, you see a fashionable, smooth lines, beautiful shape with a sense of modern design of high-end microscope, and modern consulting room perfect fit. Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience. Treatment of dental pulp disease，Periodontal disease， restorative dentistry

Convenient positioning, Angle adjustment, comfortable feel.

The operating range of the professional-grade operating microscope zoom objective is 180-300mm, and the zoom objective lens has a
zoom range of up to 180mm, covering almost all the operating range required for oral treatment. By adjusting the zoom knob, you
can easily tighten the focus anywhere without changing the position of the microscope or your seat, making your job very easy.

German imported gas spring, the optimized force word structure enables you to move microscope any desired working Angle
conveniently and precisely.

Handle control switch, can be in progress at any time to take hd pictures.

A modular solution to fit your needs

Microscope sysems oter o brond new dimension in perormance, lexbilily and economy in diagnosics and surgery. Corder microscope packs a high level of performane in is smll pckage. lis compact design is tailored to oplimize use of imited operating room spoce.

1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.

Equipped with LED lighting system, to provide you with high-quality lighting, whether color resolution or color temperature are close to natural daylight, cost-effective, no maintenance. Less heat, less noise. You can also use the knob to control the brightness of the light and adjust it to an orange filter (to prevent curing of uv-curable resin materials and to extend the operating time).

Product Paramenters

Model	ASOM-520-A
Function	Dental

Electrical data
Power socket	220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ
Power consumption	40VA
Safety class	class I

microscope
Tube	0-200 degree inclinable binocular tube
Magnification	Ratio 0.4X~2.4X ,total magnification 2.5~21x ( F 180-300mm)
Stereo base	22mm
Objectives	F= 180mm-300mm
Objective focusing	120mm
Eyepiece	12.5x/ 10x
pupil distance	55mm~75mm
diopter adjustment	+6D ~ -6D
Feild of veiw	Φ78.6~Φ9mm
Reset functions	yes
Light source	LED cold light with life time >80000 hours, brightness >60000 lux , CRI>90
filter	OG530, Red free filter, small spot
Banlance arm	120° Banlance arm
Automatic switching device	Built-in arm
Light intensity adjustment	Using a drive knob on the optics carrier

Stands
Max extension range	1100mm
Base	680 × 680 mm
Transportation height	1476 mm
Balancing range	Min3 kg to max 8 kg load on the optics carrier
Brake system	Fine adjustable mechanical brakes for all rotation axes with detachable brake
System weight	68 kg
Stand options	Ceiling mount,Wall mount,Floor plate,Floor stand

Accessories
Knobs	sterilizable
Tube	90°binocular tube + 45°Wedge splitter, 45° binocular tube
Video adapter	Mobile phone adapter, beam splitter, CCD adapter, CCD, SLR digital camera adaper,camcorder adapter


Ambient conditions
Use	+10°C to +40°C
		30% to 75% relative humidity
		500 mbar to 1060 mbar atmospheric pressure
Storage	–30°C to +70°C
		10% to 100% relative humidity
		500 mbar to 1060 mbar atmospheric pressure

Limitations on use
The surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill microscope specifications
