- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
4332*1690*2173MM
-
Weight:
-
5300 KG
-
Marketing Type:
-
Hot Selling 2023
-
The Machines Classification:
-
Stone Crusher
-
Color:
-
Yellow
-
Product name:
-
mini mobile Jaw Crusher Machine
-
Keyword:
-
Jaw Crusher Crusher Jaw
-
Applicaton:
-
Stone Process
-
Max feeding size:
-
300mm (Adjust)
-
Certification:
-
CE ISO
-
Output size:
-
0-70mm
-
Material:
-
Hardox,NM500,Q690
-
Delivery Time:
-
3-5 days
Quick Details
-
Application:
-
Mining
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MONDE
-
Dimension(L*W*H):
-
4332*1690*2173MM
-
Weight:
-
5300 KG
-
Marketing Type:
-
Hot Selling 2023
-
The Machines Classification:
-
Stone Crusher
-
Color:
-
Yellow
-
Product name:
-
mini mobile Jaw Crusher Machine
-
Keyword:
-
Jaw Crusher Crusher Jaw
-
Applicaton:
-
Stone Process
-
Max feeding size:
-
300mm (Adjust)
-
Certification:
-
CE ISO
-
Output size:
-
0-70mm
-
Material:
-
Hardox,NM500,Q690
-
Delivery Time:
-
3-5 days

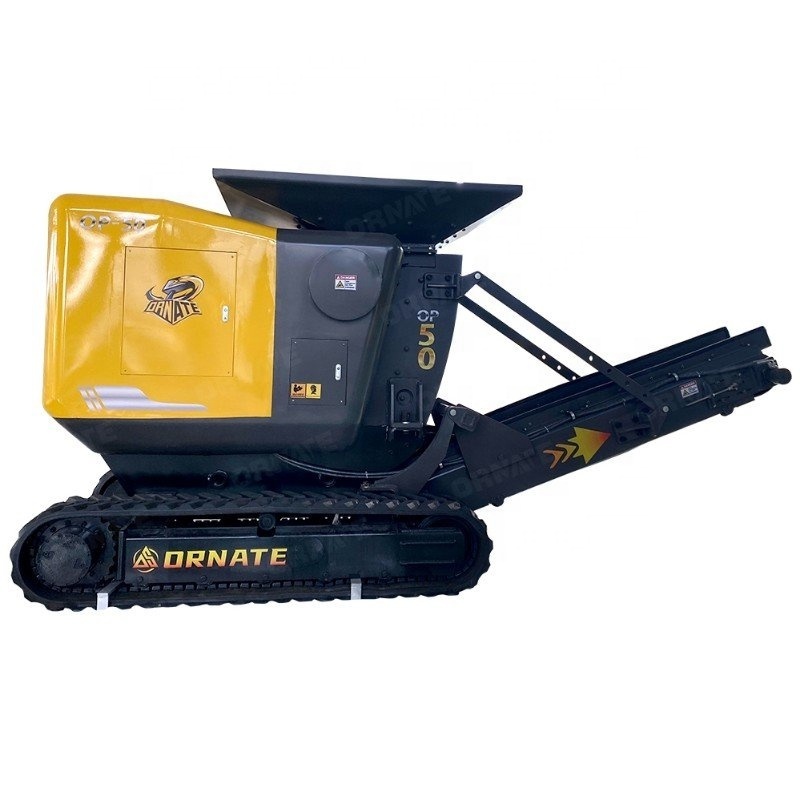

MONDE OP50 Milling Construction 30 - 60 t/h Mini Mobile Jaw Crusher Small Stone Crushing Machine Rock Crusher Machine For Sale
Product Description
Specification
|
ITEM
|
VALUE
|
|
|
MODEL
|
OP50-EL
|
|
|
Applicable Industries
|
Construction works , Energy & Mining
|
|
|
Condition
|
New
|
|
|
Type
|
Jaw Crusher
|
|
|
Application
|
Mining
|
|
|
Motor Type
|
Diesel Engine
|
|
|
Capacity(t/h)
|
Max.60t/h
|
|
|
Dimension(L*W*H)
|
4332*1690*2173MM
|
|
|
Weight
|
5300KG
|
|
|
Engine: Cummins (JAPAN)
Hydraulic pump: Rexroth (GERMANY)
Motor: Parker (AMERICAN)
Hydraulic valve: Rexroth (GERMANY)
Hydraulic fittings: Continental (GERMANY)
appliance: Schneider/ABB (FRANCE)
Structural parts:100% HARDOX (SWEDEN)
|
|
|
|
Feed Size (L*W )(mm)
|
400*600MM
|
|
|
Feeding Height(mm)
|
2180
|
|
|
Outside Height(mm)
|
1250
|
|
|
Warranty
|
1 Year
|
|
|
Max feeding size
|
300mm (Adjust)
|
|
|
Certification
|
CE ISO
|
|
|
Output size
|
0-70mm
|
|
|
Material
|
Hardox,NM500,Q690
|
|
|
Delivery Time
|
3-5 days
|
|
The hydraulic drive system and the optimal combination of each hydraulic execution unit make the power more powerful.
The hydraulic system with Yanmar Cummins engine as the main engine makes the power more efficient and energy-saving.
The system uses well-known brands such as Parker and Rexroth as hydraulic parts, making the power more cutting-edge.
Optimized cavity design, high output and large crushing capacity.
Powerful hydraulic motor drive: ensuring the maximum crushing capacity and highest reliability of the crusher.
The pad adjustment device is convenient and reliable; the adjustment range is large, which increases the adaptability of the equipment.
The standard batching hopper facilitates quick feeding and is optional.
Simple type, direct supply, making the crusher easy to crush quickly.
Smooth conveying speed and high torque make the conveyor load larger.
The herringbone structure of the conveyor belt greatly improves transportation efficiency.
The conveying height can be adjusted according to the needs of the sliding hole to change the conveying height.
Advantage
Structure: Light structure, high fatigue resistance and strong impact resistance.
Unique cavity type: Adopting a "V" symmetrical crushing cavity design, the crushing cavity is deep, the bite angle is small, the stroke is large, the processing capacity is large, the energy consumption is low, and the crushing ratio is large.
High-quality movable jaw assembly: The movable jaw assembly adopts a forged heavy-duty eccentric shaft, high-quality heavy-load spherical roller bearings, and a movable jaw body optimized by finite element analysis to ensure the impact resistance and high stability of the movable jaw assembly.
The labyrinth seal and centralized lubrication system ensure that the bearing grease is not contaminated, making the lubrication effective and stable.
The stable rotation speed increases the throughput and material crushing frequency, greatly increasing the output.
The size of the discharge opening can be set by adjusting the backing plate, which is safe, reliable, and convenient.
OEM/ODM: We can tailor-make crushing products of different scales to meet the needs of various complex working conditions.
Low noise and less dust.
Packing & Delivery
Packing for Mobile Crusher
1. We pack the products by car or container directly .
1. We pack the products by car or container directly .
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
3. We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help customer save the ocean freight.
