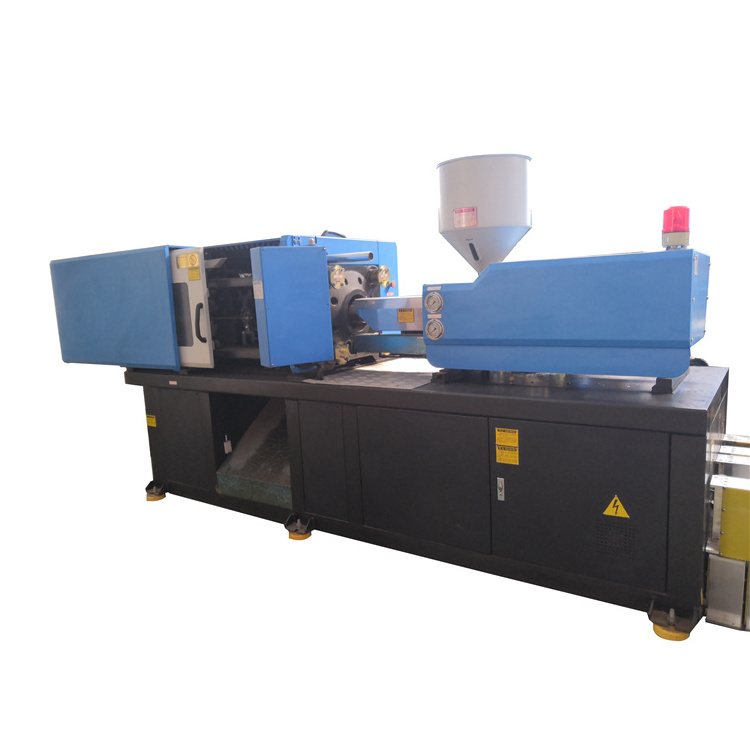

- Product Details
- {{item.text}}
Quick Details
-
Ejector Force(kN):
-
633 kN
-
Theoretical Shot Volume(cm³):
-
245 cm³
-
Injection Rate (g/s):
-
110 g/s
-
Injection Weight (g):
-
223 g
-
Screw diameter (mm):
-
40 mm
-
Distance between Tie Bars:
-
410*410
-
Weight (KG):
-
4600 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
YD-1280
-
Brand Name:
-
Yuanda
-
Power (kW):
-
19.8 kW
-
Injection pressure:
-
119Mpa
-
Injection Stroke:
-
195mm
-
Screw speed:
-
0-190rpm
-
Heating power:
-
8.7KW
-
Oil Tank Capacity:
-
120L
-
Injection Rate:
-
139g/s
-
Injection Weight:
-
282g
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
410mm
-
Distance between Tie Bars(Height)(mm):
-
410mm
-
Ejector Stroke(mm):
-
360 mm
-
Ejector Force(kN):
-
633 kN
-
Theoretical Shot Volume(cm³):
-
245 cm³
-
Injection Rate (g/s):
-
110 g/s
-
Injection Weight (g):
-
223 g
-
Screw diameter (mm):
-
40 mm
-
Distance between Tie Bars:
-
410*410
-
Weight (KG):
-
4600 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
YD-1280
-
Brand Name:
-
Yuanda
-
Power (kW):
-
19.8 kW
-
Injection pressure:
-
119Mpa
-
Injection Stroke:
-
195mm
-
Screw speed:
-
0-190rpm
-
Heating power:
-
8.7KW
-
Oil Tank Capacity:
-
120L
-
Injection Rate:
-
139g/s
-
Injection Weight:
-
282g
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support
Product Description
bottles
Features
- Save of energy.
- High speed system response and short moulding cycle.
- Largely decrease system oil pressure.
- Reduce mould open and close cash to extend service time of machine and mouldtool.
- To extend service life of oil piping system,to reduce main-tenance possibilities and save maintenance cost.
- Higher requirement for hy-draulic oil;provides with im-ported high quality oil strainer.
