Quick Details
-
Product name:
-
C41-150
-
Weight of falling parts:
-
150KG
-
Max. hit energy:
-
2.5kj
-
Application:
-
Fasterner Part
-
Height of working area:
-
370mm
-
Anvil block size:
-
200*85mm
-
Malleable square steel length:
-
130*130mm
-
Malleable circular steel length:
-
145mm
-
Motor speed:
-
1470rpm
-
Keyword:
-
power hammer forging
Quick Details
-
Place of Origin:
-
China
-
Machine Type:
-
forging machine
-
Weight (KG):
-
5060
-
Product name:
-
C41-150
-
Weight of falling parts:
-
150KG
-
Max. hit energy:
-
2.5kj
-
Application:
-
Fasterner Part
-
Height of working area:
-
370mm
-
Anvil block size:
-
200*85mm
-
Malleable square steel length:
-
130*130mm
-
Malleable circular steel length:
-
145mm
-
Motor speed:
-
1470rpm
-
Keyword:
-
power hammer forging
Products Description
Features
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Specification
|
Item
|
C41-150
|
C41-250
|
|
Weight of falling parts(KG)
|
150
|
250
|
|
Max.hit energy(KJ)
|
2.5
|
5.6
|
|
Height of working area(mm)
|
370
|
450
|
|
Hit number(min)
|
180
|
140
|
|
Dimension of top and bottom die surface(L*W mm)
|
200*85
|
220*100
|
|
Max. square steel can be forged(Diameter mm)
|
130*130
|
145*145
|
|
Max. round steel can be forged(Diameter mm)
|
Φ 145
|
Φ 175
|
|
Rate power(kw)
|
15
|
22
|
|
Speed of motor(r.p.m)
|
1470
|
1470
|
|
Total weight(kg)
|
5060
|
8200
|
|
Overall dimensions(L * W * H mm)
|
2080*1240*2350
|
2875*1405*2570
|

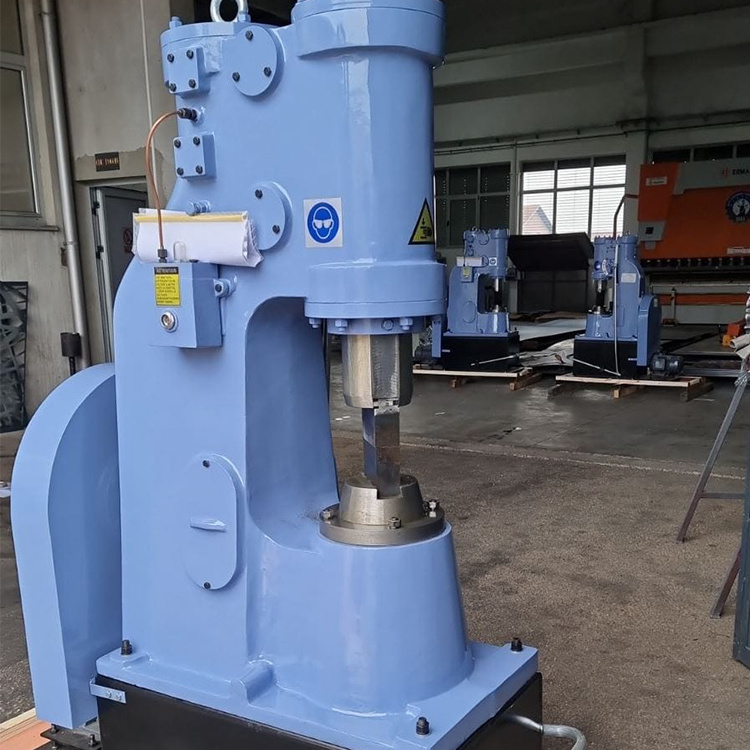

Details Images
