Quick Details
-
Brand Name:
-
Hiwinstar
-
Voltage:
-
220/380v
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1800*1600*2000mm
-
Applicable Industries:
-
furniture workshop
-
Weight (KG):
-
2000
-
Name:
-
hinge hole drilling machine
-
Model:
-
MXZS086
-
Weight:
-
2000kg
-
Color:
-
Changed
-
Slot Cutter Holder:
-
15-16mm
-
Working Door Width:
-
600-1100mm
-
Lock Motor:
-
1.5kw
-
Lock Groove:
-
12-13mm
-
Working Thickness:
-
80mm
-
Overall dimensions:
-
1800*1600*2000mm
Quick Details
-
Application:
-
Woodworking
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
China
-
Brand Name:
-
Hiwinstar
-
Voltage:
-
220/380v
-
Power:
-
3kw
-
Dimension(L*W*H):
-
1800*1600*2000mm
-
Applicable Industries:
-
furniture workshop
-
Weight (KG):
-
2000
-
Name:
-
hinge hole drilling machine
-
Model:
-
MXZS086
-
Weight:
-
2000kg
-
Color:
-
Changed
-
Slot Cutter Holder:
-
15-16mm
-
Working Door Width:
-
600-1100mm
-
Lock Motor:
-
1.5kw
-
Lock Groove:
-
12-13mm
-
Working Thickness:
-
80mm
-
Overall dimensions:
-
1800*1600*2000mm

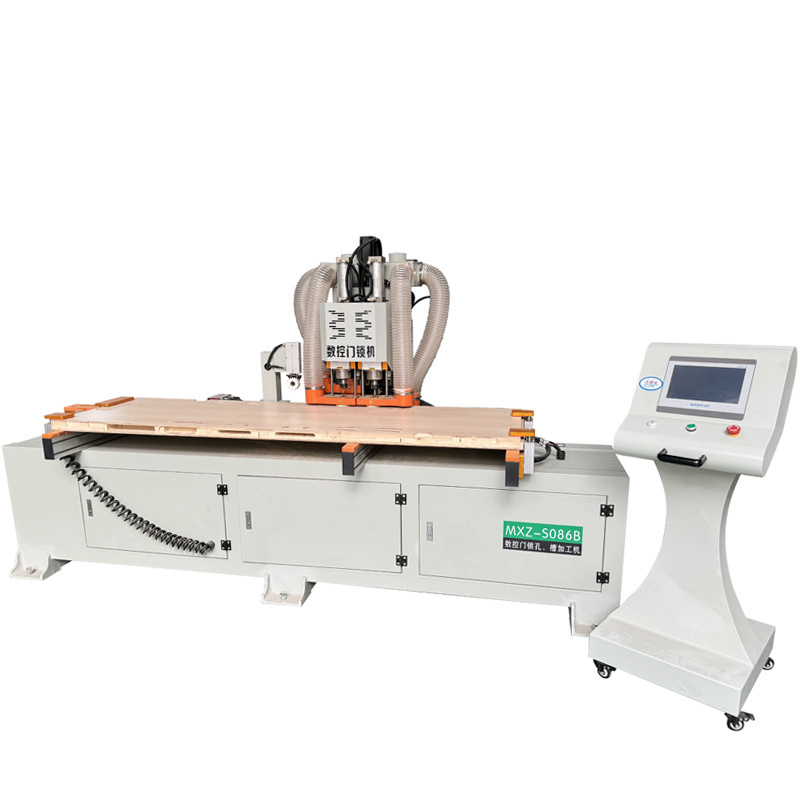

CNC Door Lock Hole Drilling Hinge Boring Machine Door Hole Slotting Machine Lock Hole mortising machine
Product Description
|
Width of Processed Material (mm)
|
Max.: 1220; Min.: 200
|
|
Thickness of Processed Roughcast(mm)
|
Max.: 50; Min.: 5
|
|
Min. Processing Length (mm)
|
600
|
|
Spindle Diameter (mm)
|
85
|
|
Spindle Speed (r/min)
|
2600
|
|
Saw Blade Diameter (mm)
|
255
|
|
Power of Spindle Motor (kw)
|
18.5(able to extend to 37)
|
|
Power of Feeding Motor (kw)
|
1.5(able to extend to 3)
|
|
Total Power of Installed Motor (kw)
|
20(able to extend to 40)
|
|
Feeding Speed (m/min.)
|
0-12
|
|
Pair number/Number of feeding rollers
|
7(front 4 back 3)/14
|
|
Outer Diameter of Scrap Pipe (mm)
|
150
|
|
Overall Dimensions (mm)
|
2300 x 1800 x 1250
|
|
Weight (kg)
|
2300
|
Features
1,With high quality electrical appliances, the performance is stable and reliable.
2,The ruler, it is convenient and accurate to control the size of the door lock, the groove and the hinge.
3,The body is made of high quality steel plate and is processed by high temperature processing.
4,Barometer,high accuracy and long service life.
