Quick Details
-
Forming Time:
-
2m/min
-
Welding Mode:
-
seam welding
-
Welding Diameter:
-
2.0-2.2mm
-
Use:
-
round duct welding
-
Voltage:
-
380V,50HZ,3P
-
Weight (KG):
-
2500 KG, 2500KG
-
Power (kW):
-
40KW
-
Product name:
-
Stichwelder
-
Model:
-
DMSW-30-1/1Z
-
Thickness:
-
0.4-1.2mm
-
Range length:
-
50-1000mm
-
Overlap:
-
6mm
-
copper diameter:
-
2.0-2.2mm
-
Max Power:
-
40KW
-
Speed:
-
2m/min
-
Dimension:
-
2650X800X1000
Quick Details
-
Core Components:
-
roller
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
DDM
-
Forming Time:
-
2m/min
-
Welding Mode:
-
seam welding
-
Welding Diameter:
-
2.0-2.2mm
-
Use:
-
round duct welding
-
Voltage:
-
380V,50HZ,3P
-
Weight (KG):
-
2500 KG, 2500KG
-
Power (kW):
-
40KW
-
Product name:
-
Stichwelder
-
Model:
-
DMSW-30-1/1Z
-
Thickness:
-
0.4-1.2mm
-
Range length:
-
50-1000mm
-
Overlap:
-
6mm
-
copper diameter:
-
2.0-2.2mm
-
Max Power:
-
40KW
-
Speed:
-
2m/min
-
Dimension:
-
2650X800X1000
Product Overview
2022 NEW Design DDM Brand DMSW -30-1Z/6 HAVC Duct Seam Welding and Stitch Welder Machine
Machine Features
Stichwelder
This machine is a semi automatic stitchseam welding machine, designed for welding round duct / pipe / drums in large diameter range. Based on the seam welding machines,
this machine is a special one whose electrode arms are lengthened to weld HVAC pipes.
It is controlled by PLC and easy to operate.
1.Large diameter range: 100mm~1000mm length：50-1000mm
2.High production efficiency
3. Good welding quality because of adopting double-wire technology
4. Reasonable structure and simple maintenance: compact structure; welding electrodes and main driving mechanism are of simple assembly.
5. Fast change welding pipe diameter
6. PLC & inverter control the welding speed and stitch welding pitch

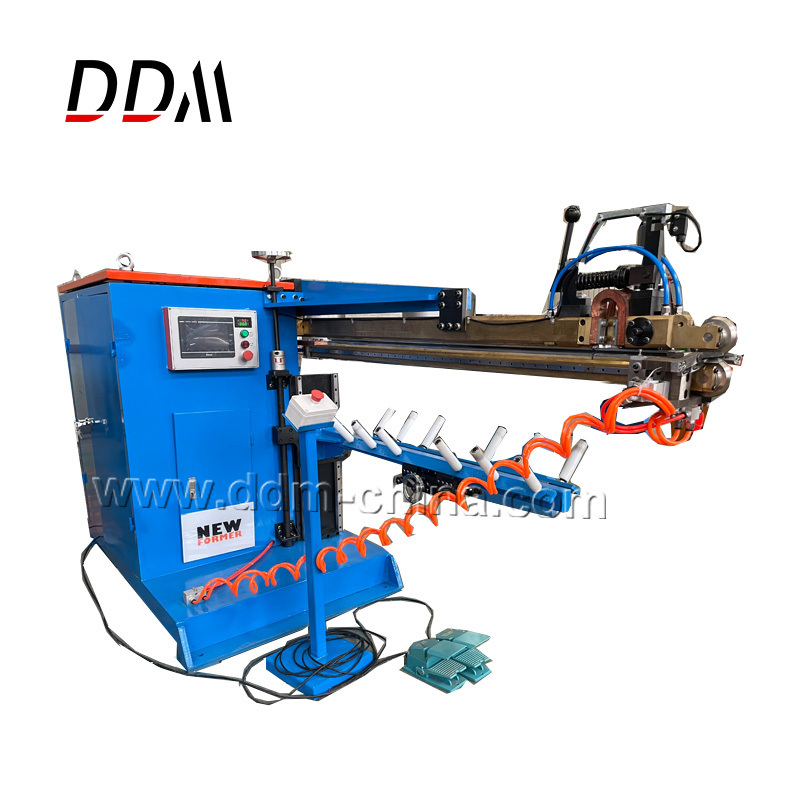

The over view of
DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
The back view of
DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
The working station of
DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
1000W water cooling machine for our
DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
The high quality eletrical parts and controller panel of
DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
Before delivery ,our stichwelder machine will be well packed by export wooden case
Machine Parameters
|
Technical Data
|
|
|
|
Model
|
SW-30-1Z
|
|
|
thickness (mm)
|
0.4-1.2mm
|
|
|
Range length
|
50-1000mm
|
|
|
Overlap
|
6mm
|
|
|
Speed
|
2m/min
|
|
|
copper diameter
|
Φ2.0-2.2mm
|
|
|
Max Power
|
40KW
|
|
|
Weight
|
2500KG
|
|
|
Dimension (MM)
|
2650X800X1000
|
|
Packing & Delivery
Customer Photos
DDM customer are coming from all over the world such as Egypt ,Canada ,Belgium , USA,Israel ,Argentina ,Denmark ,Vietnam ,Indonesia ,Malaysia and so on . We warmly welcome your coming and cooperate with you .
