Quick Details
-
Voltage:
-
220/380 V
-
Power:
-
800/1500/2200 W
-
Application:
-
1600-3000mm, Multipurpose
-
Rated Power:
-
220/380 v
-
Saw Blade Diameter:
-
Customized
-
Max. Cutting Depth:
-
Customized
-
Dimensions:
-
Customized
-
Production:
-
100 sets per year
-
voltage:
-
220/380 V
-
transmission port:
-
nework port
-
Product name:
-
oscillating knife kiss knife with 3 years warranty
-
rated power:
-
11kw
-
Cutting material:
-
Multiple materials
-
MOQ:
-
1pce
-
Cutting thickness:
-
0-200mm
-
Size:
-
customizable
Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
500
-
Brand Name:
-
realtop
-
Voltage:
-
220/380 V
-
Power:
-
800/1500/2200 W
-
Application:
-
1600-3000mm, Multipurpose
-
Rated Power:
-
220/380 v
-
Saw Blade Diameter:
-
Customized
-
Max. Cutting Depth:
-
Customized
-
Dimensions:
-
Customized
-
Production:
-
100 sets per year
-
voltage:
-
220/380 V
-
transmission port:
-
nework port
-
Product name:
-
oscillating knife kiss knife with 3 years warranty
-
rated power:
-
11kw
-
Cutting material:
-
Multiple materials
-
MOQ:
-
1pce
-
Cutting thickness:
-
0-200mm
-
Size:
-
customizable

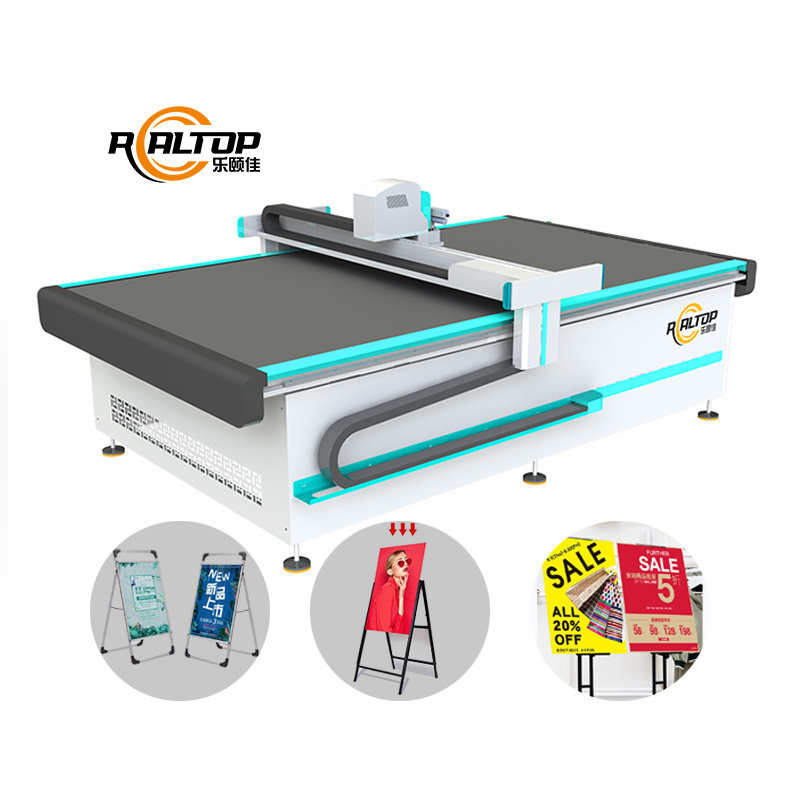

REALTOP CNC cutting machine
uses a high-precision digital cutting system, which can realize full size cutting, kiss cutting, slot milling, punching, inkjet, drawing marking and other functions; the
tool head
has a full range of types:
oscillating knife, pneumatic knife, high-power vibrating knife, circular knife , V cutting knife, drag knife, creasing wheel, dotted line knife, punching, brush, etc
.
;
visual positioning
includes: small CCD camera mark point positioning, panoramic camera recognition positioning, projection positioning, etc.
The machine adopts blade physical cutting, the cutting section is straight and tidy, no burr, no air pollution, no burnt edge, no fluffy, no discoloration, and the cutting speed is 3-5 times faster than the laser cutting machine.The type of cutter can be adjusted to cut in different ways depending on the thickness of the material.
1.
High-precision servo motor, optional Delta or Panasonic brand, waterproof protection level IP67, multi-functional real-time automatic gain adjustment; with super strong vibration suppression function.
2.
The whole machine is welded with thick-walled seamless steel structure and treated with high-temperature tempering. It is finished by CNC machining center to ensure high precision, no deformation and long service life.
3.
Magnesium-aluminum alloy vacuum adsorption table, after fluorocarbon PVDF powder spraying, anodic oxidation, hard oxidation and other processes, durable and non-deformable, high flatness, uniform suction, the same power fan suction increased by 30%
4.
The vacuum adsorption pump adopts an integrated aviation aluminum shell, which is fire-proof, corrosion-resistant, and rust-free. The tube has a built-in silencer sponge, which is cushioning and noise-reducing, and reduces noise by 35%.
5.
Equipped with infrared induction blocking, anti-collision and emergency stop devices to ensure safety. The cutting area has an intelligent infrared sensor stop function. If there is an obstacle or the hand reaches in during the processing, the machine will automatically pause to ensure safety; there are anti-collision functions on both sides of the beam, and the collision will stop to ensure safety; in addition, the equipment is equipped with an emergency stop. button, and continue cutting in situ after emergency stop.
Product Paramenters
|
Model
|
RT-D2516/RT-S2516
|
|
working area
|
1600*2500MM
|
|
Machine size
|
3450×2300×1250MM
|
|
Rated power
|
9kw
|
|
Fixed model
|
Flated working table
|
|
Multifunctional head
|
Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
|
|
Safety device
|
Using infrared sensors, responsive, safe and reliable.
|
|
translational velocity
|
800-1200mm/s
|
|
Cutting thickness
|
20mm-80mm/s(according to different cutting materials)
|
|
Cutting materials
|
Leather, all kinds of clothing flexible material, Sponge composite leather, PVC,
soft glass, Silicon, rubber |
|
Repeated accuracy
|
≤0.1mm
|
|
Transmission system
|
imported (Digital servo motor, linear guide, synchronous belt, ball screw)
|
|
Instruction system
|
HP-GL compatible format
|
|
Voltage
|
380V±10%
|
|
Other configuration
|
Delta servo motor, Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump
|
Details Images
Product configuration
Tools and Applications
Applicable materials:
leather, fabric, textile, cardboard, plastic box, fiberglass, corrugated cardboard, sticker, film, foam board, rubber, cloth, gasket material, clothing cloth, shoe material, luggage material, non-woven fabric, carpet, sponge , PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composite materials
. Widely used in soft home furnishings, automotive interiors, carpets and floor mats, packaging, bags, shoe materials, clothing, graphic advertising and printing, sports and outdoor products, sealing pads, composite materials and other industries.
Machine cutting effect
