Quick Details
-
Weight:
-
8800 kg
-
Dimension(L*W*H):
-
7520*2550*4300mm
-
Power:
-
91kw
-
Engine Capacity:
-
NATIONAL 2
-
Name:
-
concrete mixer Truck for Sale
-
Driving type:
-
4WD
-
Brand:
-
MAXTONE
-
Engine:
-
yuchai 4108
-
Color:
-
Customized
-
Drum capacity:
-
6.5m3
-
Transmission:
-
4/4
-
Power type:
-
Diesel Engine Concrete Mixer
-
Rotation speed of drum:
-
15-20RPM
-
Drum lifting time:
-
3.5s
Quick Details
-
Marketing Type:
-
NEW Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MAXTONE
-
Weight:
-
8800 kg
-
Dimension(L*W*H):
-
7520*2550*4300mm
-
Power:
-
91kw
-
Engine Capacity:
-
NATIONAL 2
-
Name:
-
concrete mixer Truck for Sale
-
Driving type:
-
4WD
-
Brand:
-
MAXTONE
-
Engine:
-
yuchai 4108
-
Color:
-
Customized
-
Drum capacity:
-
6.5m3
-
Transmission:
-
4/4
-
Power type:
-
Diesel Engine Concrete Mixer
-
Rotation speed of drum:
-
15-20RPM
-
Drum lifting time:
-
3.5s
Product Description

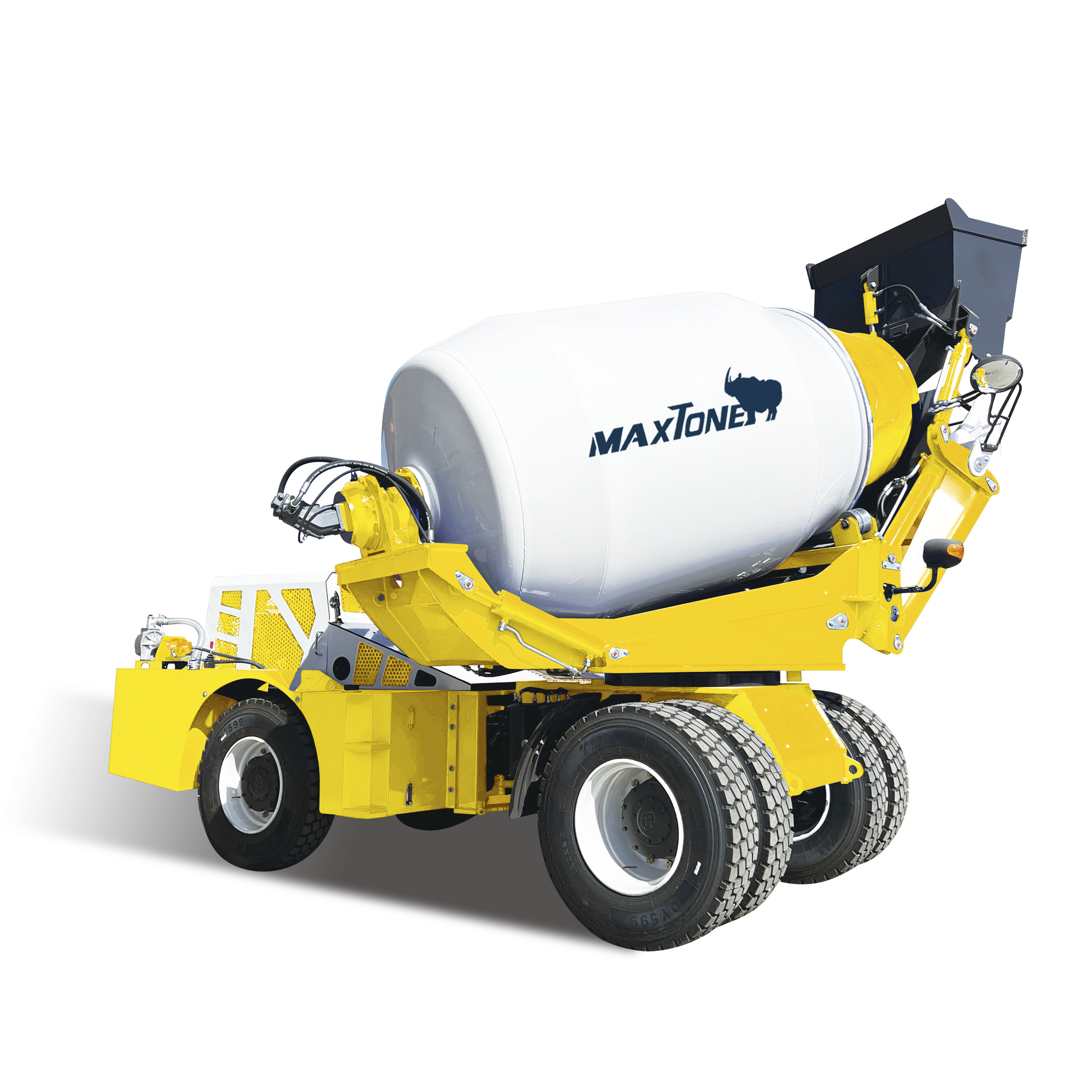

MAXTONE 3CBM 4CBM 5CBM concrete mixer truck with yuchai engine
Product Application
4.0 m3 Diesel self loading concrete mixer Propelled Small Concrete Mobile Truck for Sale
1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,
rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.
In the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing
tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In
addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing
drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed
the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material
spilled, the series of problems such as driving safety.
4.0 m3 Diesel self loading concrete mixer Propelled Small Concrete Mobile Truck for Sale
1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,
rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.
In the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing
tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In
addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing
drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed
the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material
spilled, the series of problems such as driving safety.
Specification
|
Vehicle parameters
|
1
|
Integrated structure, rear wheel steering
|
The drum rotates 270 ° and can be lifted and lowered
|
|
|
2
|
overall dimension (L*W*H)
|
7520*2700*3200mm
|
|
|
3
|
wheel base (mm)
|
2350mm
|
|
|
4
|
wheel tread
|
2030mm
|
|
|
5
|
Curb Weight（kg）
|
8800kg
|
|
|
6
|
（km/h）Maximum speed (km / h)
|
40
|
|
|
7
|
（°）Maximum climbing gradient
|
45°
|
|
|
8
|
Steering angle
|
28°±1.5°
|
|
|
9
|
Braking form
|
air brake
|
|
Engine
|
10
|
YN48GBZ
|
yuchai
|
|
|
11
|
type
|
4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged
|
|
|
12
|
replacement
|
4.5
|
|
|
13
|
kW/r/min
|
91kw/2400
|
|
|
14
|
Nm/rpm
|
445-455/1400-1600
|
|
|
15
|
Emission standards
|
national 2
|
|
Transmission system |
16
|
torque converter
|
280
|
|
|
17
|
gearbox mode
|
280
|
|
|
18
|
gears
|
4 forward shift 4reverse shift |
|
|
19
|
maximum speed
|
40km/h
|
|
Mixing and unloading
|
20
|
Geometric volume of drum
|
6.5m³
|
|
|
21
|
Rotation speed of drum
|
15-20 rpm
|
|
|
22
|
Concrete output
|
3.5-4m³/Batch
|
|
|
23
|
Drum lift time
|
3.5s
|
|
Hydraulic system
|
24
|
reducer
|
4Fopen type
|
|
|
25
|
motor
|
BM5E4
|
|
|
26
|
Rotary reducer
|
WE25
|
|
Brake system
|
27
|
service brake
|
Air brake |
|
|
28
|
parking brake
|
Manual disk brake
|
|
Tyre |
29
|
type specification
|
1670-20 Rail tyre
|
|
|
30
|
front tyre pressure
|
0.5Mpa
|
|
|
31
|
rear tyre pressure
|
0.4Mpa
|
Packing & Delivery
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure,
mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just
like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as
cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement
mixer truck.
mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just
like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as
cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement
mixer truck.
