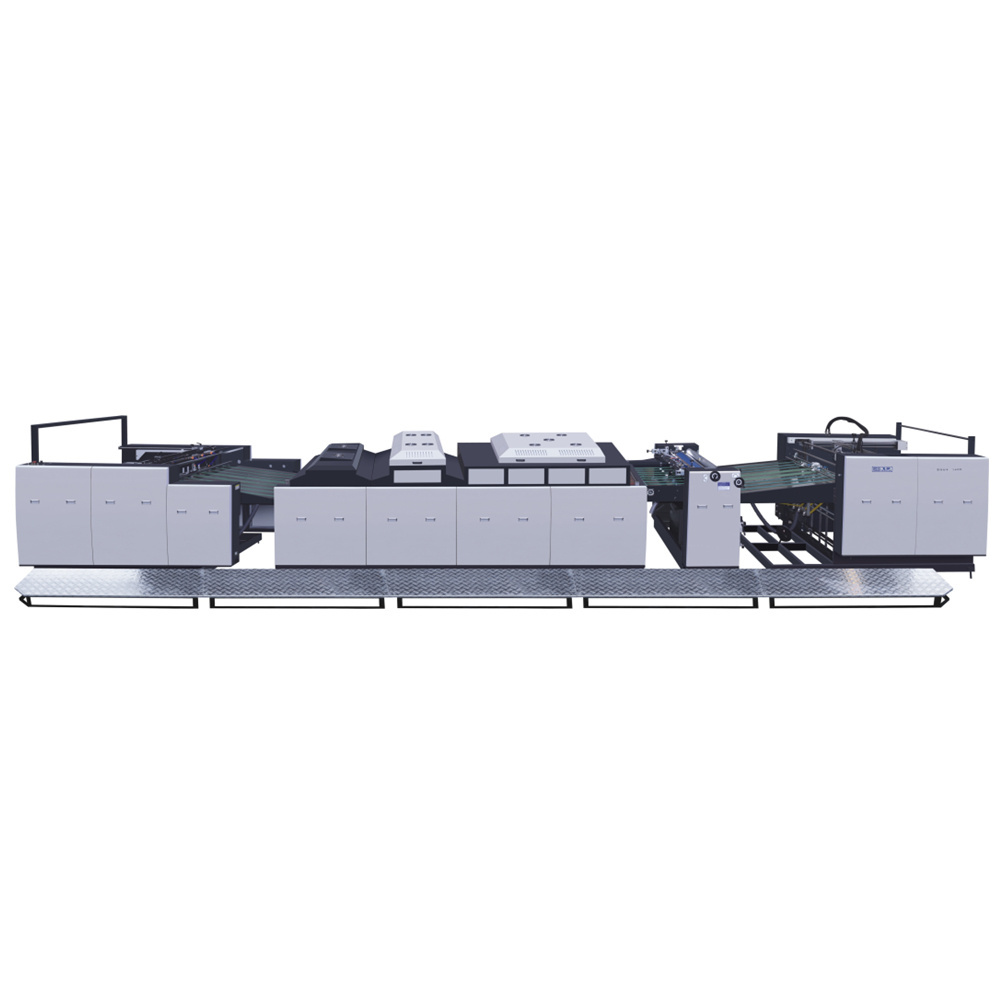

Automatic Double Head Anilox Roller UV Coating Machine SGUV-1200A

Automatic Double Head Anilox Roller UV Coating Machine SGUV-1200A

FOB Reference Price: Get Latest Price

≥1 Sets

US $38000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 11000x2000x2000mm

Weight:: 6500 KG

Model:: SGUV-1200A

Max.Paper Size:: 1200*1000mm

Min.Paper Size:: 300*300mm

Paper Thickness:: 80~450g/m2

Speed:: 0~80m/min

Total Power:: 50Kw

UV Lamp:: 3pcsx9.75Kw

IR Lamp:: 18pcsx1.5Kw

Paper feed heigh:: 1100mm

Paper stack height:: 1050mm

Marketing Type:: New Product 2022

Quick Details

Voltage:: 380V/220V

Place of Origin:: Zhejiang, China

Brand Name:: NEW STAR

Dimension(L*W*H):: 11000x2000x2000mm

Weight:: 6500 KG

Model:: SGUV-1200A

Max.Paper Size:: 1200*1000mm

Min.Paper Size:: 300*300mm

Paper Thickness:: 80~450g/m2

Speed:: 0~80m/min

Total Power:: 50Kw

UV Lamp:: 3pcsx9.75Kw

IR Lamp:: 18pcsx1.5Kw

Paper feed heigh:: 1100mm

Paper stack height:: 1050mm

Marketing Type:: New Product 2022

Product Overview

SGUV-1040A/1200A Fully Automatic High-speed Coating Machine

SGUV-800/1200 Automatic double head anilox roller uv coating machine is the first domestic product developed by Feihua, which subverts the traditional rubber roller coating. The latest anilox coating process: completely solve the phenomenon of orange peel and grain!

FEATURES AT A GLANCE

• Faster speed 80m/min • UV curing & IR drying

• 3 uv lamps &18 IR lamps •U se uv oil ,water oil, soft touch oil..

• Larger rubber roller 165mm diameter • Deal with thin paper to 80gsm •Customized

PRODUCT SPECIFICATIONS

No	Item	SGUV-1040A	SGUV-1200A	SGUV-1200A-L
1	Max. Sheet Size	1040*1000mm	1200*1000mm	1200*1450mm
2	Min. Sheet Size	270*270mm	300*300mm	300*300mm
3	Sheet Weight	80~450g/m2	80~450g/m2	80~500g/m2
4	Speed	0~80m/min	0~80m/min	0~80m/min
5	Power	45Kw	50Kw	50Kw
6	UV Lamp	3pcsx8Kw	3pcsx9.75Kw	3pcsx9.75Kw
7	IR Lamp	18pcsx1.5Kw	18pcsx1.5Kw	18pcsx1.5Kw
8	Paper feed height	1100	1100	1100
9	Paper stack height	1050	1050	1050
10	Weight	6000kg	6500kg	6700kg
11	Dimension	10000x1800x2000mm	11000x2000x2000mm	13000x2200x2000mm

PRODUCT CONFIGURATION

1：Large diameter anilox roller direct coating, no need to transfer rubber roller, can ensure the thickness of the oil on the paper, even without orange peel 2：The closed scraper is used to circulate the oil inside the oil circuit without outflow of oil, which can effectively reduce oil loss and volatilization. 3：The upper and lower rollers are driven by independent motors, without mechanical gaps, which can ensure no streaks in coating. 4：The pressing of the rollers is controlled by servo motors, the thickness of the gap is directly set on the touch screen, and the gap is controlled by the servo motor, which makes the control more accurate and the operation easier! 5：High level of intelligence, one-key start acceleration, more convenient and efficient than traditional segmented control! 6：The shaft head is 55mm large, which is more stable and firmer than the traditional 35mm under high speed, without deformation, and good coating effect!
