Quick Details
-
Voltage:
-
220v
-
Name:
-
mining diesel mobile air compressor
-
Other Name:
-
top quality mining diesel mobile air compressor
-
Country of Origin:
-
China
-
Way breathing:
-
supercharged and mid-cooling
-
model:
-
LGCY SERIES
-
CERT:
-
CE,ROHS
-
Contact:
-
Cathy
-
Skype::
-
kaishan02
-
Mobile::
-
0086 15978040758
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAISHAN
-
Model Number:
-
LGCY Series
-
Voltage:
-
220v
-
Name:
-
mining diesel mobile air compressor
-
Other Name:
-
top quality mining diesel mobile air compressor
-
Country of Origin:
-
China
-
Way breathing:
-
supercharged and mid-cooling
-
model:
-
LGCY SERIES
-
CERT:
-
CE,ROHS
-
Contact:
-
Cathy
-
Skype::
-
kaishan02
-
Mobile::
-
0086 15978040758
The specification for LGCY series for car and motorcycle diesel air compressor:
|
Model |
Capacity |
Working Pressure |
Working Power |
Weight KG |
Diesel Engine |
Dimension mm |
|||
|
m³/min |
cfm |
bar |
psi |
KW |
HP |
||||
|
LGCY-6/7 |
6 |
212 |
7 |
102 |
70 |
95 |
1400 |
YCD4B22-95 |
3750×1920×1700 |
|
LGCY-7.5/7 |
7.5 |
265 |
7 |
102 |
58 |
79 |
1850 |
YC4D80-K20 |
3900×1920×1700 |
|
LGCY-9/7 |
9 |
318 |
7 |
102 |
70 |
95 |
1850 |
YC4D95Z-K20 |
3900×1920×1700 |
|
LGCY-10/7 |
10 |
353 |
7 |
102 |
70 |
95 |
1900 |
YC4D95Z-K20 |
3900×1920×1700 |
|
LGCY-10/10 |
10 |
353 |
10 |
145 |
93 |
126 |
1900 |
4BTA3.9-C125 |
3900×1920×1900 |
|
LGCY-8.5/14 |
8.5 |
300 |
14 |
203 |
93 |
126 |
1900 |
4BTA3.9-C125 |
3900×1920×1900 |
|
LGCY-12/7 |
12 |
424 |
7 |
102 |
93 |
126 |
2050 |
4BTA3.9-C125 |
3900×1980×1900 |
|
LGCY-12/7A |
12 |
424 |
7 |
102 |
92 |
125 |
2050 |
YC4A125Z-T21 |
3900×1980×1900 |
|
LGCY-9/14 |
9 |
318 |
14 |
203 |
110 |
150 |
2380 |
YC6B150Z-K20 |
4080×1980×2350 |
|
LGCY-10/13 |
10 |
353 |
13 |
189 |
110 |
150 |
2380 |
YC6B150Z-K20 |
4080×1980×2350 |
|
LGCY-12/10 |
12 |
424 |
10 |
145 |
110 |
150 |
2380 |
YC6B150Z-K20 |
4080×1980×2350 |
|
LGCY-12/10Q |
12 |
424 |
10 |
145 |
110 |
150 |
2380 |
QC6108ZG |
4080×1980×2350 |
|
LGCY-12/12 |
12 |
424 |
12 |
174 |
118 |
160 |
2380 |
EQ6BT5.9-C160 |
4080×1980×2350 |
|
LGCY-12/13 |
12 |
424 |
13 |
189 |
132 |
179 |
2500 |
6BTA5.9-C180 |
4080×1980×2350 |
|
Trailer Design: 2-wheel |
|||||||||
The Main KAISHAN Air Compressor:
1) Screw Air Compressors ( Air delivery:0.8m³/min -72m³/min;Work pressure:8-13Bar;Power:7.5Kw-400kw)
2) Mining Air Compressors (Air delivery:1.8m³/min-13m³/min ;Work pressure:5-7Bar;Power:11Kw-108Kw)
3) Diesel Driven Portable Screw Air Compressors (Air delivery:6m³/min-39m³ ,Work pressure:7-35Bar )
4) Motor Powered Portable Screw Air Compressors (Air delivery:2m³/min-35m³ ,Work pressure:7-46Bar )
5) Diesel Driven Piston Mining Air Compressors ( Air delivery: 2m³/min-13m³/min, Power: 11-105Kw)

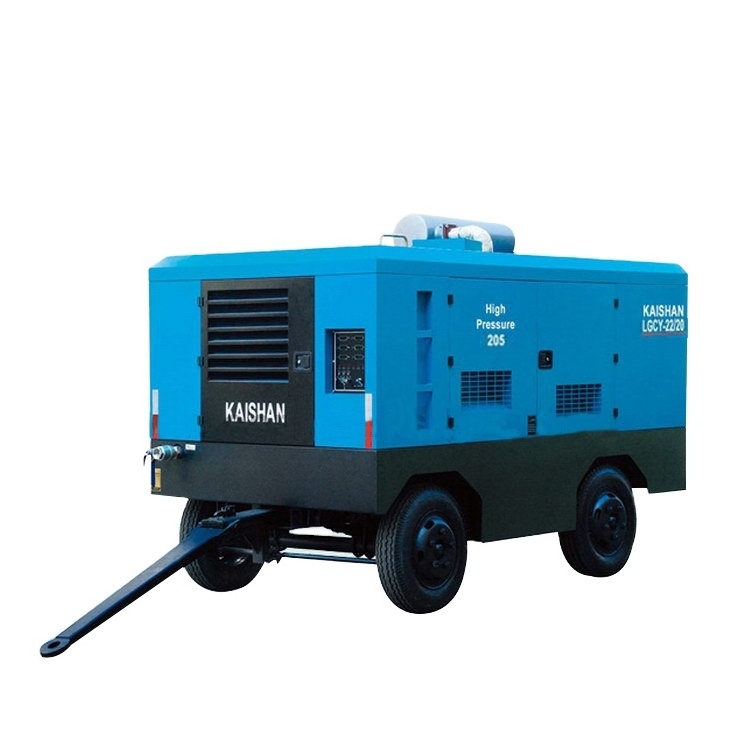

Products Picture
Our factory:
Why you choose us?
1, high reliability, less compressor parts, no wearing parts, so it is reliable, long life, overhaul interval can be up to 4 to 80000 hours.
2, convenient operation and maintenance: high degree of automation, the operator don't have to be trained for a long time, can realize unmanned operation.
3, power balance is good: there is no unbalanced force of inertia, smooth high-speed operation, can achieve without basic operation, especially suitable for used as a mobile compressor, small volume, light weight, covers an area of less.
4, strong adaptability, have forced the characteristics of the gas, almost is not affected by the exhaust pressure and volume flow can keep high efficiency in a wide speed range.
5, Low operating cost: Simple structure and reliable operation will guarantee your low operating cost.
6. Energy saving: single machine can save energy by 15%-30%, which system can save more than double.
All advanced parts keep high quality air compressor
1.Air end
Larger rotors are designed to ensure the air ends have slower rotor speeds to deliver compressed air more efficiently than smaller air ends.
This translates into energy cost savings and a longer unit life.
The rotor profile minimizes leakage and the tighter clearances achieved through state of the art manufacturing processes results in higher efficiency and improved lubrication.
2.Drive Motor
IP54 rated, standard efficiency, IEC motors are used on every kaishan compressor. Over sized cast iron conduit boxes make connections easy. The industry best motor grease is used to protect motor bearings, provide longer lubricant life, greater shear stability and the best resistance to rust and corrosion.
3.Inlet Valve
The Inlet Valve is the major air flow control component in the compressor unit.It controls air flow to the compressor,either by opening, throttling, or closing completely in response to pressure transducer controls.
4.Drive Coupling
The latest European designed spider couplings are used to guarantee the reliability and transmission efficiency and provide
vibration free power transmission for quiet and maintenance free operation.
5.Oil Separation System
The three stage separation system, the result of extensive research and development, supplies high quality compressed air. The separation tank has two different separation stages: Centrifugal and gravity. The third stage separation is provided by a high performance, long life coalescent separator filter. This system limits oil vapors carryover to below 3ppm.
6.Kerry Air Filter
Kaishan series compressors use the Kerry air filter which provides filtration to less than 3 microns Ultra Web nanofiber technology.
This technology ensures clean, unrestriced airflow for optimal compressor operation. It has 99.99% filtration efficiency and fully
complies with ISO 5011 standards. Strategic air inlet port positioning receives the coolest air as it enters the cabinet to ensure
superior volumetric efficiency.
7. Cooling System
Kai shan series compressors utilize a slient,efficient and easily accessible cooling system.A wide radial fan produces greater static pressure across the coolers at low rotational speed,assuring considerable energy saving and low operating sound
.
1.Outside package:Standard export wooden cases
2.Inner package:Stretch film
