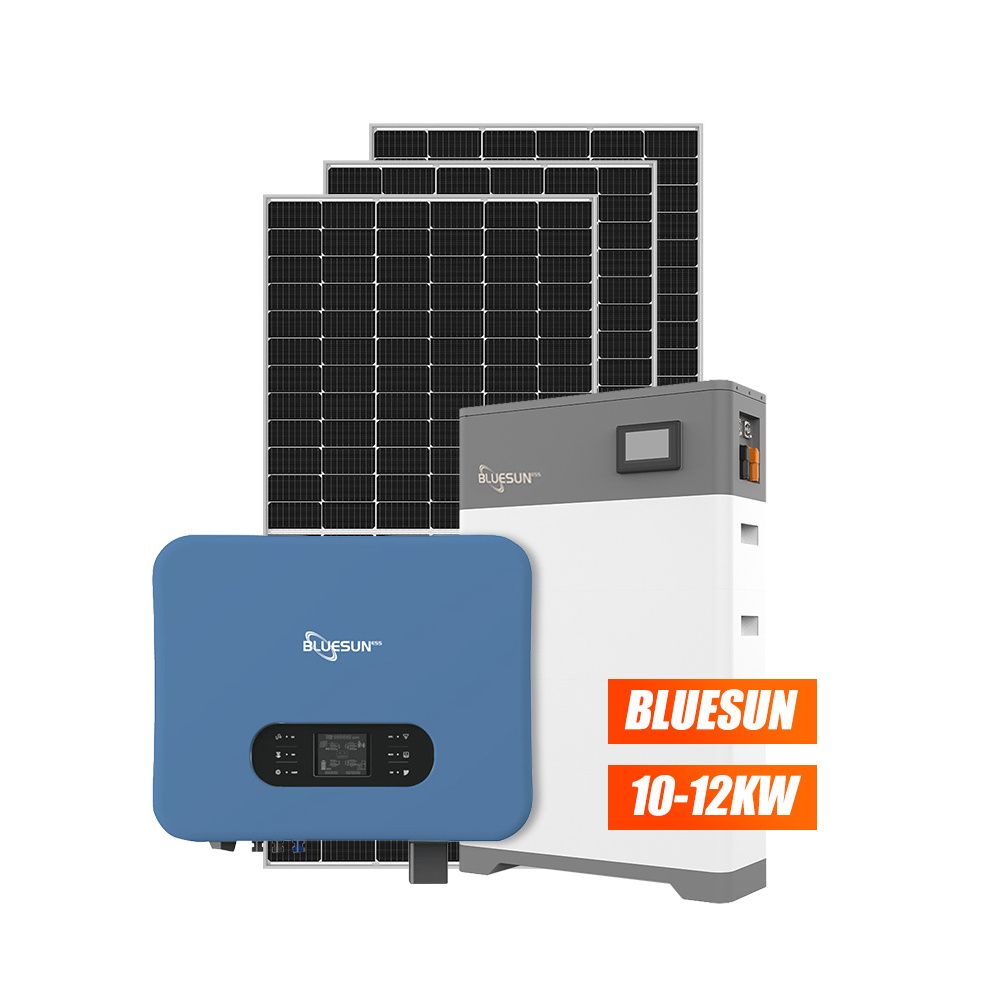

12kw full solar kit 12kw 12 kilowatt lithium ion batteries system hybrid inverter solar system residential house use

12kw full solar kit 12kw 12 kilowatt lithium ion batteries system hybrid inverter solar system residential house use

FOB Reference Price: Get Latest Price

≥12000 Pieces

US $0.72

≥300000 Pieces

US $0.54

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT, PWM

Mounting Type:: Ground Mounting

Certificate:: CE/TUV/EN50549/PEA/MEA/ ISO9001/14001

Place of Origin:: Anhui China

Brand Name:: BLUESUNESS

Model Number:: BSM12KW-HY

Load Power (W):: 12KW

Output Voltage (V):: 380V/400V/480V

Output Frequency:: 50HZ/60HZ

Work Time (h):: 24 hours

Solar system:: hybrid inverter solar system

Output:: Three phase 380V

Load:: light,refrigerator,air conditioner, factory machine etc

Mounting support:: Flat / pitch roof and ground

Solar system protect:: Overloads, Low Voltage and Under Voltage (alarm)

Battery type:: Lithium Batery/AGM/GEL Battery

Use life:: 25 years

Communication:: RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)

function:: Power support

Keyword:: solar panel systems home hynrid

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT, PWM

Mounting Type:: Ground Mounting

Certificate:: CE/TUV/EN50549/PEA/MEA/ ISO9001/14001

Place of Origin:: Anhui China

Brand Name:: BLUESUNESS

Model Number:: BSM12KW-HY

Load Power (W):: 12KW

Output Voltage (V):: 380V/400V/480V

Output Frequency:: 50HZ/60HZ

Work Time (h):: 24 hours

Solar system:: hybrid inverter solar system

Output:: Three phase 380V

Load:: light,refrigerator,air conditioner, factory machine etc

Mounting support:: Flat / pitch roof and ground

Solar system protect:: Overloads, Low Voltage and Under Voltage (alarm)

Battery type:: Lithium Batery/AGM/GEL Battery

Use life:: 25 years

Communication:: RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)

function:: Power support

Keyword:: solar panel systems home hynrid

Product Description

10KW Hybrid Solar Power System Configuration
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	18 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	12.8kWh Stacked Battery	1 pcs
4	Hybrid Inverter	10kva	1pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	200m
7	Connector	Solar Connector	10 pairs
8	Tools Bag	Solar Installation tools	1 set

12KW Hybrid Solar Power System Configuration
Item	Model	Description	Quantity
1	Solar Panel	Half cut mono solar panel 560w	20 pcs
2	Combiner Box	Optional	1 pc
3	Lithium Battery or Lead Acid Battery	15.36kWh Stacked Battery	1pc
4	Hybrid Inverter	12kva	1pc
5	Mounting Support	Roof/Ground	1 set
6	Cable	4mm² PV cable	200m
7	Connector	Solar Connector	10 pairs
8	Tools Bag	Solar Installation tools	1 set
Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends on Your Final Installation Conditions and Requirements. More Details Please Send Inquiry to Us

Configuration detail

Mono Solar Panel

> BSM560M10-72HPH > Size:2278*1134*35mm > Application Class: A

> IEC 61215 / IEC 61730 /CE

>25 Years Warranty

PV Combiner Box

>Cross Section: 4mm ² , 6mm ² Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.

Hybrid Solar Inverter

> BSE6KL1 > 10/12KW Hybrid inverter

> 380/400V 50Hz three phase > With WIFI+CT > Built in MPPT controlle

Stackable Lithium Battery

> BSM4850HP

> 51.2V 50AH

>B attery cables + BMS high voltage box + base.

PV Mounting System

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system

PV Tools

>Wire Cable Cutter & Stripper,
>Disassembly Tool

Bluesun Factory

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.

Global Exhibitions

INTER SOLAR NORTH AMERICA

SOLARTECH INDONESIA

SOLAR SOLUTIONS INT

CANTON FAIR

THE FUTURE ENERGY SHOW PHILIPPINES

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CNF	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
