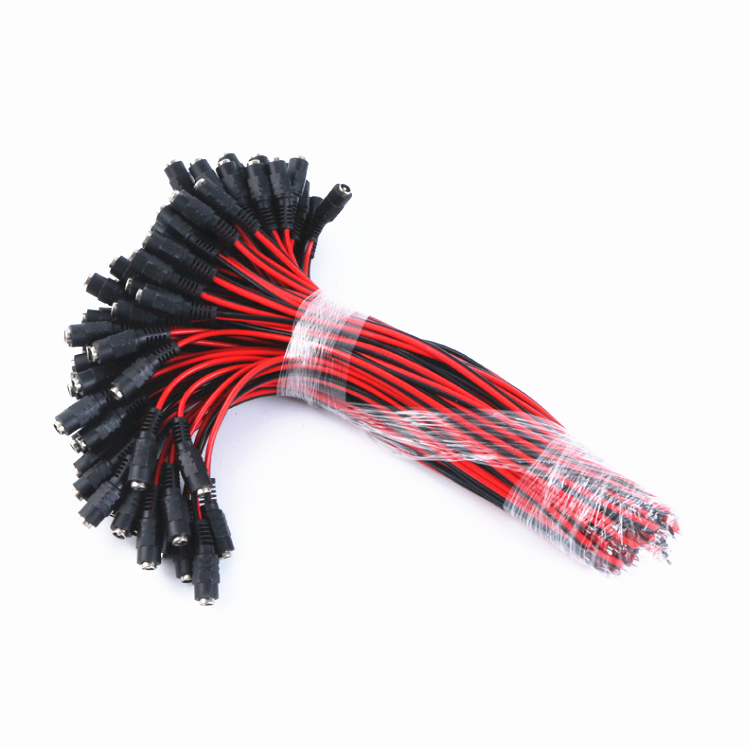

Bajeal 12V 5.5x2.1mm Female DC Power Socket Jack Connector Cable Plug Wire for CCTV LED Light

Connect power to your device in tight spaces with this Straight DC power extension. Professional appearance
for power cabling

1. Rated temperature: -20 ° C — + 90 ° C

2. Rated voltage: 300V

3. Connector polarity: internal positive + (red line); external negative-(through black line)

4. Conductor specifications: 0.3mm (0.3 square)

5. Insulation: PVC sheath

6.Bus length: 26cm;

7. Transmission voltage: 1V-38V;

8. Transmission current: maximum transmission 5A (12V);

9.Transmission power: the maximum transmission power is 60W;

10. Plug specifications: 5.5mm outer diameter and 2.1mm inner diameter;
11. Plastic material: new high-quality PVC arc extinguishing plastic;

12. Wire material: full copper wire, low heat generation;
13. Connector material: using high-quality copper conductor, galvanized flame retardant;

14.Use of connector: power cord transfer;
15. Connector characteristics: with tuning fork buckle, good contact points, no bad contact will occur.

16. National standard standard power connector size: 5.5mm outer diameter, 2.1mm inner diameter, DC power extension cord

17. Surveillance camera power connector / LED power connector / monitor connector accessories

18.Single or stranded bare copper or tinned copper wire (0.12mm-0.4mm for tinned copper wire)

19.Transmission characteristics: tuning fork snap, good contact point, no bad contact will occur!

20. Long life, easy to soft and easy to install, with excellent high temperature and low temperature resistance, excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, long service life.

1. The product has a thick core and can withstand 12V-24V voltage. The outer skin is made of plastic and other materials. The body is soft and bendable. It adopts high-fidelity design and good transmission power effect. The color of the wire: red and black.

2. The side with the red wire is positive, and the side with the black wire is negative.

3. Scope of application: 2.1DC power input and output connections for security, surveillance equipment, surveillance cameras, routers, switches, broadband cats,etc.
