Quick Details
-
Place of Origin:
-
China
-
Power (kW):
-
22
-
Weight (KG):
-
4800
-
Marketing Type:
-
New Product 2023
Quick Details
-
Machine Type:
-

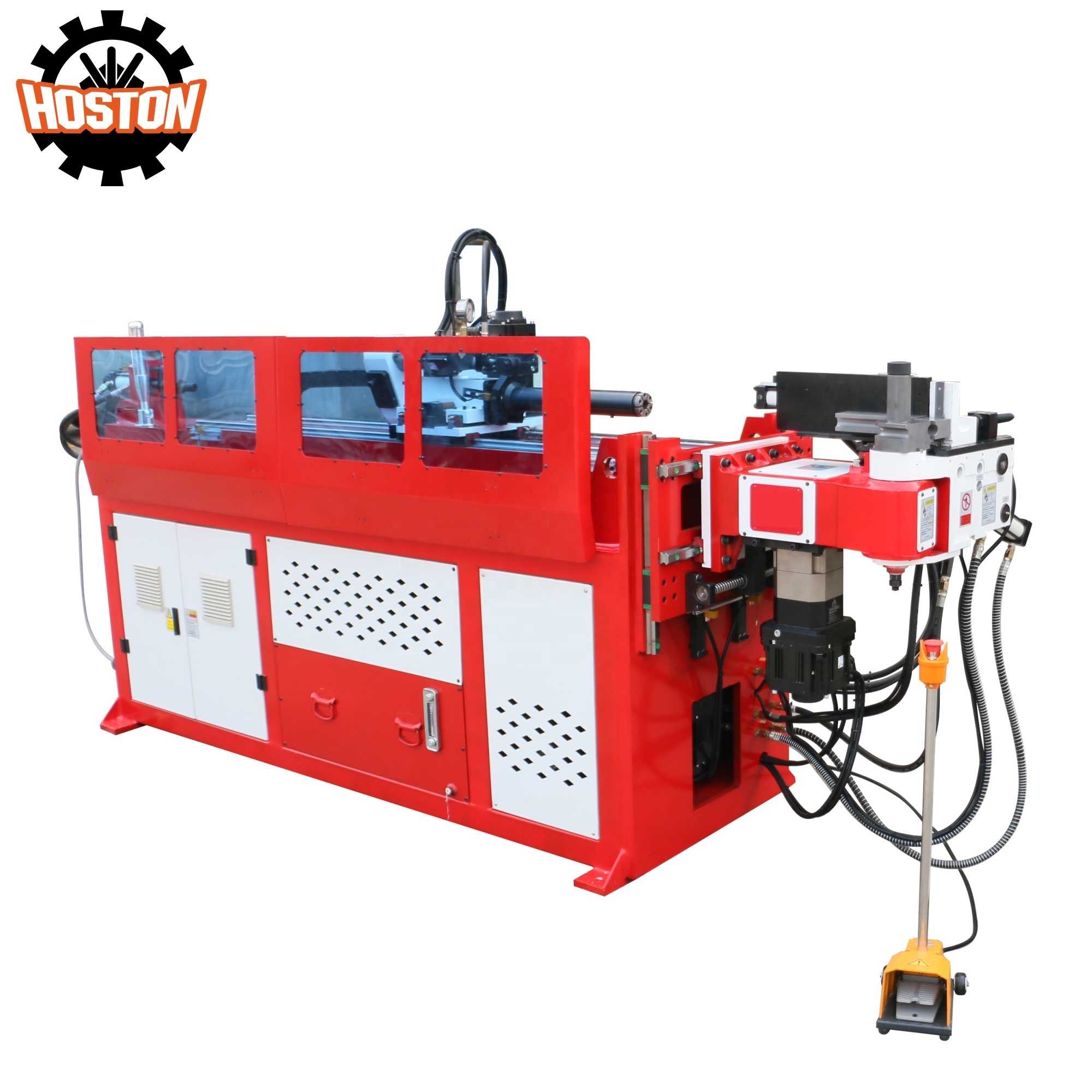

bending machine
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
China
-
Power (kW):
-
22
-
Weight (KG):
-
4800
-
Marketing Type:
-
New Product 2023
Product Paramenters
|
Model
|
|
DW-75CNC-2A
Hydr Bend
|
DW-75CNC-3A
Servo Bend
|
DW-89CNC-2A
Hydr Bend
|
DW-89CNC-3A
Servo Bend
|
|
|
Max. Tube o.d. Bneding Capacity
|
|
76.2mm
|
70mm
|
88.9mm
|
80mm
|
|
|
Max. Tube Wall Thickness
|
|
3.5mm
|
3mm
|
5.0mm
|
3.5mm
|
|
|
CLR Centerline Radius Range
|
|
50-350mm
|
50-350mm
|
80-400mm
|
80-400mm
|
|
|
Max. Bending Angle
|
|
190°
|
190°
|
190°
|
190°
|
|
|
Max. Mandrel working Distance
|
|
3300mm
|
3300mm
|
4000mm
|
4000mm
|
|
|
Processing Speed
|
Tube Feeding Speed
|
500mm/sec
|
500mm/sec
|
400mm/sec
|
400mm/sec
|
|
|
|
Tube Roration Speed
|
180°/sec
|
180°/sec
|
120°/sec
|
120°/sec
|
|
|
|
Tube Bending Speed
|
20°/sec
|
40°/sec
|
15°/sec
|
30°/sec
|
|
|
Repeatability
|
Tube Feeding Precision
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
|
|
|
Tube Roration Precision
|
±0.01°
|
±0.01°
|
±0.01°
|
±0.01°
|
|
|
|
Tube Bending Precision
|
±0.02°
|
±0.02°
|
±0.02°
|
±0.01°
|
|
|
Total Motor Power
|
|
11kw
|
22kw
|
15kw
|
30kw
|
|
|
Overall Weight
|
|
4000kg
|
4800kg
|
4500kg
|
5000kg
|
|
