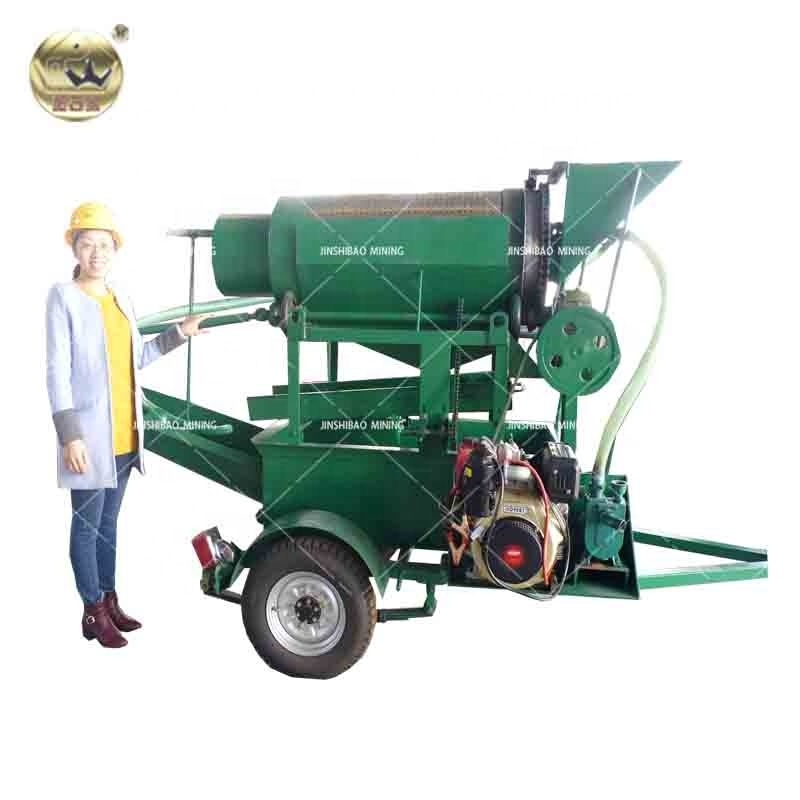

Portable Small Mini Trommel Gold Washing Plant for sale

Portable Small Mini Trommel Gold Washing Plant for sale

The Trommel for gold is self contained, and with its 1-5t/h capacity, it is ideal for testing gold values or for small production operations. The unique water supply and reclamation unit allows operation where water is not available.

A spray bar with its own adjustable water valve goes the length of the trommel. Next, the material approaches the 8mm holes where anything under 8mm gets washed down onto the oscillating sluice, and larger material works its way to the end of the trommel. A nugget trap will catch any heavies and the lighter material will go out the tail cone to the rock chute and discard tray. The oscillating sluice has settings for stationary, short, and long strokes. The removable sluice has artificial turf, riffles mounted on expanded metal and toggles to secure it onto the place. Any light material that gets washed off the sluice goes into the de-watering screw.

The simplicity of the Trommel for Gold makes it the leader in the field of small portable placer equipment. Industrially built, it is easy to maintain and powered by either an electric or diesel engine which is easily removable by removing the snap pin and sliding out the motor mount. It was designed that way so you can easily take it with you at the end of the day to cut down on theft. On engine runs both the gear reducer and water pump using a B-width belt. This Trommel for Gold is a positive chain drive.

Main configuration

• Trommel screen

The aperture size of the trommel screen could be customized as per your requirements.

• Mobile device

• Water pump

• Water storage tank (optional)

The Trommel for Gold recirculates approximately 100 gallons of water. You may need to add a little water due to evaporation and the wetness of the waste material. Drain plugs are in both the water tank and the de-watering screw. (Notes: The water storage tank and de-watering screw can be canceled if there are enough water supply.)

• De-watering screw (optional)

Using the de-watering screw is the most efficient way to remove solids from water and recirculate it.

• Oscillating sluice (optional)

• Diesel engine (It can be gasoline engine if you want)

• Lifting lugs

• Lighting

Working principle

The general operating flow of the Trommel for Gold is as below:

1st ----The raw ore are fed into the trommel through feeding hopper

2nd----The trommel rotates, and uppersizes are discharged from the tail of trommel, undersizes with water are guided onto the oscillating sluice

3rd---- The gold particles will be trapped in the gold mat while other materials go down to the de-watering screw

4th---- The solids will be spinned out by de-watering screw while the water will flow into the water tank.

Another one type of Gold Trommel Equipment for Washing Gold

There is also sluice box for this Gold Trommel Equipment for Washing Gold to collect heavy mineral.

This is for our Canadian customer. This equipment is finally taken in Africa.

General flow for alluvial gold processing

3. Features of Gold Trommel Equipment for Washing Gold

• Configured for economical & efficient classification, Screening and grading
• Heavy duty trommel drum with lifters at the front to facilitate material break up
• Screen replaceable for different mesh sizes
• Multiple screen size
• Easily changed screen plates
• Largest processing capacity in the industry
• Unique screen design, result in higher capacities, longer screen life and no material clogging
• Heavy duty feed hopper and extension
• Discharge chute
• Gear drive mechanism
• Variable speed drive mechanism

4. Working principle of Gold Trommel Equipment for Washing Gold

GT Series Gold Trommel Equipment for Washing Gold utilize Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.

Technical specification of Gold Trommel Equipment for Washing Gold
