Quick Details
-
Voltage:
-
110V/220V/380V/50-60Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Better Origin
-
Dimension(L*W*H):
-
1750*880*1450mm (L sealer)
-
Weight:
-
300 KG
-
Certification:
-
CE
-
Product name:
-
Automatic l bar sealing machine
-
Sealing time:
-
0.2-1s
-
Film thickness:
-
0.012-0.06mm
-
Packaging speed:
-
20-30pcs/min
-
Working air pressure:
-
5-6kg/c㎡
-
Film material:
-
POF, PE
-
Max packaging size:
-
L480mm x W320mm x H150mm
-
automatic L bar sealing machine:
-
automatic L bar sealing machine
-
L bar sealing machine:
-
L bar sealing machine
-
L bar sealer:
-
L bar sealer
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Bags, Film, Pouch, case
-
Packaging Material:
-
POF or PE
-
Driven Type:
-
Electric
-
Voltage:
-
110V/220V/380V/50-60Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Better Origin
-
Dimension(L*W*H):
-
1750*880*1450mm (L sealer)
-
Weight:
-
300 KG
-
Certification:
-
CE
-
Product name:
-
Automatic l bar sealing machine
-
Sealing time:
-
0.2-1s
-
Film thickness:
-
0.012-0.06mm
-
Packaging speed:
-
20-30pcs/min
-
Working air pressure:
-
5-6kg/c㎡
-
Film material:
-
POF, PE
-
Max packaging size:
-
L480mm x W320mm x H150mm
-
automatic L bar sealing machine:
-
automatic L bar sealing machine
-
L bar sealing machine:
-
L bar sealing machine
-
L bar sealer:
-
L bar sealer
Automatic L bar sealer L bar sealing machine and heat tunnel shrink wrapping machine
Features:
1. Adopt high quality transducer to control the conveying speed.
2. The stainless steel heater ensure the efficient and long service time.
3. Adopt planetary reduction gear and high power motor to ensure stable conveying without shaking.
4. Adopt large cooling fan to cool and shape products quickly after shrinking.
5. Sealing, cutting and shrinking in one time.
Specifications:
|
Model |
FQL-450A/DQL5545 Automatic L-Bar Sealer |
|
Voltage |
110V/220V/50-60Hz |
|
Power |
1.8KW |
|
Sealing time |
0.2-1s |
|
Film thickness |
0.012-0.06mm |
|
Packaging speed |
20-30pcs/min |
|
Working air pressure |
5.5kg/cm² |
|
Film material |
POF, PE |
|
Cutter size |
L550mm x W450mm |
|
Max packaging size |
L480mm x W320mm x H150mm |
|
Weight |
300kg |
|
Dimension |
L1750*W880*H1450mm |
|
Model |
BS-4522N/DSD4520 Shrink Packaging Machine |
|
Voltage |
380V/50Hz |
|
Power |
10KW |
|
Speed |
0-10m/min |
|
Conveyor load capacity |
10kg |
|
Tunnel size |
L1200*W450*H220mm |
|
Weight |
200kg |
|
Dimension |
L1700*W700*H1450mm |

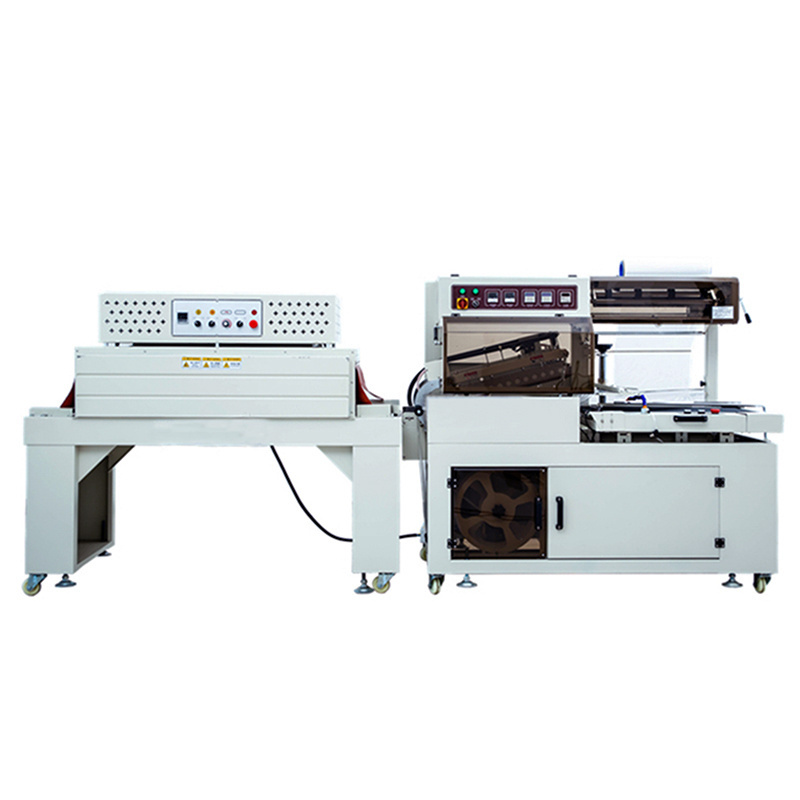

Photos of Automatic L bar sealer L bar sealing machine and heat tunnel shrink wrapping machine
:
