Quick Details
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Skyzone
-
Model Number:
-
SKY04O/SKY04X V2/SKY04X PRO
Product Description

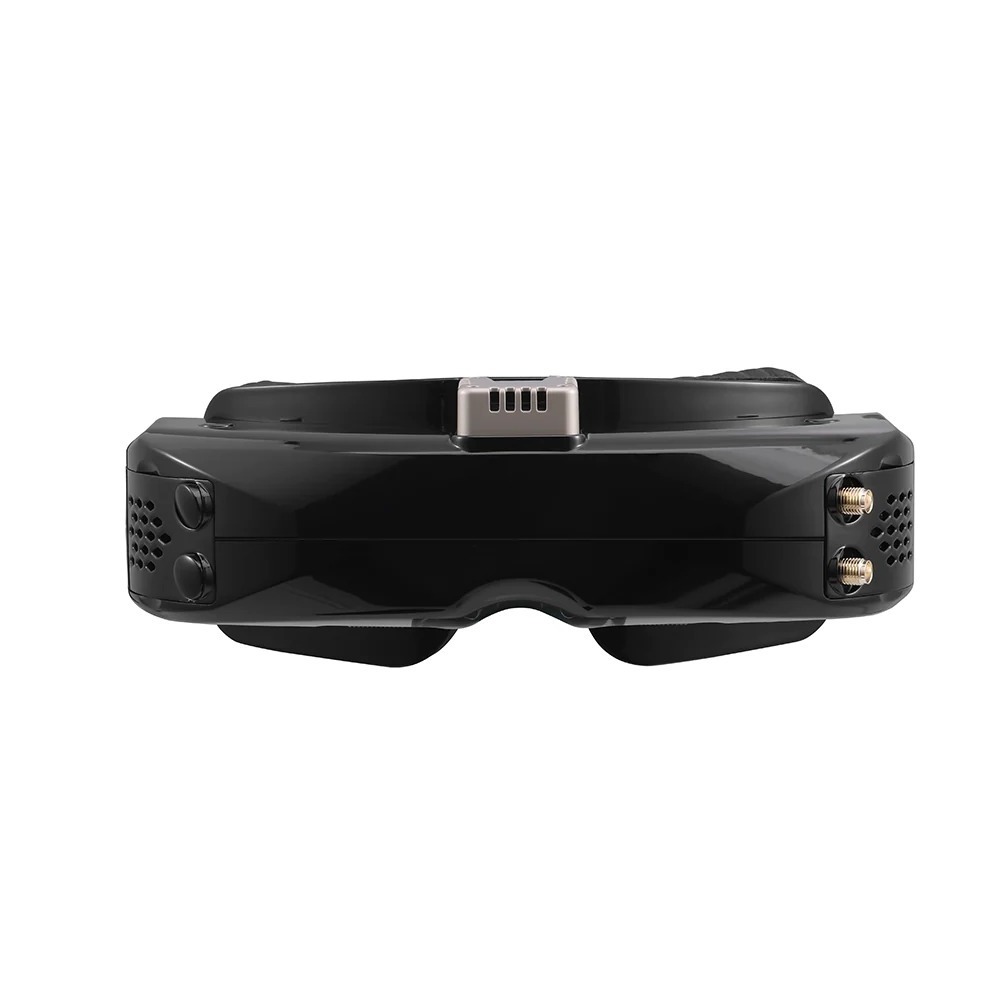

The SKYZONE SKY04L FPV Goggle is the First SKYZONE LCOS goggle with focus adjustment and analog and provides an immersive
experience for pilots and virtual reality players, so you can take your experience to the next level. With a steadyview V3.3
receiver and 1280*960 high-resolution screen, the goggles offer a vivid color and high contrast ratio crystal-clear picture and a
heightened viewing experience, so the pilot can see more details in the racing. Enjoy a comfortable fit and unparalleled visual
with these top-tier FPV goggles for RC FPV drones.
With a Steadyview V3.3 receiver, the receiver merges two signals into one, avoiding image tearing and rolling, making the image
more stable and clear in challenging conditions. The 04l-designed optics have a focus adjustment feature and 37 degrees Field of
view, giving pilots a more immersive FPV experience.
With the new 04l OS with 10 languages to set select, the pilot has no trouble with the menu system, and with the shuttle wheel and
new user interface, the pilot can set all the settings just by rolling the wheel without taking off the goggles. SKY04l could
power up by a power bank through the usb c port, but you must use USB A to C cable.
Feature:
* SteadyView receiver merges two signals into one, making the image more stable and clear in challenging conditions.
* Module bay, goggles have more capability to upgrade.
* Focus Adjustment, The new Optics have a large Field of View (37 degrees). and the Optics have a Focus adjustment feature
(-6~+2), no need diopter anymore.
* LCOS Screen, The 1280*960 screen has high resolution and vivid color, high contrast ratio, so pilots can see more details.
* Advanced Screen Settings, The aspect ratio can is switchable, and 4 Preset screen settings and 3 customized settings for
indoor, and outdoor flights or different weather.
* Shuttle Wheel Control, No more confusing multi-function button or 5-way Joy stick, with smooth and natural shuttle control,
easy to navigate.
* New User Interface with 10 languages, New UI with shuttle wheel, easy to navigate, 10 languages to choose from for local users.
* Built-in DVR
SKY04L Specifications:
Screen: LCOS
Resolution: 1280X960
FOV (Diagonal): 37°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
Language: 10 Language
Power Supply: DC6.5-25.2V/USB5V
Power Consumption: 720mAat12V
DVR: V2, H264, 60fps, MOV6Mbps, SD Card support up to128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g
SKY04X Specifications:
Screen: OLED
Resolution: 1280X960
FOV (Diagonal): 46°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
Language: 10 Language
Power Supply: DC6.5-25.2V/USB5V
Power Consumption: 720mAat12V
DVR: H264, 60fps, MOV6Mbps, SD Card support up to128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g
SKY04O Specifications:
Model: SKY04O
Screen: OLED
Resolution: 1024*768
FOV(Diagonal): 38°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable (Suitable for long-sighted and near-sighted people.)
Interpupillary distance (IPD): 58~71mm
Receiver : 5.8Ghz 48CH Receiver
3D Function: Side By Side half
Language: 10 Language
Power Supply: DC 6.5-25.2V/USB 5V
Power Consumption: 720mA @ 12V
DVR : H264, 60fps,MOV 6Mbps, SD Card support up to 128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Antenna Connector: SMA
Dimentions : 185*75*67mm
Weight: 262g
Package Included:
1x V3.3 Steadyview Receiver Module
2x Faceplate (wide and narrow)
1x Sponge with velcro
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8GHz 2dB antennas
1x Video/Audio Cable
1x USB-C Cable
1x User Manual
