Quick Details
-
Model Number:
-
SB-M-30t
-
Usage:
-
truck scales, unattened scales
-
Mounting Type:
-
By hand
-
Material:
-
Alloy steel
-
Sealing class:
-
IP68
-
Operating temperature range:
-
-20℃~+70℃
-
Accuracy Class:
-
C3
-
Rated load:
-
20t, 30t, 40t, 50t, 100t
-
Sensitivity:
-
2.0±0.004 mV/V
-
Theory:
-
pressure
Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NanHeng
-
Model Number:
-
SB-M-30t
-
Usage:
-
truck scales, unattened scales
-
Mounting Type:
-
By hand
-
Material:
-
Alloy steel
-
Sealing class:
-
IP68
-
Operating temperature range:
-
-20℃~+70℃
-
Accuracy Class:
-
C3
-
Rated load:
-
20t, 30t, 40t, 50t, 100t
-
Sensitivity:
-
2.0±0.004 mV/V
-
Theory:
-
pressure

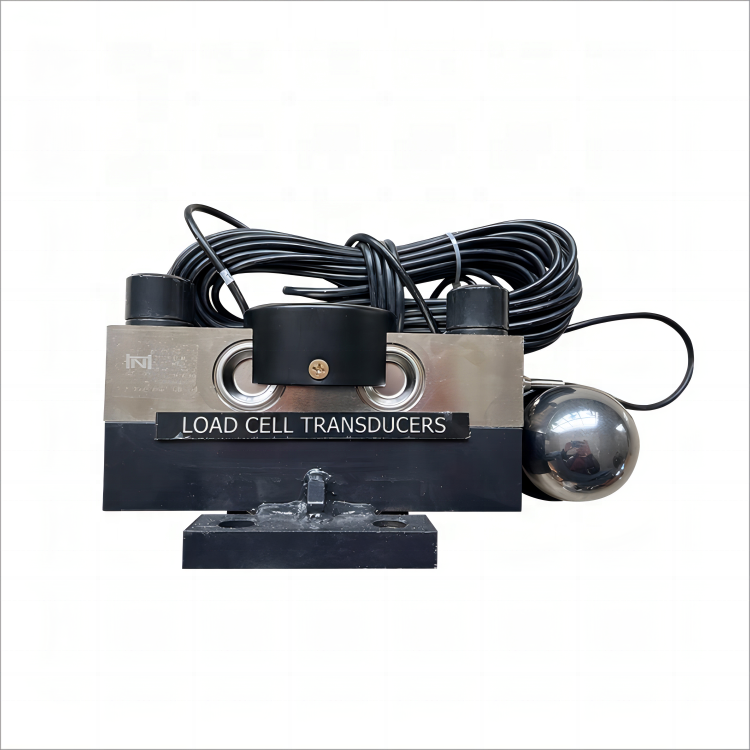

High precision SB-M bridge type weigh bridge load cell
Products Description
Details Images
Product Paramenters
|
Technical parameters
|
unit
|
Technical index
|
|
Loading rating
|
T
|
20,30,40,50,100
|
|
Sensitivity
|
mV/V
|
2.0±0.004
|
|
comprehensive error
|
%F.S
|
±0.020
|
|
Creep
|
%F.S/30min
|
±0.020
|
|
Zero point balance
|
%F.S
|
±1
|
|
Zero temperature influence
|
%F.S/10℃
|
±0.020
|
|
Output temperature effect
|
%F.S/10℃
|
±0.020
|
|
Input impedance
|
Ω
|
762~785
|
|
Output impedance
|
Ω
|
700±2
|
|
Insulation resistance
|
MΩ
|
≥5000
|
|
Operating temperature range
|
℃
|
-20~+70
|
|
Safe overload
|
%F.S
|
150
|
|
Extreme over load
|
%F.S
|
200
|
|
Recommended excitation voltage
|
V DC
|
5~10
|
|
Maximum excitation voltage
|
V DC
|
15
|
|
Sealing level
|
IP68
|
|
|
Material
|
40crNiMoA Alloy steel
|
|
The performance advantage of Guangdong Nanfang Weighing Apparatus Factory load cell (sensor), we use famous German imported chip HBM, advanced production technology and quality control system, to ensure the accuracy and reliability of the product, can meet a variety of performance, which can be maintained in harsh environments and good working condition. High precision, simple structure, suitable for frequent crushing of heavy-duty vehicles, adaptbility strong, can work stable in harsh environments such as high and low temperature, humid heat, and corrosion.lightening protection is better.
Products real shot
