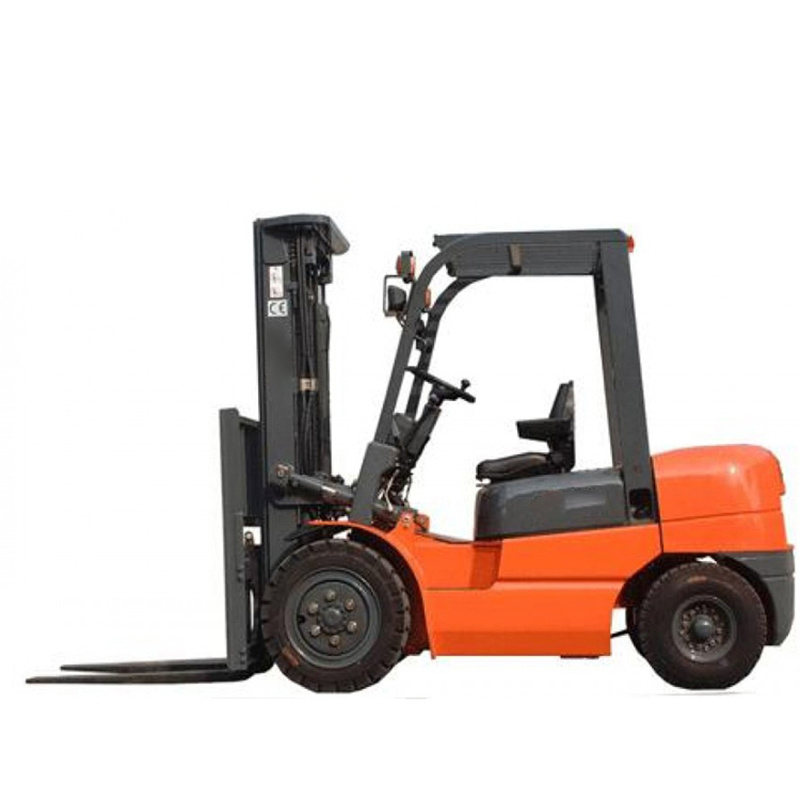

CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck
CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck

CPQYD35 3.5Ton Gasoline/Lpg Forklift Truck

FOB Reference Price: Get Latest Price
≥1 Sets
US $7500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
EVANGEL
Fork Length:
1070mm
Fork Width:
125mm
Overall Dimensions:
2695X1225X2090mm
Weight (KG):
4680 kg
Type:
Powered Pallet Truck
Fork size:
1220*125*45
Max.lifting height:
6000mm(optional)
Engine:
Quanchai
operating weight:
4700kg
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
After-sales Service Provided:
Online support
Marketing Type:
New Product 2020
Certification:
ISO9001,CE

Quick Details

Min. Lifting Height:
120MM, 120mm
Warranty:
1 Year
Place of Origin:
Anhui, China
Brand Name:
EVANGEL
Fork Length:
1070mm
Fork Width:
125mm
Overall Dimensions:
2695X1225X2090mm
Weight (KG):
4680 kg
Type:
Powered Pallet Truck
Fork size:
1220*125*45
Max.lifting height:
6000mm(optional)
Engine:
Quanchai
operating weight:
4700kg
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
After-sales Service Provided:
Online support
Marketing Type:
New Product 2020
Certification:
ISO9001,CE

Product Description

Specifications of High quality  3.5 ton forklift price FL35 LPG Forklift  Truck on Sale

T his new series forklift trucks that made with the latest technical design provide you excellent operating performance. HELI forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier.

Environmental Friendly

- The emission meets EC and EPA new regulation.

- High efficiency hydraulic system to lower the fuel consumption.

- Using environmental friendly material.

- Damping device on the mast to reduce impact and vibration.

- Sound insulating and absorbing device are used to reduce the noise.

Ergonomics design

- Using power braking system to reduce footplate strength.

- Control lever right located to effectively reduce drivers arm tiredness.

- Dual combined switch lever as a car to enable easy operating.

- Wide mast with good visibility.

- Wide space for boarding and driving , increasing leg space.

- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.

Safety performance

- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.

- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.

- Safety device in mast hydraulic system prevents material falling down in case of hose broken.

- High pressure hose is designed far away from the driver.

- Safety wire harness, using waterproof plug

Main technical parameters of High quality  3.5 ton forklift price FL35 LPG Forklift  Truck on Sale

Model CPCD30
Power type Diesel
Rated capacity kg 3000
Load center mm 500
Lift height mm 4500
Free lift height mm 145
Fork size mm 1220×125×45
Mast tilt angle deg 6/12
Front overhang mm 482


Overall
Length to face of forklift mm 2695
Overall width mm 1225
Mast lowerd height mm 2070
Mast extended height mm 4250
Overhead guard height mm 2090
Turning radius mm 2420
Min.right angle aisle width mm 2885


Speeds
Drive speeds km/h 18/19.5
Lifting speeds mm/s 470/520
Lowering speeds mm/s ≤600
Max.grade ability % 15
Total weight kg 4350

Tires
Frot 28*9-12PR
Rear 6.5-10-10PR
Wheeslbase mm 1700

Tread
Front mm 1000
Rear mm 970
Hold under mast mm 110


Engine
Model Xinchang 490BPG
Rated output kw/rpm 37/2650
Rated torque N.m/rpm 148/2000
No.of cylinder 4
Displacement L 2.54
Fuel tank capacity L 52

Other models of HELI forklift
